Real-time color management and conversion device

Advanced LUT processing for precise color correction

Supports 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI signals

HDR and SDR color conversions with Colorfront Engine

33-point 3D LUT support with tetrahedral interpolation

Up to 4K/UltraHD resolution at 60p

Integrated frame sync and video processing

Multiple user-configurable presets for quick access

Flexible color pipeline with support for various workflows

Web-based UI for remote control and monitoring

Compact, portable design for easy integration

Ideal for broadcast, production, and post-production applications

Real-time color management and conversion device

Advanced LUT processing for precise color correction

Supports 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI signals

HDR and SDR color conversions with Colorfront Engine

33-point 3D LUT support with tetrahedral interpolation

Up to 4K/UltraHD resolution at 60p

Integrated frame sync and video processing

Multiple user-configurable presets for quick access

Flexible color pipeline with support for various workflows

Web-based UI for remote control and monitoring

Compact, portable design for easy integration

Ideal for broadcast, production, and post-production applications

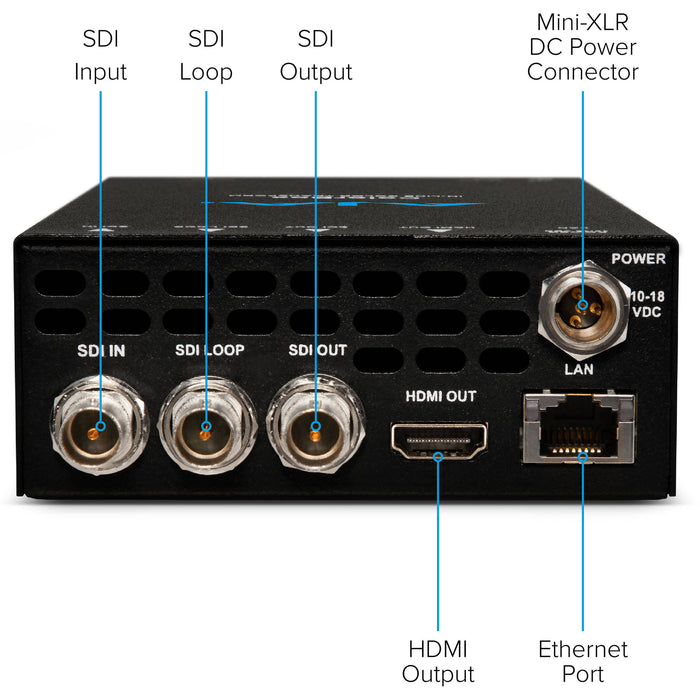

Video Inputs:

1x 12G-SDI BNC

Supports 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI

Video Outputs:

1x 12G-SDI BNC (Loop Output)

1x 12G-SDI BNC (Processed Output)

1x HDMI 2.0 Output

Supported Resolutions:

Up to 4K/UltraHD at 60p

2K, HD, and SD

Color Processing:

33-point 3D LUT support

Tetrahedral LUT interpolation

Colorfront Engine for advanced color management

Conversion Support:

HDR to SDR, SDR to HDR

PQ, HLG, and SDR formats

BT.709, BT.2020, and BT.2100 color spaces

Audio Support:

16-channel embedded SDI audio passthrough

Control Interface:

Ethernet for web-based UI and remote management

USB for firmware updates and configuration

Power Supply:

100-240V AC, 50/60 Hz with external adapter

12W Max Power Consumption

Dimensions (W x D x H):

5.7" x 5.1" x 1.1" (145 x 130 x 28 mm)

Weight:

Approximately 1.1 lb (0.5 kg)

Operating Temperature:

32 to 104°F (0 to 40°C)

Storage Temperature:

-40 to 140°F (-40 to 60°C)

Operating Humidity:

10-90% non-condensing
