Fanless Design – Silent operation for noise-sensitive environments.

12G-SDI Support – High-bandwidth SDI for UHD and HDR workflows.

Multi-Channel I/O – Supports multiple simultaneous video streams.

PCIe Gen 3 Interface – High-speed data transfer for professional applications.

Low Latency – Real-time performance for live production and post-production.

HDR & High Frame Rate Support – Ensures high-quality video capture and playback.

Flexible Format Support – Compatible with various SDI formats, including 4K and HD.

Reliable Performance – Built for demanding broadcast, post, and live event environments.

Software Compatibility – Works with popular video editing and broadcast applications.

Fanless Design – Silent operation for noise-sensitive environments.

12G-SDI Support – High-bandwidth SDI for UHD and HDR workflows.

Multi-Channel I/O – Supports multiple simultaneous video streams.

PCIe Gen 3 Interface – High-speed data transfer for professional applications.

Low Latency – Real-time performance for live production and post-production.

HDR & High Frame Rate Support – Ensures high-quality video capture and playback.

Flexible Format Support – Compatible with various SDI formats, including 4K and HD.

Reliable Performance – Built for demanding broadcast, post, and live event environments.

Software Compatibility – Works with popular video editing and broadcast applications.

Video Formats Supported:

8K (8192 x 4320p): 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps

UltraHD2 (7680 x 4320p): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

4K (4096 x 2160p) & UltraHD (3840 x 2160p): 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps

2K (2048 x 1080p) & HD (1920 x 1080p): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

HD (720p): 50, 59.94, 60 fps

SD (625i, 525i): 50, 59.94 fps

Note: 8K/UltraHD2 & High Frame Rate support depends on host system capabilities.

Video Inputs and Outputs:

Four bidirectional 12G-SDI HD-BNC connections, supporting:

Bit depth support depends on software compatibility.

Audio:

16-channel, 24 & 16-bit SDI embedded audio, 48 kHz sample rate, synchronous

Reference Input:

Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) via 1x HD-BNC on PCIe bracket

Reference input terminated into 75 ohms when Genlock is set to Ref In

Timecode:

LTC timecode input via 2-pin header on PCIe card (low profile & full height models)

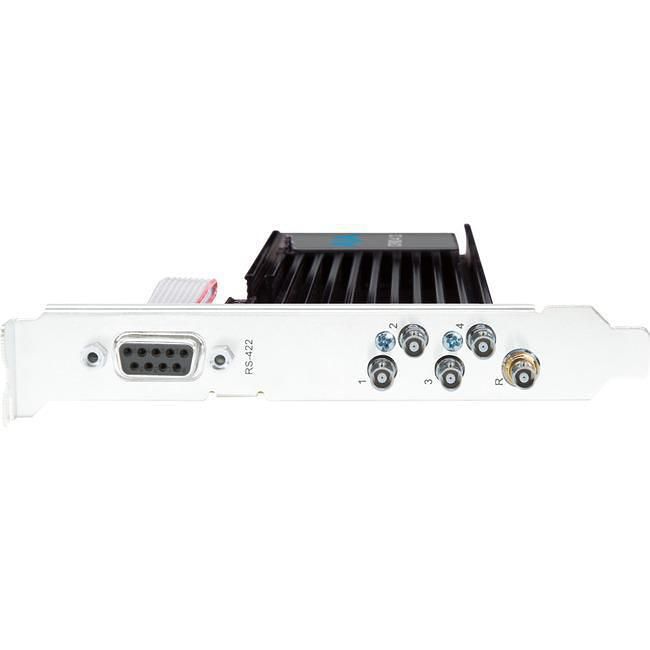

LTC timecode input via HD-BNC Ref In connector (switchable) on PCIe bracket (full height models only)

Machine Control:

RS-422, Sony 9-pin protocol via header on PCIe card (low profile & full height models)

RS-422 via port on PCIe bracket connected to header via DB9 cable (full height models only)

Electrical Interface:

8-lane PCIe 3.0

Physical Dimensions:

Low profile models: 0.75" x 7.0" x 3.15" (19 x 178 x 80 mm)

Full height models: 0.75" x 7.0" x 4.75" (19 x 178 x 121 mm)

Weight:

PCIe Card: 0.6 lbs (0.3 kg)

Cables (all combined): 0.6 lbs (0.3 kg)

Power:

25W typical, 32W maximum

PC Internal ATX Power Connector (Molex p/n 45559-0002)

Note: Corvid 44 12G can use either PCIe power from a 6-pin ATX connector or the PCIe slot.

Environmental:

Operating Temperature: 0 to 40°C (32 to 104°F)

Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)

Cooling & Noise:

Passive cooling requires in-host/chassis airflow of minimum 150 LFM (linear feet per minute) at 30°C

Fanless, ultra-quiet (virtually silent) operation
