AJA DisplayPort to SDI Mini-Converter with ROI Scaling
Availability:
In stock 3-5 days
Original price
$1,245.00
-
Original price
$1,245.00
Original price
$1,245.00
$1,245.00
-
$1,245.00
Current price
$1,245.00
| /
MODEL: ROI-DP
SKU: ROI-DP

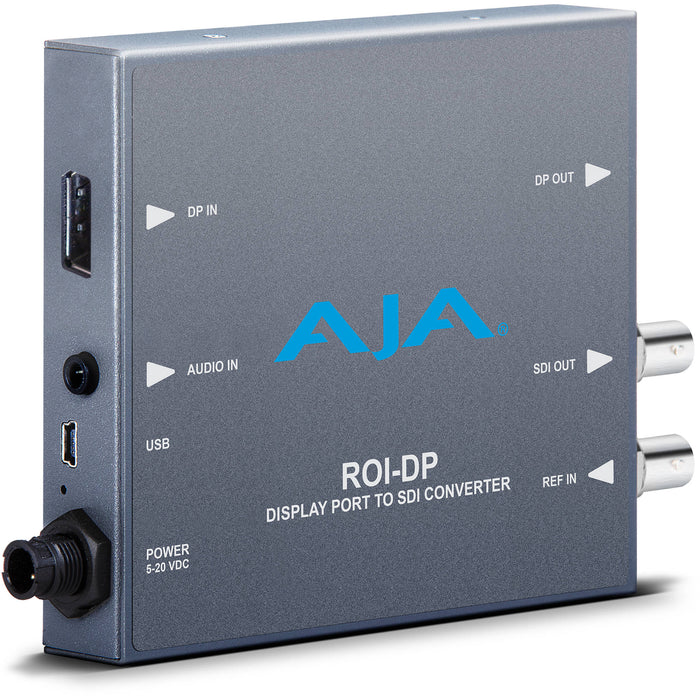

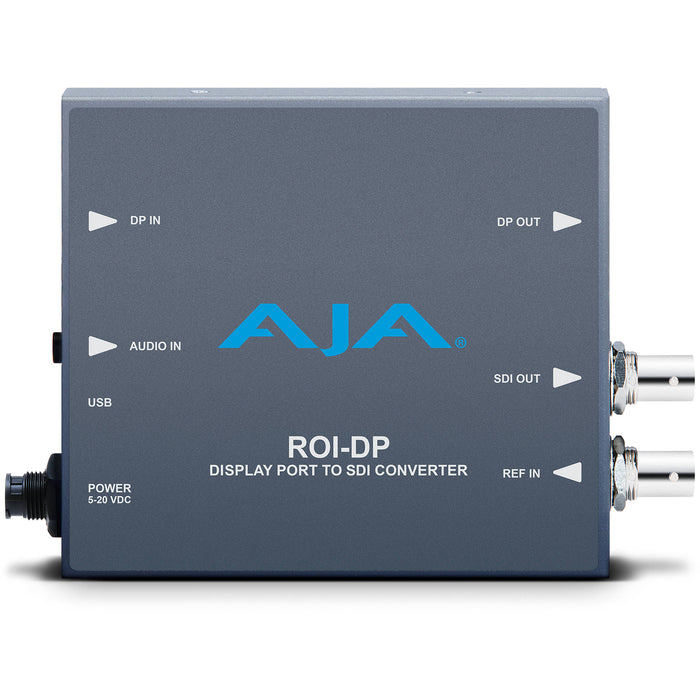

The AJA ROI-DP is a compact mini-converter that converts DisplayPort sources to SDI with real-time Region of Interest (ROI) scaling. It enables precise image extraction, resizing, and aspect ratio control, making it ideal for integrating computer displays into professional video workflows with embedded audio and genlock support.
- Converts DisplayPort to SDI output
- Real-time Region of Interest (ROI) scaling
- Supports resolutions up to 2560x1600
- Aspect ratio, scaling, and positioning control
- Frame rate conversion and up/down scaling
- Embedded audio from DisplayPort or analog input
- HDMI and SDI simultaneous outputs
- Genlock input for signal synchronization
- USB port for configuration via AJA Mini-Config
- Locking power connector
- Compact and durable design
- Universal power supply included
- Video Input: 1x DisplayPort (Full-size)
- Video Outputs: 1x SDI (BNC), 1x HDMI (Type A)
- Supported Input Resolutions: Up to 2560x1600 @ 60 Hz
- Region of Interest: Real-time ROI scaling and positioning
- Scaling: Up/down/cross conversion with aspect ratio control
- Frame Rate Conversion: Yes
- Audio Inputs:
- Embedded DisplayPort audio (up to 8 channels)
- 2-channel analog audio (3.5mm TRS input)
- Audio Outputs: Embedded SDI and HDMI audio (user selectable)
- Genlock Input: 1x Reference input (BNC), blackburst or tri-level sync
- Control Interface: USB port for configuration via AJA Mini-Config software
- Power: 5–20 VDC, locking power connector (universal power supply included)
- Dimensions: 5.8" x 3.1" x 1.0" (147 mm x 79 mm x 25 mm)
- Weight: 0.6 lb (0.27 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Humidity: 10% to 90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
