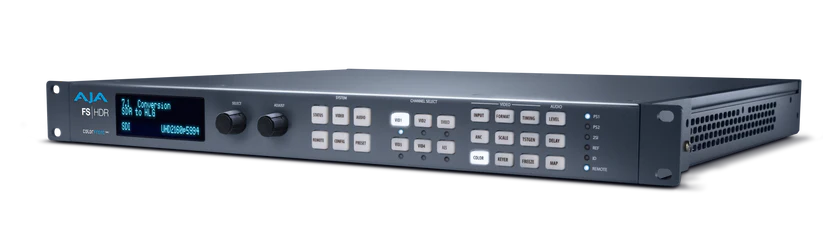

Real-time HDR/WCG converter and frame synchronizer

Supports 4K/UltraHD, 2K, and HD video formats

Extensive HDR and SDR conversion with color gamut mapping

Single-channel 4K/UltraHD or four-channel 2K/HD processing

Supports PQ, HLG, and SDR formats

LUT-based color and look management

Up, down, cross-conversion capabilities

Frame sync and frame rate conversion

Flexible connectivity with 12G-SDI, 3G-SDI, HDMI, and fiber options

Built-in web interface for remote control and monitoring

Compatible with Colorfront Engine for advanced color management

Ideal for live broadcast, production, and post-production environments

Real-time HDR/WCG converter and frame synchronizer

Supports 4K/UltraHD, 2K, and HD video formats

Extensive HDR and SDR conversion with color gamut mapping

Single-channel 4K/UltraHD or four-channel 2K/HD processing

Supports PQ, HLG, and SDR formats

LUT-based color and look management

Up, down, cross-conversion capabilities

Frame sync and frame rate conversion

Flexible connectivity with 12G-SDI, 3G-SDI, HDMI, and fiber options

Built-in web interface for remote control and monitoring

Compatible with Colorfront Engine for advanced color management

Ideal for live broadcast, production, and post-production environments

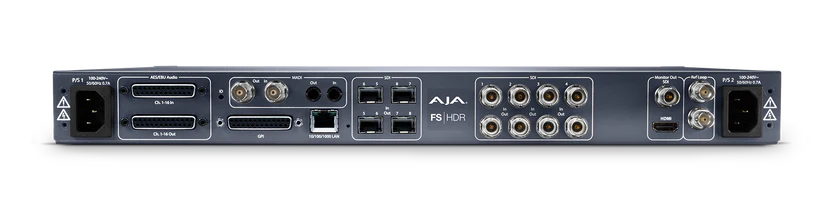

Video Inputs:

4x 3G-SDI BNC (12G-SDI support with optional fiber)

HDMI 2.0 (up to 4K/UltraHD)

Video Outputs:

4x 3G-SDI BNC (12G-SDI support with optional fiber)

HDMI 2.0

Supported Video Formats:

4K/UltraHD, 2K, and HD

SDR, PQ, HLG, and other HDR formats

Color Management:

Colorfront Engine for real-time color processing

3D LUT support

Audio Support:

16-channel embedded audio per SDI

8-channel embedded audio on HDMI

Control Interface:

Ethernet for web-based UI and remote control

GPI/O for automation

Frame Synchronization:

Full-frame sync and timing adjustment

Conversion Capabilities:

Up, down, cross-conversion

HDR to SDR and vice versa

Power Supply:

Dual redundant power supplies

Dimensions (W x D x H):

1RU rackmount form factor (19" x 10" x 1.75")

Weight:

Approximately 7.9 lb (3.6 kg)

Operating Temperature:

32 to 104°F (0 to 40°C)

Storage Temperature:

-40 to 140°F (-40 to 60°C)

Operating Humidity:

10-90% non-condensing
