MODEL: HA5-12G
SKU: HA5-12G

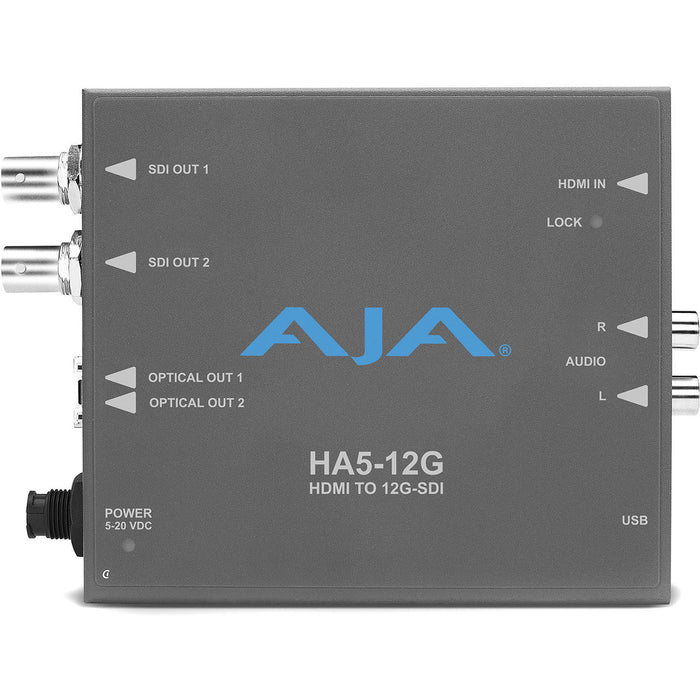

The AJA HA5-12G is a compact HDMI 2.0 to 12G-SDI mini-converter designed for professional video workflows. It converts a single HDMI 2.0 input into two 12G-SDI outputs, supporting up to DCI 4K60 resolution. With features like HDR support, EDID emulation, and audio embedding from HDMI or analog sources, it ensures high-quality signal conversion for broadcast and production environments. The HA5-12G-T variant includes an integrated fiber transmitter, extending 12G-SDI signals over long distances up to 10 km via single-mode fiber.
- Converts HDMI 2.0 to dual 12G-SDI outputs
- Supports up to DCI 4K/60p resolution
- HDR support including HDR10 and HLG
- Integrated audio embedding from HDMI or analog
- EDID emulation for HDMI source compatibility
- Locking HDMI connector for secure connections
- USB port for configuration via AJA Mini-Config
- Compact and durable design
- Optional fiber output (HA5-12G-T model)
- Universal power supply included
- Video Input: 1x HDMI 2.0b (Type A connector)
- Video Outputs: 2x 12G-SDI (BNC connectors)
- Supported Resolutions:
- DCI 4K: 4096 x 2160p at 60/59.94/50/30/29.97/25/24/23.98 fps
- UHD 4K: 3840 x 2160p at 60/59.94/50/30/29.97/25/24/23.98 fps
- 2K: 2048 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 fps
- HD: 1920 x 1080p/i at 60/59.94/50 fps
- HD: 1280 x 720p at 60/59.94/50 fps
- SD: 720 x 576p/i at 50 fps, 720 x 480p/i at 59.94 fps
- Color Sampling: YCbCr 4:2:2/4:4:4/4:2:0, RGB 4:4:4 (SMPTE or full-level)
- Bit Depth: 8-, 10-, 12-bit (HFR 4K/UHD 4:4:4 limited to 8-bit)
- HDR Support: HDR InfoFrame decoder as defined in CTA-861-G and HDMI v2.0b
- Audio Input:
- Embedded HDMI audio: up to 8 channels
- Analog audio: 2-channel RCA input
- Audio Output: Embedded SDI audio: up to 8 channels
- Additional Features:
- EDID emulation for HDMI source compatibility
- Two-Sample Interleave (2SI) 4K/UHD source mapping
- Simple Frame Rate Conversion (FRC) between fractional and integer rates
- USB port for configuration via AJA Mini-Config software
- Locking HDMI connector for secure connections
- Power: 5–16 VDC (universal power supply included)
- Dimensions: 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
- Weight: 0.5 lb (0.23 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Humidity: 10% to 90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
