Portable, stand-alone device with 3G-SDI and HDMI video I/O

Encodes up to 1080p60 in H.264/MPEG-4

Simultaneous streaming to two separate destinations

Picture-in-Picture (PiP) streaming/recording from multiple input sources

Two-channel stereo audio with optional four-channel audio for multilingual support

Optional PlayToStream feature for streaming pre-recorded programs

Analog stereo audio output with front panel LED audio meters

Data rates from 100 kbps to 20 Mbps in MPEG-4

Recording to SD cards, USB storage, or NFS/CIFS/SMB network volumes

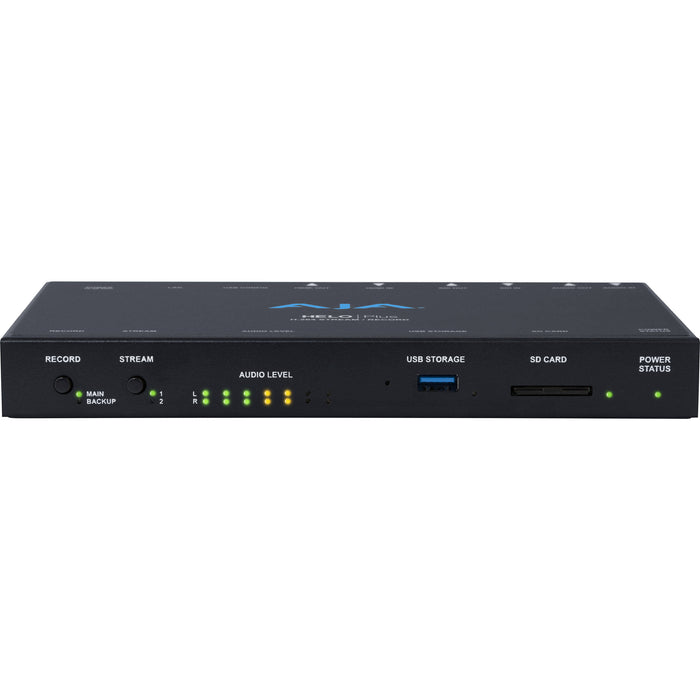

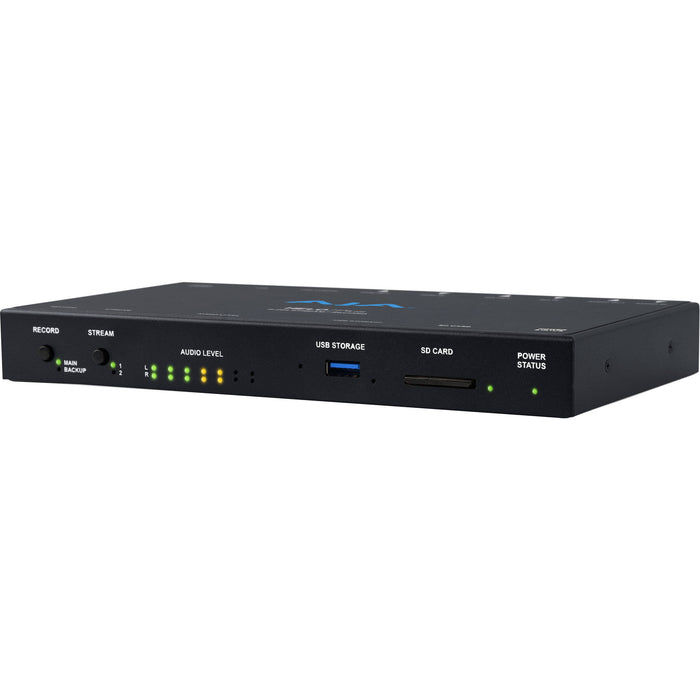

Front-mounted USB and SD card slots for external storage

Supports RTP/UDP, RTSP, RTMP, RTMPS, HLS, and Unicast streaming protocols

SRT compatibility in Caller and Listener modes

AV Mute with user-uploaded graphics for pre-live feeds

Group control for multiple HELO Plus and Ki Pro devices

Multi-language user interface with English, Japanese, Korean, and Chinese options

Three-year warranty

Portable, stand-alone device with 3G-SDI and HDMI video I/O

Encodes up to 1080p60 in H.264/MPEG-4

Simultaneous streaming to two separate destinations

Picture-in-Picture (PiP) streaming/recording from multiple input sources

Two-channel stereo audio with optional four-channel audio for multilingual support

Optional PlayToStream feature for streaming pre-recorded programs

Analog stereo audio output with front panel LED audio meters

Data rates from 100 kbps to 20 Mbps in MPEG-4

Recording to SD cards, USB storage, or NFS/CIFS/SMB network volumes

Front-mounted USB and SD card slots for external storage

Supports RTP/UDP, RTSP, RTMP, RTMPS, HLS, and Unicast streaming protocols

SRT compatibility in Caller and Listener modes

AV Mute with user-uploaded graphics for pre-live feeds

Group control for multiple HELO Plus and Ki Pro devices

Multi-language user interface with English, Japanese, Korean, and Chinese options

Three-year warranty

Video Formats Supported:

1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1080i: 50, 59.94, 60 fps

720p: 50, 59.94, 60 fps

SD (525i, 625i)

Video Encoding Parameters:

Bitrate: 100 kbps to 20 Mbps

Resolution: Up to 1080p60

Profiles: Supports Baseline, Main, and High

Audio Encoding Parameters:

Bitrate: 32 kbps to 256 kbps

Sample Rate: 48 kHz

Channels: 2-channel stereo

Codec: MPEG-4 AAC-LC

Protocols Supported:

RTMP, RTMPS, RTMPT, RTMPE, RTMPTE, RTMPTS

RTSP, HLS

RTP-TS/UDP-TS Unicast and Multicast

SRT (caller mode)

Storage Options:

USB Port: 1x USB 2.0/3.0 (supports exFAT or FAT32)

SD Card Slot: Supports SD, SDHC, SDXC cards (exFAT)

Network Storage: Mounted Network Share (SMB or NFS)

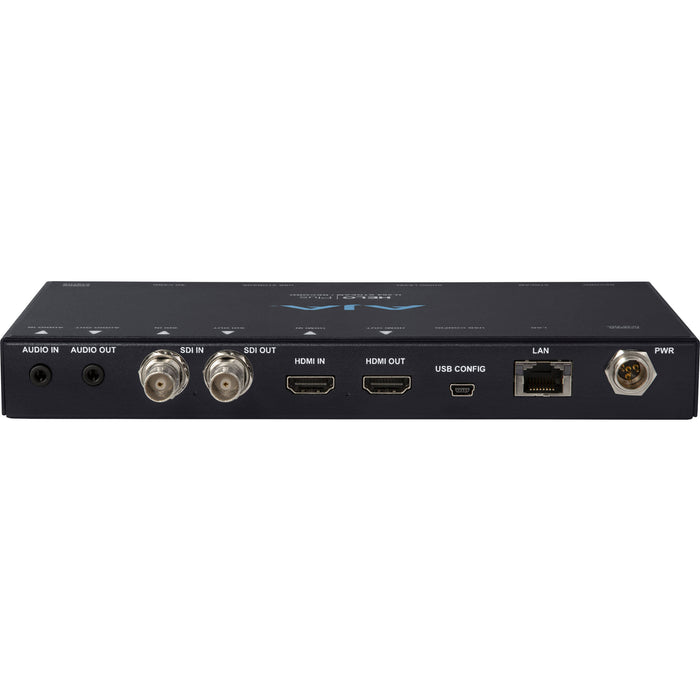

Video Inputs:

1x 3G-SDI (SMPTE-259/292/296/424, 10-bit)

1x HDMI (v1.4a, RGB or YCbCr)

Video Outputs:

1x 3G-SDI Loop-Through

1x HDMI Loop-Through

Audio Inputs & Outputs:

Embedded Audio: SDI and HDMI

Analog Audio Output: 3.5mm stereo mini-jack

Network Connectivity:

1x Gigabit Ethernet (10/100/1000 Base-T)

Remote Web UI for Control & Configuration

Power & Environmental:

Power Input: 12V DC (AC adapter included)

Power Consumption: 7W max

Operating Temperature: 0°C to 40°C
