AJA Hi5-4K-Plus Mini-Converter – Professional 4K/UltraHD SDI to HDMI 2.0 converter for high-quality video monitoring with HDR support.

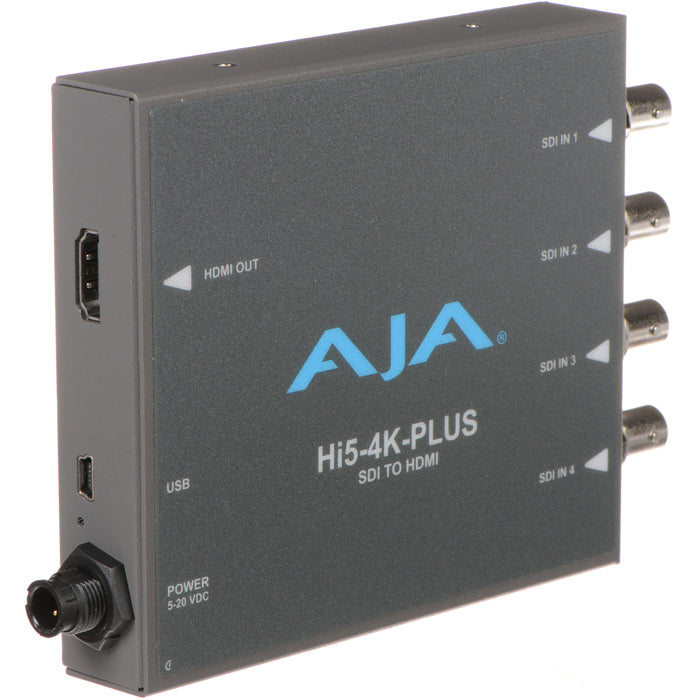

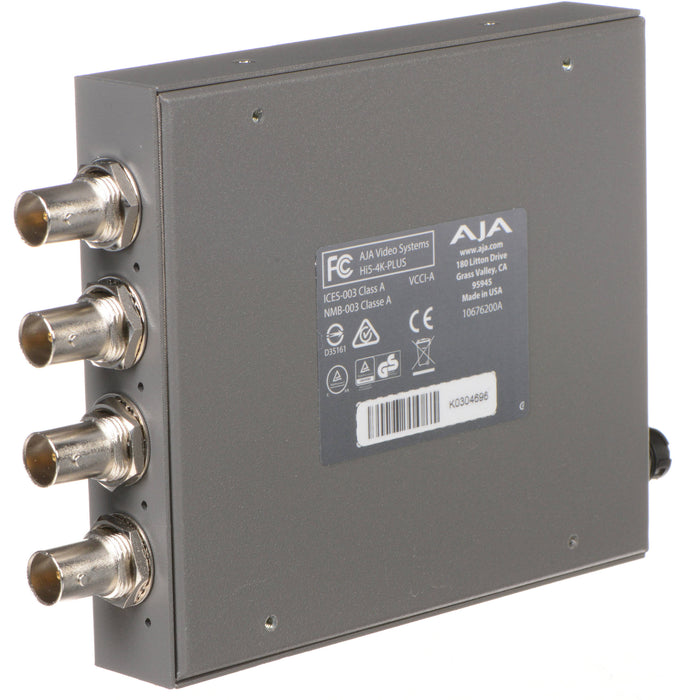

AJA Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter

by AJA
Availability:
In stock 3-5 days
$835.00 - $835.00
$835.00
$835.00 - $835.00
$835.00

MODEL: HI5-4K-PLUS

SKU: HI5-4K-PLUS


  • Overview
  • Features
  • Specifications

The AJA Hi5-4K-Plus is a high-performance mini-converter that converts 4K/UltraHD 3G-SDI signals to HDMI 2.0, supporting full 60p frame rates and HDR. It's designed for professional workflows requiring high-quality video monitoring on HDMI displays.

  • Converts 4K/UltraHD 3G-SDI to HDMI 2.0
  • Supports up to 4K/UltraHD 60p
  • 4x 3G-SDI inputs for full 4K compatibility
  • HDMI 2.0 output with HDR10 and HLG support
  • Embedded audio support
  • HDCP 2.2 support on HDMI output
  • User-configurable via USB and AJA Mini-Config software
  • Compact, portable design
  • Locking power connector
  • Universal power supply included
  • Video Input: 4x 3G-SDI BNC connectors (Quad-Link or 4K single-link)
  • Video Output: 1x HDMI 2.0 (Type A connector)
  • Supported Resolutions: Up to 4K/UltraHD 60p
  • SDI Standards: 3G-SDI Level A/B, 1.5G-SDI
  • Audio Support: 16-channel embedded SDI audio, 8-channel HDMI audio
  • HDR Support: HDR10 and HLG via HDMI
  • HDCP Support: HDMI output supports HDCP 2.2
  • Control Interface: USB port for configuration via AJA Mini-Config
  • Power: 5-20V DC, locking power connector
  • Dimensions: 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
  • Weight: 0.5 lb (0.23 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
