Multi-channel H.265 (HEVC) and H.264 (AVC) recording

Supports up to four simultaneous HD or SD recordings

3G-SDI and HDMI inputs for flexible connectivity

USB and network storage support for recording and transfer

Redundant recording for enhanced data security

Independent channel recording with individual settings

High-quality 10-bit 4:2:2 or 8-bit 4:2:0 encoding options

Genlock and timecode sync for multi-camera workflows

Compact, rack-mountable 1RU design

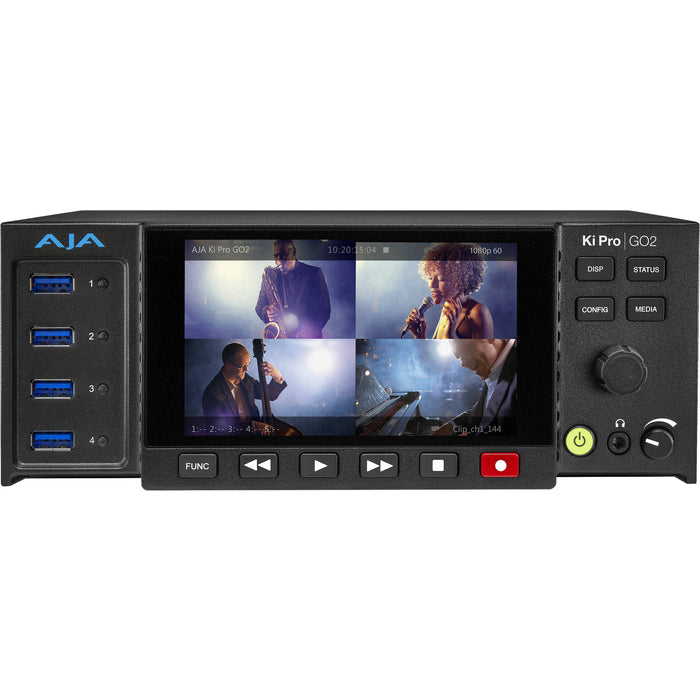

Front-panel control with a clear display for easy operation

Web-based UI for remote configuration and control

Flexible audio recording with embedded and analog inputs

Multi-channel H.265 (HEVC) and H.264 (AVC) recording

Supports up to four simultaneous HD or SD recordings

3G-SDI and HDMI inputs for flexible connectivity

USB and network storage support for recording and transfer

Redundant recording for enhanced data security

Independent channel recording with individual settings

High-quality 10-bit 4:2:2 or 8-bit 4:2:0 encoding options

Genlock and timecode sync for multi-camera workflows

Compact, rack-mountable 1RU design

Front-panel control with a clear display for easy operation

Web-based UI for remote configuration and control

Flexible audio recording with embedded and analog inputs

Video Formats Supported:

1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1080i at 50, 59.94, 60 fps

1080PsF at 23.98, 24, 25, 29.97, 30 fps

720p at 50, 59.94, 60 fps

525i at 59.94 fps

625i at 50 fps

Video Codec Support:

H.265/HEVC up to 15 Mbps recorded output

H.264/MPEG-4 up to 25 Mbps recorded output

Audio Codec Support:

Four audio compression codecs

2-channel audio per stream

Up to 320 kbps

MPEG-4 AAC-LC

Container Format:

.MP4

Removable Storage:

Five USB 3.2 Gen 1 (5 Gbps) ports

Supports USB 2.0, USB 3.0, USB 3.2 Gen 1

Each port supports up to 5V 1A max current

File System Support:

FAT16

FAT32

exFAT (in-system formatting support)

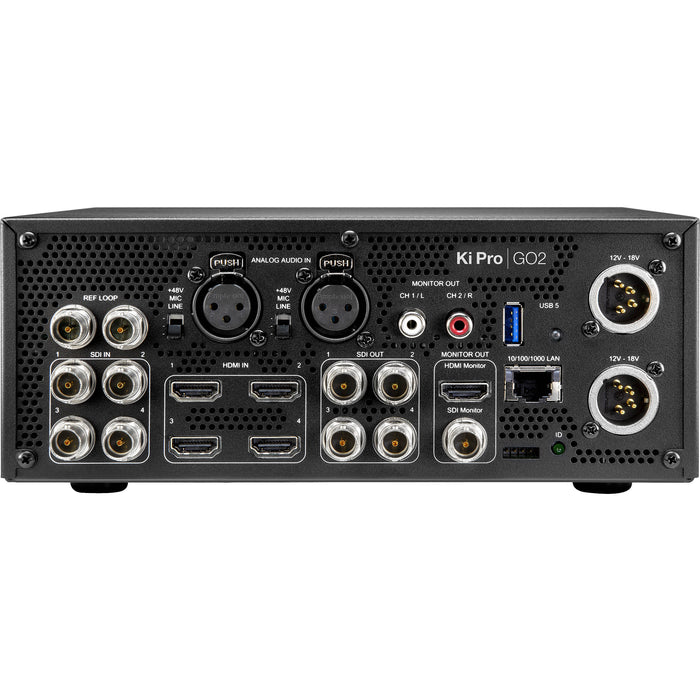

Video Inputs:

Four 3G-SDI (BNC connectors)

Four HDMI v1.4a (Type A connectors)

Video Outputs:

Four 3G-SDI (BNC connectors)

One 3G-SDI monitoring output (BNC connector)

One HDMI v1.4a monitoring output (Type A connector)

Audio Inputs:

Two balanced XLR analog audio inputs (mic/line/48V phantom power switchable)

Two-channel embedded audio per video input

Audio Outputs:

Two-channel embedded audio per video output

Control and Networking:

RS-422 machine control (DE-9 connector)

10/100/1000 Ethernet (RJ-45)

Web-based user interface for remote control

Timecode:

LTC input/output (2 x BNC)

SDI embedded RP188

Reference Input:

Analog Color Black (1 x BNC, terminated)

Conversion:

10-bit hardware-based up/down/cross-conversion

Physical Dimensions:

Width: 19.0 inches (482.6 mm)

Depth: 10.0 inches (254 mm)

Height: 1.75 inches (44.5 mm)

Weight:

Approximately 7.0 lbs (3.2 kg)

Power:

100-240 VAC, 50/60 Hz

Typical operating power: 45W

Operating Conditions:

Temperature: 41°F to 104°F (5°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Relative Humidity: 0 to 90% non-condensing
