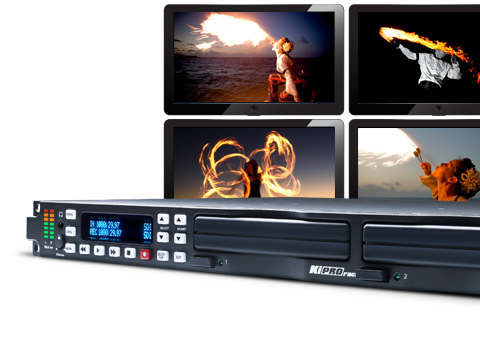

1RU rack-mounted file-based video recorder

Supports Apple ProRes 422 and Avid DNxHD codecs

SDI, HDMI, and analog video inputs/outputs

Dual AJA KiStor media slots with rollover recording

10-bit 4:2:2 recording quality

RS-422 machine control for deck-like operation

Front panel controls with clear OLED display

Ethernet connectivity for remote control

Embedded and analog audio support

Compatible with standard editing workflows

1RU rack-mounted file-based video recorder

Supports Apple ProRes 422 and Avid DNxHD codecs

SDI, HDMI, and analog video inputs/outputs

Dual AJA KiStor media slots with rollover recording

10-bit 4:2:2 recording quality

RS-422 machine control for deck-like operation

Front panel controls with clear OLED display

Ethernet connectivity for remote control

Embedded and analog audio support

Compatible with standard editing workflows

Video Formats Supported:

1080i at 25, 29.97, 30 fps

1080PsF at 23.98, 24, 25, 29.97 fps

1080p at 23.98, 24, 25, 29.97 fps

720p at 23.98, 25, 29.97, 50, 59.94, 60 fps

625i at 25 fps

525i at 29.97 fps

Codec Support:

Apple ProRes 422

Apple ProRes 422 (HQ)

Apple ProRes 422 (LT)

Apple ProRes 422 (Proxy)

Avid DNxHD HQX (220x)

Avid DNxHD SQ (145)

Avid DNxHD LD (36)

Removable Storage:

Dual AJA KiStor modules with rollover recording

Video Inputs:

SD/HD-SDI, 10-bit, Single Link 4:2:2 (2 x BNC)

HDMI v1.3

Analog SD/HD Component (3 x BNC)

Composite (1 x BNC)

Video Outputs:

SD/HD-SDI, Single Link 4:2:2 10-bit (1 x BNC)

HDMI v1.3

Component (3 x BNC)

Composite (1 x BNC)

Audio Inputs:

8-channel, 24-bit SDI embedded audio

8-channel, 24-bit HDMI embedded audio

8-channel, 24-bit AES/EBU digital audio (4 x BNC)

2-channel, balanced analog audio (2 x XLR)

Audio Outputs:

8-channel, 24-bit SDI embedded audio

8-channel, 24-bit HDMI embedded audio

8-channel, 24-bit AES/EBU digital audio (4 x BNC)

2-channel, balanced analog audio (2 x XLR)

Control and Networking:

RS-422 machine control (DE-9 connector)

10/100/1000 Ethernet (RJ-45)

Timecode:

LTC input/output (2 x BNC)

SDI embedded RP188

Reference Input:

Analog Color Black (1 x BNC, terminated)

Conversion:

10-bit hardware-based up/down/cross-conversion

Physical Dimensions:

Width: 19.0 inches (482.6 mm)

Depth: 12.5 inches (317.5 mm)

Height: 1.75 inches (44.5 mm)

Weight:

Approximately 7.3 lbs (3.4 kg)

Power:

Dual, redundant power supplies

100-240 VAC, 50/60 Hz

Typical operating power: 40W

Operating Conditions:

Temperature: 41°F to 104°F (5°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Relative Humidity: 0 to 90% non-condensing
