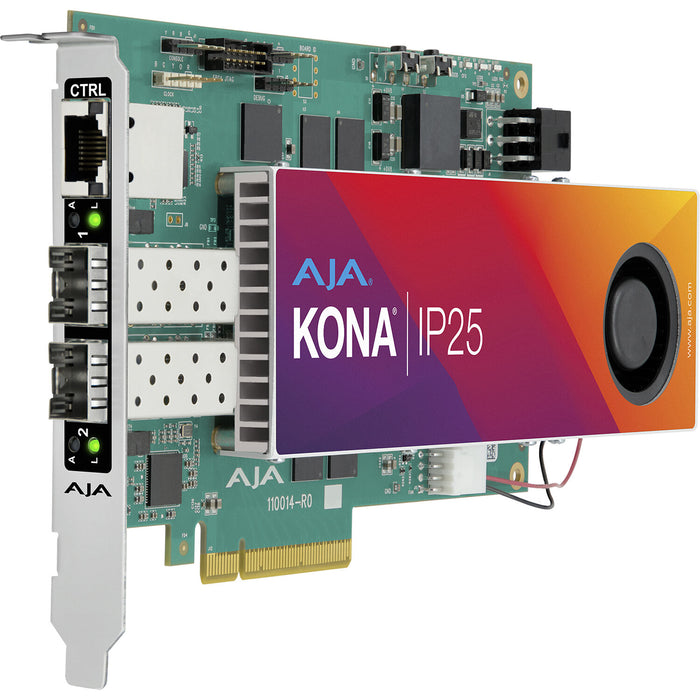

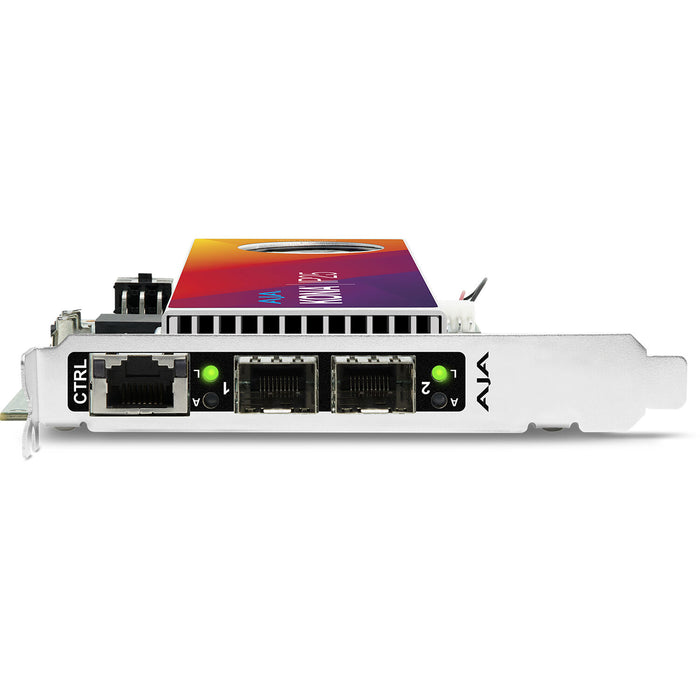

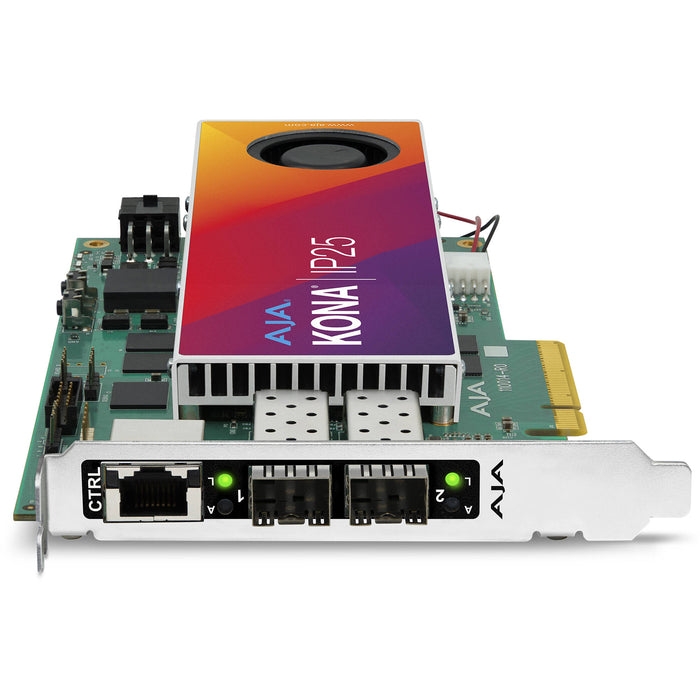

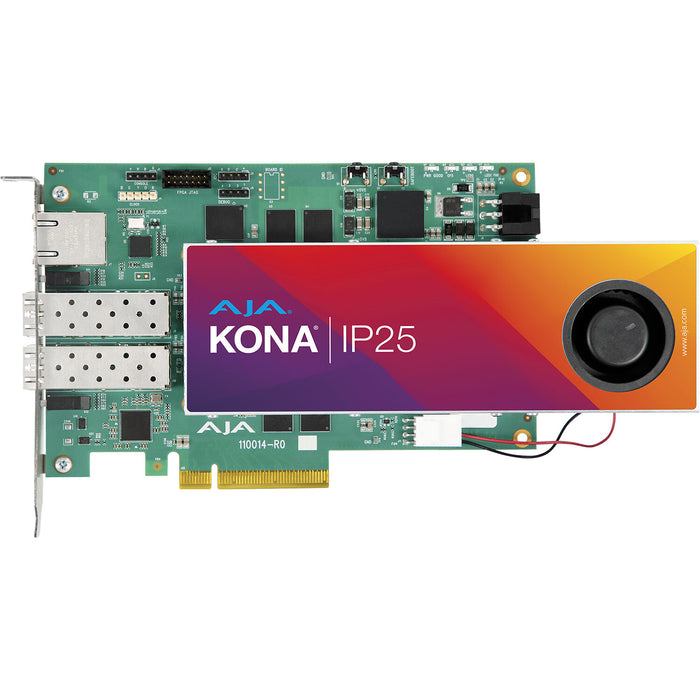

AJA KONA IP25 SDI to SMPTE ST 2110 IP Converter
MODEL: KONA IP25
SKU: KONA-IP25-R0
Video Support:
Up to 4 simultaneous receive (Rx) and 4 transmit (Tx) channels
10-bit 4:2:2 up to 3840x2160p resolution
12-bit 4:4:4 up to 2048x1080p resolution (future firmware updates)
SDR/HDR support for transfer characteristics, colorimetry, and luminance via SDP files
Audio Support:
Up to 4 Rx and 4 Tx channels
Supports up to 16 channels of audio per stream
Ancillary Data:
Supports up to 4 Rx and 4 Tx channels for ST 2110-40 ancillary data
Network Interfaces:
Two SFP cages supporting 10 GigE or 25 GigE SFPs (SFPs not included)
One 1 GigE RJ-45 port for management and control
Redundancy and Timing:
ST 2022-7 redundancy for seamless protection switching
Onboard PTPv2 (ST 2059-2) accessed via media network SFPs for precise timing
Control and Discovery:
Supports NMOS (Networked Media Open Specifications) for discovery, registration, and control
LLDP (Link Layer Discovery Protocol) and DNS-SD (Service Discovery) support
Platform Compatibility:
Compatible with macOS, Windows, and Linux operating systems
Form Factor:
Single-slot, full-height design
Video Support:
Up to 4 simultaneous receive (Rx) and 4 transmit (Tx) channels
10-bit 4:2:2 up to 3840x2160p resolution
12-bit 4:4:4 up to 2048x1080p resolution (future firmware updates)
SDR/HDR support for transfer characteristics, colorimetry, and luminance via SDP files
Audio Support:
Up to 4 Rx and 4 Tx channels
Supports up to 16 channels of audio per stream
Ancillary Data:
Supports up to 4 Rx and 4 Tx channels for ST 2110-40 ancillary data
Network Interfaces:
Two SFP cages supporting 10 GigE or 25 GigE SFPs (SFPs not included)
One 1 GigE RJ-45 port for management and control
Redundancy and Timing:
ST 2022-7 redundancy for seamless protection switching
Onboard PTPv2 (ST 2059-2) accessed via media network SFPs for precise timing
Control and Discovery:
Supports NMOS (Networked Media Open Specifications) for discovery, registration, and control
LLDP (Link Layer Discovery Protocol) and DNS-SD (Service Discovery) support
Platform Compatibility:
Compatible with macOS, Windows, and Linux operating systems
Form Factor:
Single-slot, full-height design
Video Support:
ST 2110-20 Video:
Supports up to 4 simultaneous receive (Rx) and 4 transmit (Tx) channels
10-bit 4:2:2 up to 3840x2160p resolution
12-bit 4:4:4 up to 2048x1080p resolution (with future firmware updates)
SDR/HDR support for transfer characteristics, colorimetry, and luminance via SDP files
Audio Support:
ST 2110-30 Audio:
Supports up to 4 Rx and 4 Tx channels
Up to 16 channels of audio per stream
Ancillary Data:
ST 2110-40 Ancillary:
Supports up to 4 Rx and 4 Tx channels
Network Interfaces:
Two SFP cages supporting 10 Gigabit Ethernet (10 GigE) or 25 Gigabit Ethernet (25 GigE) SFPs (SFPs not included)
One 1 GigE RJ-45 port for management and control
Redundancy and Timing:
ST 2022-7 redundancy for seamless protection switching
Onboard PTPv2 (ST 2059-2) accessed via media network SFPs for precise timing
Control and Discovery:
Supports NMOS (Networked Media Open Specifications) for discovery, registration, and control
LLDP (Link Layer Discovery Protocol) and DNS-SD (Service Discovery) support
Platform Compatibility:
Compatible with macOS, Windows, and Linux operating systems
Form Factor:
Single-slot, full-height design
Warranty:
Three-year warranty
