AJA OG-HA5-12G openGear HDMI 2.0 to 12G-SDI converter card with dual 12G-SDI outputs, supporting 4K/UltraHD up to 60p, HDR metadata, and embedded audio.

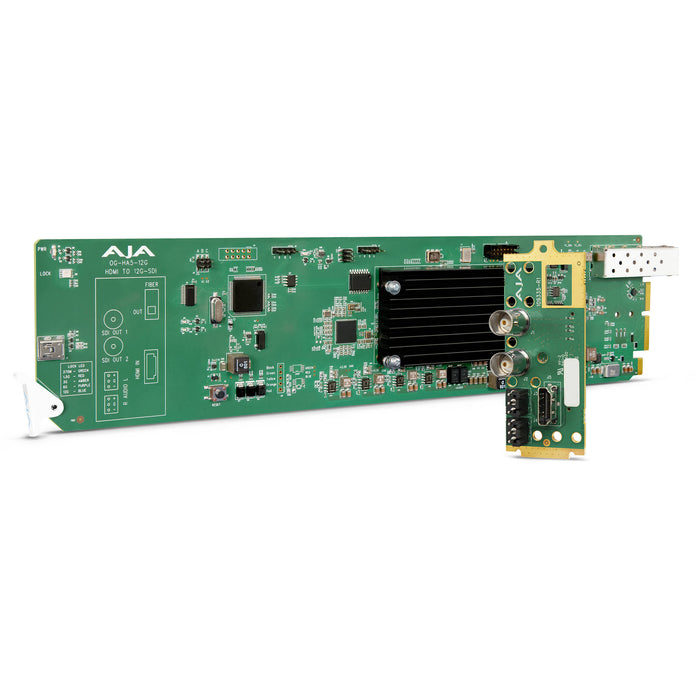

AJA OG-HA5-12G OpenGear HDMI 2.0 to 12G-SDI Converter

by AJA
Availability:
In stock 3-5 days
$999.00 - $999.00
$999.00
$999.00 - $999.00
$999.00

MODEL: OG-HA5-12G

SKU: OG-HA5-12G
  • Overview
  • Features
  • Specifications

The AJA OG-HA5-12G is an openGear-compatible converter card designed to convert HDMI 2.0 signals to 12G-SDI for high-quality 4K/UltraHD monitoring. It offers two mirrored 12G-SDI outputs, supporting resolutions up to 4K at 60p with 12-bit color depth. The card also provides HDR metadata pass-through and optional override, ensuring accurate color representation on compatible displays. Additionally, it supports embedded 8-channel 24-bit audio and offers EDID emulation to maintain consistent video formats. Remote monitoring and control are facilitated via AJA’s DashBoard software, compatible with macOS, Windows, and Linux platforms. The OG-HA5-12G is ideal for integrating HDMI-based 4K sources into SDI-based monitoring environments.

  • HDMI 2.0 to 12G-SDI Conversion: Converts HDMI 2.0 signals to 12G-SDI for 4K/UltraHD monitoring.
  • Dual 12G-SDI Outputs: Provides two mirrored 12G SDI outputs for redundancy or additional monitoring.
  • High Frame Rate Support: Supports up to 60p input at 4:4:4, 4:2:2, or 4:2:0 color formats.
  • 12-Bit Color Depth: Handles 12-bit workflows for high-quality color representation.
  • HDR Metadata Handling: Passes through HDR signaling metadata with optional override.
  • EDID Emulation: Emulates Extended Display Identification Data for preferred video formats.
  • Frame Rate Conversion: Offers simple frame rate conversion between fractional and integer rates.
  • Audio Support: Embeds and passes through 8-channel 24-bit audio; supports AC-3 and E-AC-3 compressed audio, including Dolby Digital Plus with Atmos.
  • Remote Monitoring and Control: Compatible with AJA’s DashBoard software for remote configuration and monitoring.
  • Power Consumption: Operates at a maximum of 14 watts per card.
  • Warranty: Comes with a 5-year limited warranty.
  • Video Input: 1x HDMI 2.0b Type A (supports 4K/UltraHD at 60p, HDR metadata, and color depths up to 12-bit)
  • Video Output: 2x 12G-SDI BNC (SMPTE 259M, 292M, 424M, 2081, 2082)
  • Resolution Support: 4K (4096x2160), UltraHD (3840x2160), 2K (2048x1080), HD (1920x1080), SD (720x576, 720x480)
  • Frame Rates Supported: Up to 60p for 4K/UltraHD
  • Color Formats: 4:4:4, 4:2:2, 4:2:0, RGB (SMPTE or Full level)
  • Bit Depth: 8, 10, 12-bit
  • HDR Support: HDR10 and Hybrid Log-Gamma (HLG) metadata pass-through and optional override
  • Audio Support: 8-channel 24-bit embedded audio; pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (DD+ JOC)
  • Frame Rate Conversion: Simple Frame Rate Conversion (FRC) between fractional and integer rates
  • EDID Emulation: Supports Low Frame Rate (LFR) and High Frame Rate (HFR) emulation up to UltraHD 60p
  • Rear I/O Plate: Included
  • Power Consumption: 14W maximum
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity: 10% to 90% non-condensing
  • Frame Compatibility: Compatible with openGear frames such as OG-X-FR, OG3, and DFR-8321
  • Control and Monitoring: Via Ross DashBoard software (Windows, macOS, Linux)
  • Warranty: 5-year limited warranty
