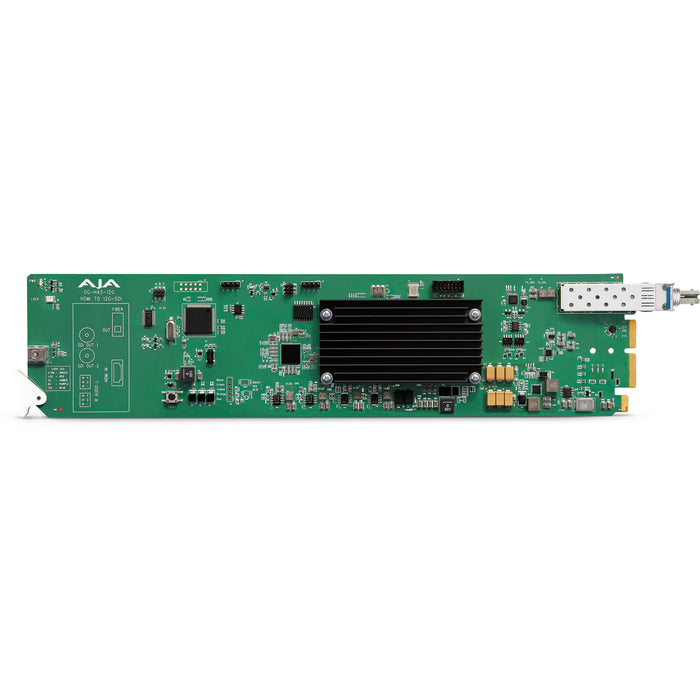

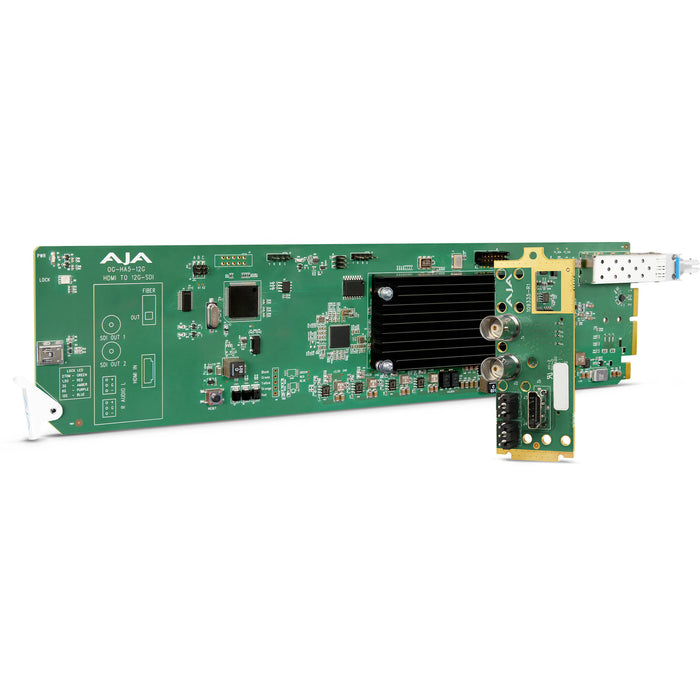

AJA OG-HA5-12G-T-ST OpenGear 4K HDMI 2.0 to 12G-SDI Converter Card with Fiber ST
Availability:
In stock 3-5 days
Original price
$1,375.00
-
Original price
$1,375.00
Original price
$1,375.00
$1,375.00
-
$1,375.00
Current price
$1,375.00
| /
MODEL: HA5-12G-T-ST
SKU: HA5-12G-T-ST
The AJA HA5-12G-T-ST is a compact HDMI 2.0 to 12G-SDI converter with an integrated ST fiber transmitter, enabling long-distance 4K/UltraHD signal transmission. It supports high-resolution video, HDR, and audio embedding, making it ideal for professional broadcast and production workflows.
- Converts HDMI 2.0 to dual 12G-SDI outputs
- Integrated ST fiber transmitter for long-distance signal extension
- Supports up to DCI 4K/UltraHD at 60p
- HDR support including HDR10 and HLG
- Embedded audio from HDMI or 2-channel analog input
- EDID emulation for HDMI source compatibility
- Two Sample Interleave (2SI) mapping for 4K/UHD
- Simple Frame Rate Conversion between fractional and integer rates
- USB port for configuration via AJA Mini-Config
- Locking HDMI connector
- Universal 5–16 VDC power supply included
- Compact, durable design for professional use
- Video Input: 1x HDMI 2.0b (Type A connector)
- Video Outputs: 2x 12G-SDI (BNC), 1x 12G-SDI over fiber (ST connector, single-mode)
- Supported Resolutions: Up to DCI 4K/60p and UltraHD 60p
- Color Sampling: 4:4:4, 4:2:2, 4:2:0
- Bit Depth: 8-bit, 10-bit, 12-bit (4:4:4 4K limited to 8-bit at high frame rates)
- HDR Support: HDR10 and HLG (pass-through via HDMI v2.0b, CTA-861-G)
- Audio Inputs:
- HDMI embedded: up to 8 channels
- Analog: 2-channel RCA (unbalanced, -10 dBV nominal)
- Audio Output: Embedded SDI audio up to 8 channels
- Fiber Output Range: Up to 10 km over single-mode fiber
- Additional Features:
- EDID emulation
- Two Sample Interleave (2SI) mapping
- Frame rate conversion (fractional to integer)
- Control Interface: USB for configuration via AJA Mini-Config
- Power: 5–16 VDC (locking connector, universal power supply included)
- Dimensions: 5.8" x 3.1" x 1.0" (147 mm x 79 mm x 25 mm)
- Weight: 0.5 lb (0.23 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Humidity: 10% to 90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
