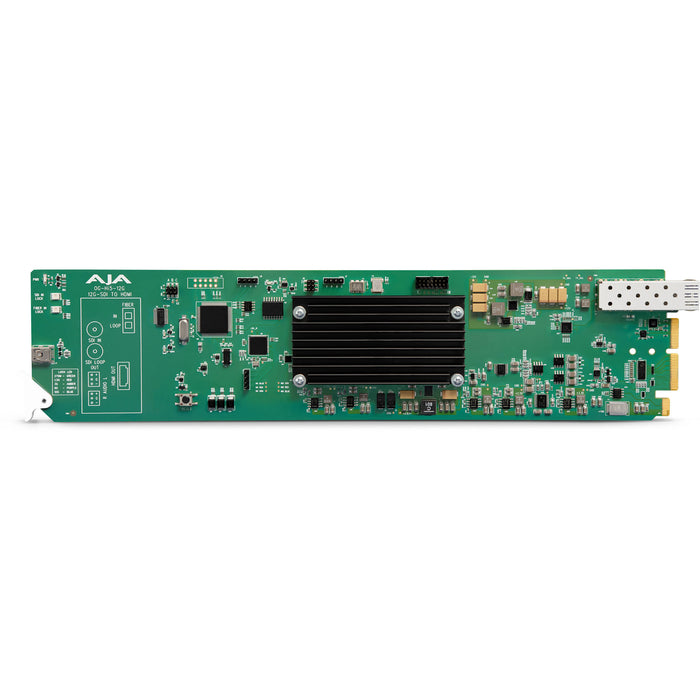

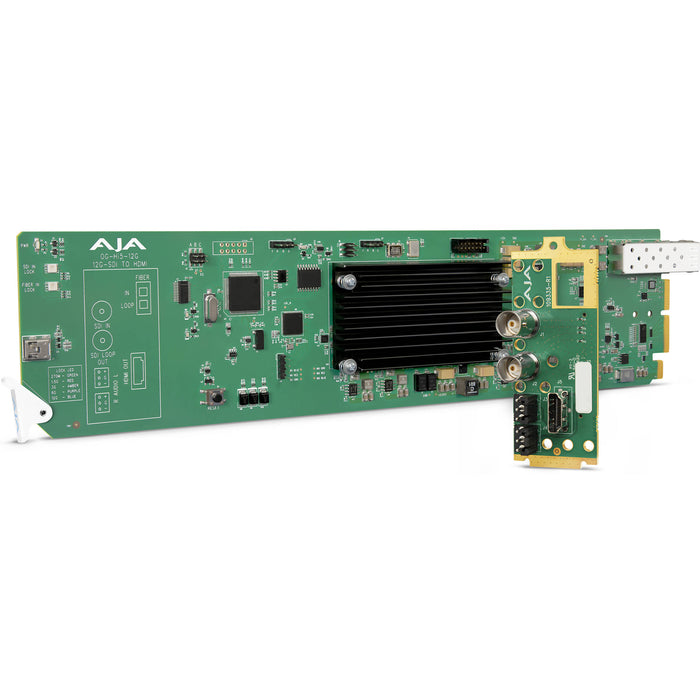

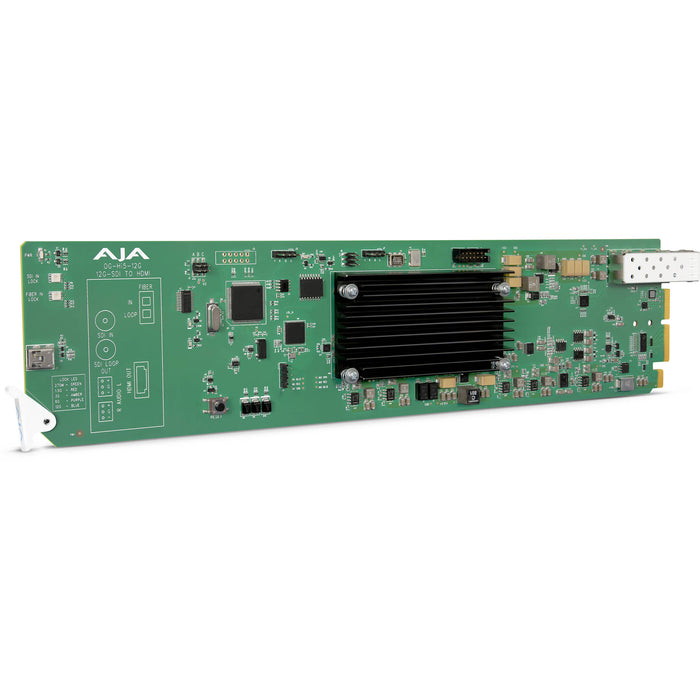

OpenGear-compatible 12G-SDI to HDMI 2.0 converter

Supports 4K/UltraHD/HD resolutions up to 60 fps

HDR support for HLG and PQ formats

Embedded 8-channel 24-bit audio over HDMI

Two-channel analog audio output via RCA

Automatic input detection for seamless operation

12G-SDI loop-through output for monitoring

Supports both single-link and dual-link SDI inputs

OpenGear frame-compatible for rack-mounted workflows

LED status indicators for signal presence and power

Remote configuration via DashBoard software

Low-latency, high-quality signal conversion

OpenGear-compatible 12G-SDI to HDMI 2.0 converter

Supports 4K/UltraHD/HD resolutions up to 60 fps

HDR support for HLG and PQ formats

Embedded 8-channel 24-bit audio over HDMI

Two-channel analog audio output via RCA

Automatic input detection for seamless operation

12G-SDI loop-through output for monitoring

Supports both single-link and dual-link SDI inputs

OpenGear frame-compatible for rack-mounted workflows

LED status indicators for signal presence and power

Remote configuration via DashBoard software

Low-latency, high-quality signal conversion

Video Formats Supported:

4K: 4096x2160p

UltraHD: 3840x2160p

2K: 2048x1080p

HD: 1920x1080p, 1920x1080i, 1280x720p

SD: 720x576i, 720x480i

Video Input Digital:

1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

Supports YCbCr 4:2:2/4:4:4 and RGB 4:4:4

8, 10, 12-bit

Two Sample Interleave (2SI) 4K/UltraHD source mapping

Video Output Digital:

1x HDMI Type A connector, HDMI v2.0b

Supports up to 4K 60p

Supports 4:4:4, 4:2:2, 4:2:0 output

Audio Input Digital:

16-Channel embedded SDI audio, 24-bit, 48 kHz

Audio Output Digital:

8-Channel embedded HDMI audio, 24-bit, 48 kHz

Audio Output Analog:

2-Channel unbalanced analog audio (RCA)

HDR Support:

HDR10 metadata pass-through and optional override

Hybrid Log Gamma (HLG) over HDMI

SDI Loop Out:

1x 12G-SDI BNC, reclocked

Fiber SFP Options:

OG-Hi5-12G-R: Includes Fiber LC receiver

OG-Hi5-12G-TR: Includes Fiber LC transceiver

Control:

Remote configuration via Ross DashBoard software

Power Consumption:

13 watts max per card

Dimensions:

Compatible with openGear 2RU frames

Warranty:

Five-year warranty
