AJA Hi5-12G-R-ST Mini-Converter – Compact 12G-SDI to HDMI 2.0 converter with ST fiber input for high-resolution video monitoring.

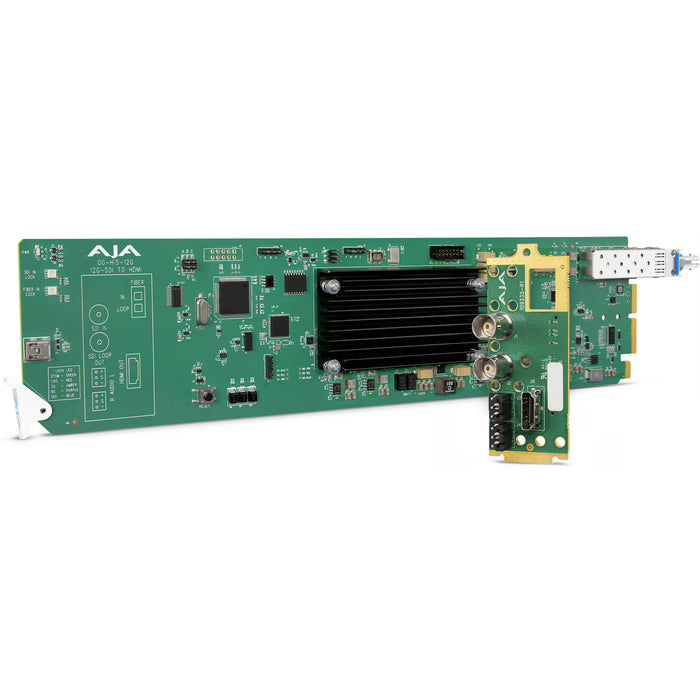

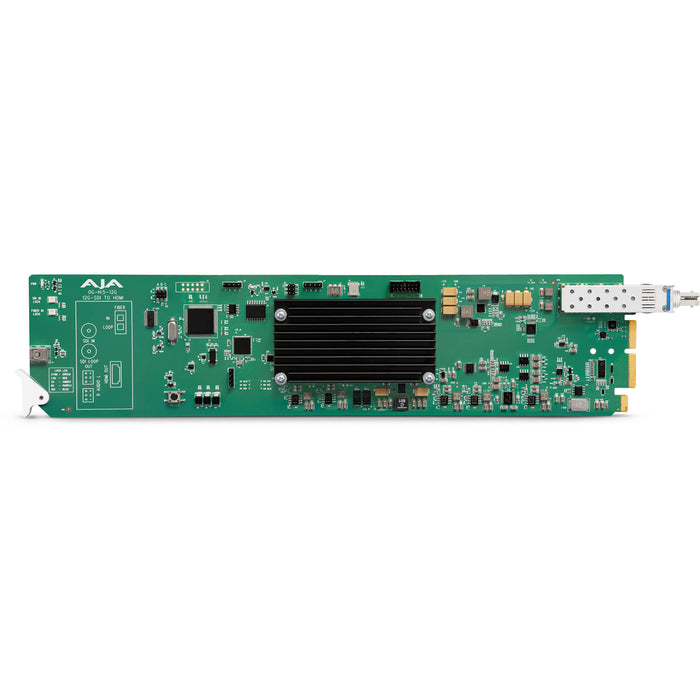

AJA OG-Hi5-12G-R-ST OpenGear 4K 12G-SDI to HDMI 2.0 Converter Card with Fiber ST Connector

by AJA
Availability:
In stock 3-5 days
$1,375.00 - $1,375.00
$1,375.00
$1,375.00 - $1,375.00
$1,375.00

MODEL: HI5-12G-R-ST

SKU: HI5-12G-R-ST


  • Overview
  • Features
  • Specifications

The AJA Hi5-12G-R-ST is a compact mini-converter that receives 12G-SDI signals over ST fiber and outputs them as HDMI 2.0, supporting up to 4K/UltraHD resolution with HDR. It's designed for professional video monitoring in broadcast, production, and post-production environments.

  • Converts 12G-SDI over ST fiber to HDMI 2.0
  • Supports up to 4K/UltraHD at 60p
  • Compatible with 12G, 6G, 3G, and 1.5G-SDI
  • ST fiber input for long-distance transmission
  • Embedded audio support
  • HDMI 2.0 output with HDR10 and HLG support
  • Compact and portable design
  • Locking power connector
  • Includes universal power supply
  • Ideal for professional video monitoring
  • Video Input: 1x 12G-SDI over ST fiber input
  • Video Output: 1x HDMI 2.0 (Type A connector)
  • Supported Resolutions: Up to 4K/UltraHD 60p
  • SDI Standards: 12G-SDI, 6G-SDI, 3G-SDI (Level A/B), 1.5G-SDI
  • Audio Support: 16-channel embedded SDI audio, 8-channel HDMI audio
  • HDR Support: HDR10 and HLG via HDMI
  • Power: 5-20V DC, locking power connector
  • Dimensions: 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
  • Weight: 0.5 lb (0.23 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
