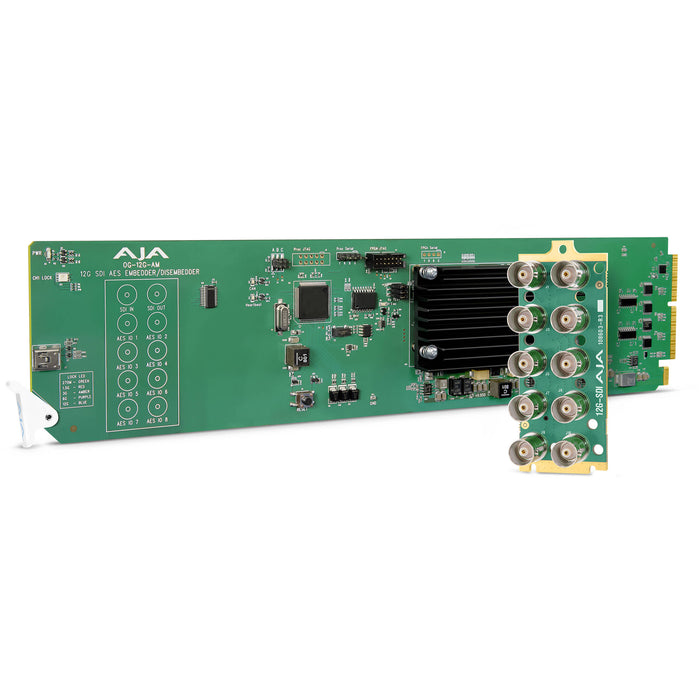

AJA OpenGear 16-Channel AES/EBU Audio Embedder/Disembedder
MODEL: OG-12G-AM-R0
SKU: OG-12G-AM-R0
OpenGear-compatible 12G-SDI 8-channel audio embedder/disembedder
Supports AES/EBU and analog audio embedding and extraction
12G-SDI input and output with full audio control
24-bit, 48 kHz audio processing for high-quality sound
Selectable embedding or disembedding per channel pair
Compatible with HD, UltraHD, and 4K workflows
Auto-sensing SDI input for seamless operation
Remote configuration and control via Ross DashBoard software
Supports HDR workflows with 12G-SDI signal integrity
OpenGear frame-compatible for rack-mounted installations
LED status indicators for power and signal monitoring
Low power consumption for efficient operation
OpenGear-compatible 12G-SDI 8-channel audio embedder/disembedder
Supports AES/EBU and analog audio embedding and extraction
12G-SDI input and output with full audio control
24-bit, 48 kHz audio processing for high-quality sound
Selectable embedding or disembedding per channel pair
Compatible with HD, UltraHD, and 4K workflows
Auto-sensing SDI input for seamless operation
Remote configuration and control via Ross DashBoard software
Supports HDR workflows with 12G-SDI signal integrity
OpenGear frame-compatible for rack-mounted installations
LED status indicators for power and signal monitoring
Low power consumption for efficient operation
Video Input:
1x 12G-SDI BNC input, auto-sensing
Supports SMPTE 259/292/424/2081/2082
Video Output:
1x 12G-SDI BNC output with embedded audio
1x 12G-SDI BNC loop-through output
Audio Input:
8-channel AES/EBU digital audio input (BNC)
8-channel balanced analog audio input (terminal block)
Audio Output:
8-channel AES/EBU digital audio output (BNC)
8-channel balanced analog audio output (terminal block)
Audio Processing:
24-bit, 48 kHz audio sample rate
Selectable embedding or disembedding per channel pair
Supported Formats:
HD, UltraHD, and 4K workflows
SMPTE-compliant 12G-SDI signal processing
Control & Monitoring:
Remote configuration and monitoring via Ross DashBoard software
LED status indicators for power and signal monitoring
Physical & Power:
Compatible with openGear 2RU frames
Power consumption: 7 watts max
Operating temperature: 0°C to 40°C (32°F to 104°F)
Warranty:
Five-year warranty
