AJA UDC Up/Down/Cross Converter
Availability:
In stock 3-5 days
Original price
$879.00
-
Original price
$879.00
Original price
$879.00
$879.00
-
$879.00
Current price
$879.00
| /

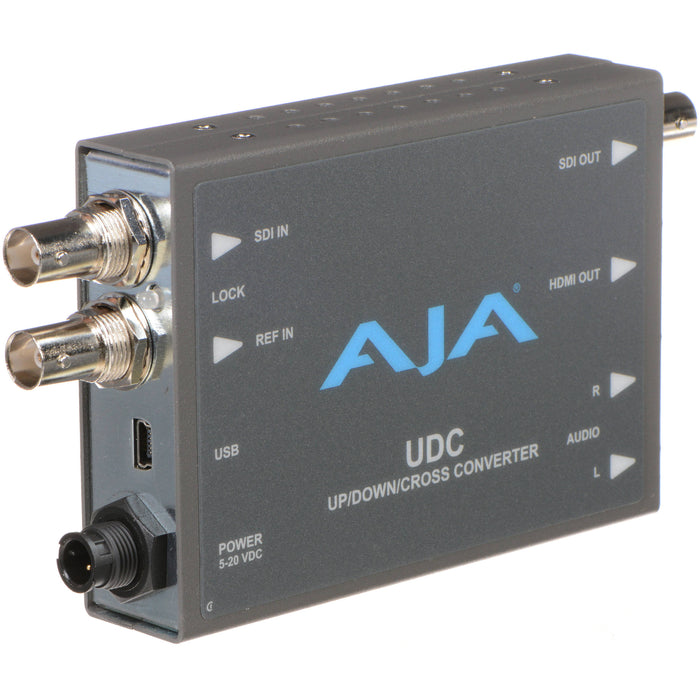

The AJA UDC is a compact up/down/cross converter that supports SD, HD, and 3G-SDI formats. It provides high-quality conversion with full input and output signal support, including embedded audio, making it ideal for broadcast and post-production workflows requiring flexible format conversion.
- Up, down, and cross conversion between SD, HD, and 3G-SDI formats
- High-quality 10-bit video processing
- Supports 1080p, 1080i, 720p, and SD resolutions
- 3G-SDI input and output with reclocking
- HDMI output for local monitoring
- Embedded audio support
- Reference input for synchronization
- USB port for configuration via AJA Mini-Config
- Compact and portable design
- Locking power connector
- Universal power supply included
- Video Input: 1x 3G-SDI BNC connector
- Video Outputs: 1x 3G-SDI BNC, 1x HDMI (Type A)
- Supported Formats: SD (525i, 625i), HD (720p, 1080i), 3G (1080p)
- Conversion Types: Up-conversion, down-conversion, cross-conversion
- Video Processing: 10-bit high-quality scaling and frame rate conversion
- Audio Input: Embedded SDI audio (up to 16 channels)
- Audio Output: Embedded in SDI and HDMI (selectable channels)
- Reference Input: 1x BNC for blackburst or tri-level sync
- Genlock: Supported with timing adjustment
- Control Interface: USB port for configuration via AJA Mini-Config software
- Power: 5–20 VDC, locking power connector (universal power supply included)
- Dimensions: 5.8" x 3.1" x 1.0" (147 mm x 79 mm x 25 mm)
- Weight: 0.5 lb (0.23 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Humidity: 10% to 90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
