Single-channel 12G-SDI to fiber optic transmitter with LC connector for high-resolution video transmission.

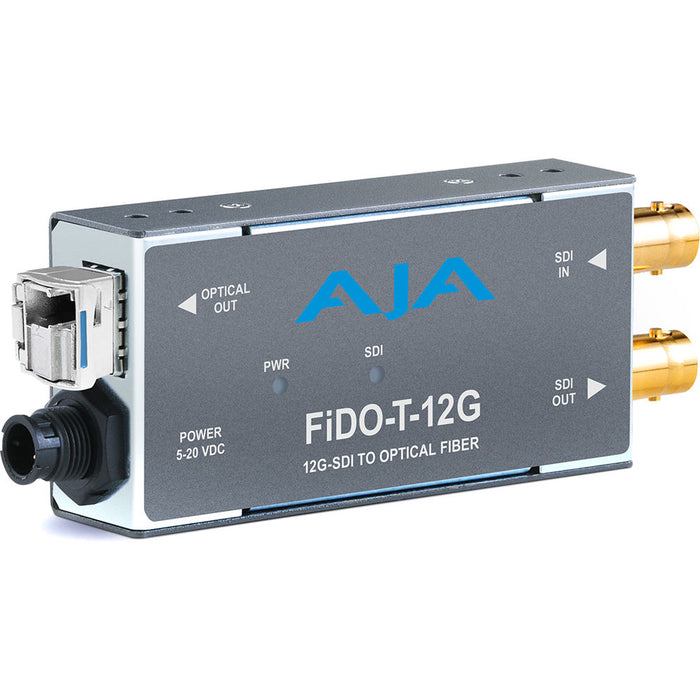

AJA 1-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

by AJA
Availability:
In stock 3-5 days
$989.00 - $989.00
$989.00
$989.00 - $989.00
$989.00

MODEL: FIDO-T-12G

SKU: FIDO-T-12G


  • Overview
  • Features
  • Specifications

The AJA FiDO-T-12G is a compact single-channel 12G-SDI to fiber optic transmitter designed for transporting high-resolution video signals over long distances. Ideal for 4K/UltraHD workflows, it features a standard LC fiber connector and rugged construction, making it perfect for broadcast, live production, and professional AV environments.

  • Single-channel 12G-SDI to fiber optic conversion
  • Supports resolutions up to 4K/UltraHD
  • 1x 12G-SDI input
  • 1x LC fiber optic output (single-mode)
  • Compact and rugged enclosure
  • Plug-and-play operation
  • Supports SDI formats: 12G/6G/3G/HD/SD
  • Equalized and re-clocked SDI input
  • Locking power connector
  • Low power consumption
  • Compatible with standard single-mode fiber systems
  • Ideal for broadcast and professional video environments
  • Video Formats: 12G/6G/3G/1.5G/270 Mbps SDI
  • Input: 1x 12G-SDI BNC
  • Output: 1x LC fiber optic (single-mode)
  • Reclocking: Yes, on SDI input
  • Max Resolution: Up to 4K/UltraHD 60p
  • Fiber Type: Single-mode
  • Wavelength: 1310 nm
  • Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
  • Power: +5 to +20 VDC, 2.5 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.4 lb (0.18 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
