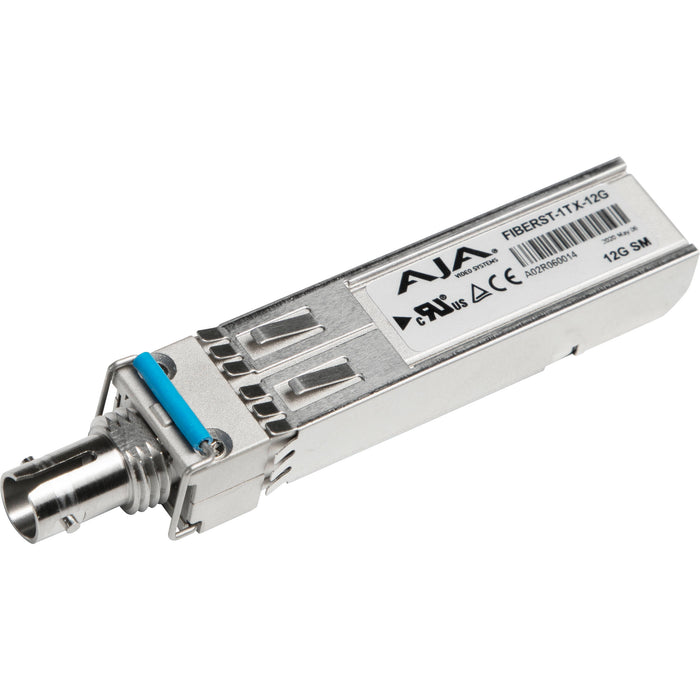

AJA FiDO-1T-ST-12G single-channel 12G-SDI to optical fiber mini-converter with ST connector.

AJA 1-Channel 12G-SDI to Single Mode ST Fiber Transmitter SFP

by AJA
Availability:
In stock 3-5 days
$505.00 - $505.00
$505.00
$505.00 - $505.00
$505.00

MODEL: FIBERST-1TX-12G

SKU: FIBERST-1TX-12G
  • Overview
  • Features
  • Specifications

The AJA FiDO-1T-ST-12G is a compact, single-channel 12G-SDI to ST fiber transmitter, designed for high-resolution video transport over long distances. It supports 4K/UltraHD signals, offering reliable, real-time conversion with minimal latency, ideal for broadcast, production, and professional AV applications.

  • Converts 12G-SDI to ST fiber
  • Supports resolutions up to 4K/UltraHD
  • Compact and rugged design
  • Single-channel transmission
  • Compatible with all SMPTE optical fiber standards
  • Real-time, low-latency conversion
  • Uses standard ST optical connectors
  • Ideal for long-distance signal extension
  • Supports embedded audio
  • Locking power connector for secure operation
  • Video Input: 1x 12G-SDI BNC, SMPTE 2082
  • Video Output: 1x ST optical fiber
  • Supported Resolutions: Up to 4K/UltraHD (4096x2160/3840x2160)
  • Audio Support: Embedded SDI audio
  • Fiber Type: Single-mode
  • Wavelength: 1310 nm
  • Max Cable Length: Up to 10 km (single-mode fiber)
  • Power: +5-20V DC, 2.5W
  • Connector Type: ST
  • Dimensions: 5.8" x 1.0" x 0.8" (147mm x 25mm x 20mm)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
