Single-channel 3G-SDI to fiber optic transceiver with LC multimode connectors for bidirectional HD video signal transmission over short distances.

AJA 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver

by AJA
Availability:
In stock 3-5 days
$1,109.00 - $1,109.00
$1,109.00
$1,109.00 - $1,109.00
$1,109.00

MODEL: FIDO-TR-MM

SKU: FIDO-TR-MM


  • Overview
  • Features
  • Specifications

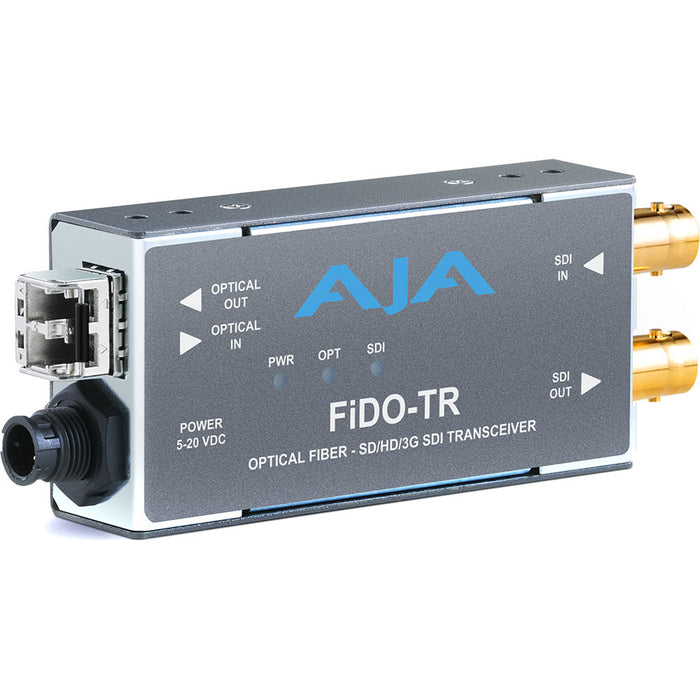

The AJA FiDO-TR-MM is a single-channel 3G-SDI to fiber optic transceiver with LC multimode connectors, enabling bidirectional HD video transmission over short distances. Compact and rugged, it’s designed for professional AV and broadcast environments where space efficiency and reliable short-range signal transport are essential.

  • Single-channel bidirectional 3G-SDI to fiber optic transceiver
  • 1x 3G-SDI input and 1x 3G-SDI output
  • 1x LC fiber optic input and 1x LC fiber optic output (multimode)
  • Supports SDI formats: 3G/HD/SD
  • Enables simultaneous transmission and reception
  • Compact and rugged design for professional use
  • Reclocked SDI output for signal stability
  • Plug-and-play operation
  • Compatible with standard multimode fiber systems
  • Locking 2-pin power connector
  • Low power consumption
  • Ideal for short-distance HD video transport in AV and broadcast setups
  • Video Formats: 3G/HD/SD-SDI
  • SDI Input: 1x 3G-SDI BNC
  • SDI Output: 1x 3G-SDI BNC
  • Fiber Input: 1x LC fiber optic (multimode)
  • Fiber Output: 1x LC fiber optic (multimode)
  • Reclocking: Yes, on SDI output
  • Max Resolution: Up to 1080p 60
  • Fiber Type: Multimode
  • Wavelength: 850 nm
  • Operating Distance: Up to 300 meters (984 feet) with standard multimode fiber
  • Power: +5 to +20 VDC, 3 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.4 lb (0.18 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
