Single-channel 3G-SDI to fiber optic transmitter with LC multimode connector for short-distance HD video transmission.

AJA 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter

by AJA
Availability:
In stock 3-5 days
$869.00 - $869.00
$869.00
$869.00 - $869.00
$869.00

MODEL: FIDO-T-MM

SKU: FIDO-T-MM


  • Overview
  • Features
  • Specifications

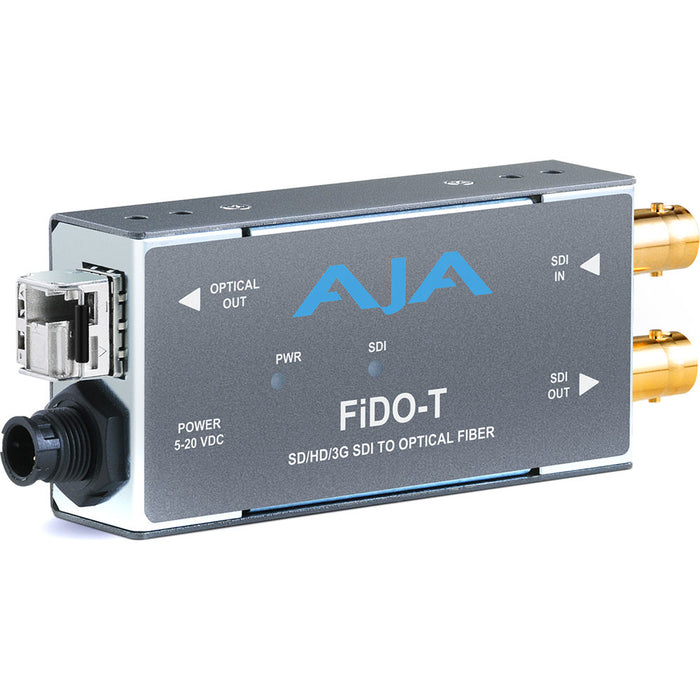

The AJA FiDO-T-MM is a single-channel 3G-SDI to fiber optic transmitter featuring an LC multimode connector, designed for short-distance HD video transmission. Its compact and durable design makes it an ideal solution for professional AV and broadcast applications where space is limited and efficient, reliable signal transport is essential.

  • Single-channel 3G-SDI to fiber optic conversion
  • 1x 3G-SDI BNC input
  • 1x LC fiber optic output (multimode)
  • Supports SDI formats: 3G/HD/SD
  • Reclocked SDI input for stable signal quality
  • Compact and rugged design for professional use
  • Plug-and-play operation
  • Compatible with standard multimode fiber systems
  • Locking 2-pin power connector
  • Low power consumption
  • Ideal for short-distance HD video transmission in AV and broadcast environments
  • Video Formats: 3G/HD/SD-SDI
  • Input: 1x 3G-SDI BNC
  • Output: 1x LC fiber optic (multimode)
  • Reclocking: Yes, on SDI input
  • Max Resolution: Up to 1080p 60
  • Fiber Type: Multimode
  • Wavelength: 850 nm
  • Operating Distance: Up to 300 meters (984 feet) with standard multimode fiber
  • Power: +5 to +20 VDC, 2.5 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.4 lb (0.18 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
