Single-channel fiber optic to 3G-SDI receiver with LC multimode connector for short-distance HD video signal conversion.

AJA 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver

by AJA
Availability:
In stock 3-5 days
$869.00 - $869.00
$869.00
$869.00 - $869.00
$869.00

MODEL: FIDO-R-MM

SKU: FIDO-R-MM


  • Overview
  • Features
  • Specifications

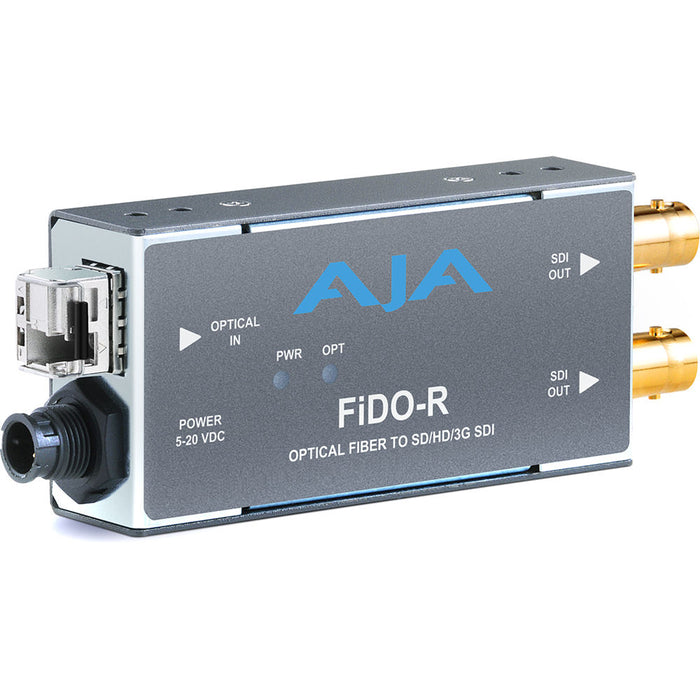

The AJA FiDO-R-MM is a single-channel fiber optic to 3G-SDI receiver featuring an LC multimode connector, designed for short-distance HD video transmission. Its compact and robust build makes it ideal for professional AV and broadcast environments where efficient, high-quality signal conversion is required within confined spaces.

  • Single-channel fiber optic to 3G-SDI conversion
  • 1x LC fiber optic input (multimode)
  • 1x 3G-SDI BNC output
  • Supports SDI formats: 3G/HD/SD
  • Reclocked SDI output for clean signal delivery
  • Compact and rugged design for professional environments
  • Plug-and-play operation
  • Compatible with standard multimode fiber systems
  • Locking 2-pin power connector
  • Low power consumption
  • Ideal for short-distance HD video reception in AV and broadcast applications
  • Video Formats: 3G/HD/SD-SDI
  • Input: 1x LC fiber optic (multimode)
  • Output: 1x 3G-SDI BNC
  • Reclocking: Yes, on SDI output
  • Max Resolution: Up to 1080p 60
  • Fiber Type: Multimode
  • Wavelength: 850 nm
  • Operating Distance: Up to 300 meters (984 feet) with standard multimode fiber
  • Power: +5 to +20 VDC, 2.5 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.4 lb (0.18 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
