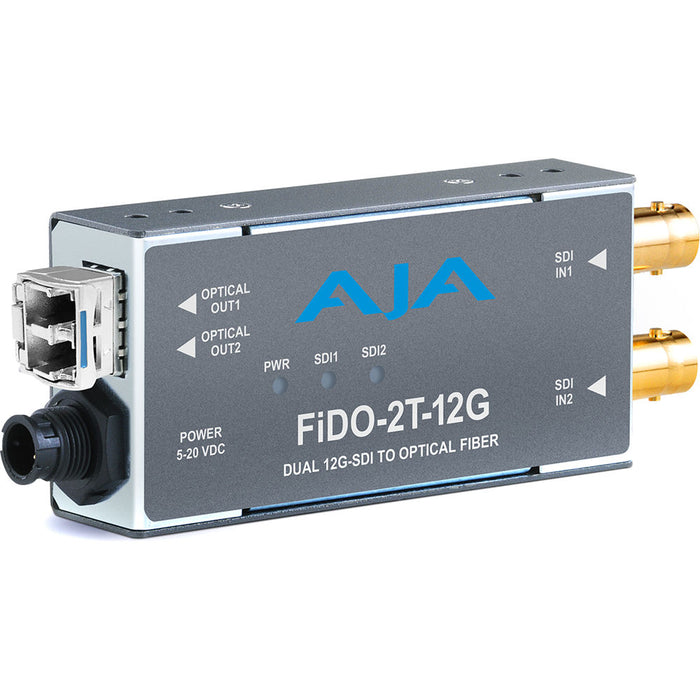

AJA FiDO-2T-12G compact 2-channel 12G-SDI to fiber optic transmitter, featuring dual SDI inputs and LC fiber connectors for high-resolution video signal transmission.

AJA 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

by AJA
Availability:
In stock 3-5 days
$1,659.00 - $1,659.00
$1,659.00
$1,659.00 - $1,659.00
$1,659.00

MODEL: FIDO-2T-12G

SKU: FIDO-2T-12G


  • Overview
  • Features
  • Specifications

The AJA FiDO-2T-12G is a compact and reliable 2-channel 12G-SDI to fiber optic transmitter designed for high-resolution video workflows. It allows the transmission of uncompressed 4K/UltraHD signals over long distances via standard LC fiber connectors, making it ideal for broadcast, live events, and professional AV applications. Its rugged design and ease of integration ensure dependable performance in demanding environments.

  • 2-channel 12G-SDI to single-mode fiber conversion
  • Supports resolutions up to 4K/UltraHD
  • Dual independent 12G-SDI inputs
  • Two LC fiber outputs
  • Compact, rugged design for field and studio use
  • Plug-and-play operation with automatic signal detection
  • Supports SDI formats: 12G/6G/3G/HD/SD
  • Uses standard LC fiber connectors
  • Equalized and re-clocked SDI input
  • Locking power connector for secure connection
  • Low power consumption
  • Compatible with all FiDO and standard fiber systems
  • Video Formats: 12G/6G/3G/1.5G/270 Mbps SDI
  • Input: 2x 12G-SDI BNC (independent channels)
  • Output: 2x LC fiber optic (single-mode)
  • Reclocking: Yes, on all SDI inputs
  • Max Resolution: Up to 4K/UltraHD 60p
  • Fiber Type: Single-mode
  • Wavelength: 1310 nm
  • Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
  • Power: +5 to +20 VDC, 4 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.5 lb (0.23 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
