Compact 2-channel fiber optic to 12G-SDI receiver with dual LC inputs for high-resolution video signal conversion.

AJA 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver

by AJA
Availability:
In stock 3-5 days
$1,659.00 - $1,659.00
$1,659.00
$1,659.00 - $1,659.00
$1,659.00

MODEL: FIDO-2R-12G

SKU: FIDO-2R-12G


  • Overview
  • Features
  • Specifications

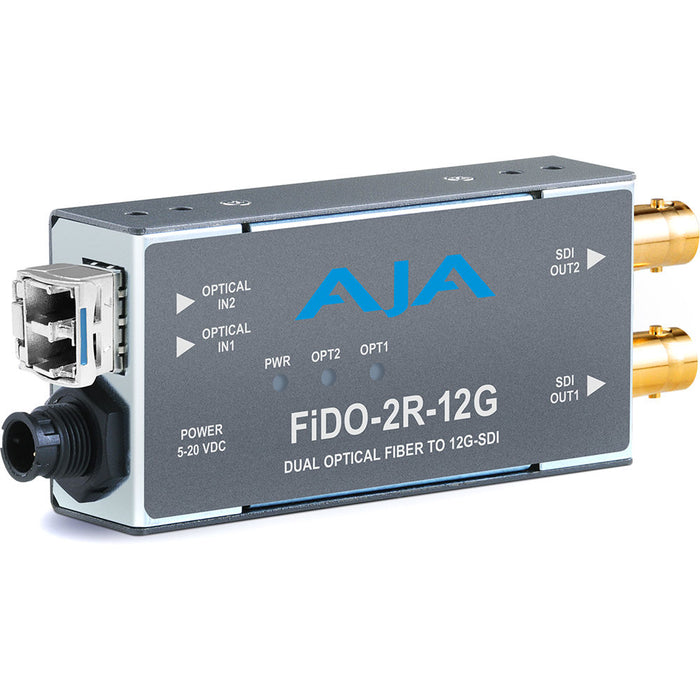

The AJA FiDO-2R-12G is a compact dual-channel fiber optic to 12G-SDI receiver, designed for high-resolution 4K/UltraHD video workflows. It features two independent LC fiber inputs and two 12G-SDI outputs, making it ideal for long-distance signal transmission in professional broadcast and production environments.

  • Dual-channel fiber optic to 12G-SDI conversion
  • Supports resolutions up to 4K/UltraHD
  • 2x LC fiber optic inputs (single-mode)
  • 2x independent 12G-SDI BNC outputs
  • Compact and rugged design for field or studio use
  • Plug-and-play operation
  • Supports SDI formats: 12G/6G/3G/HD/SD
  • Reclocked SDI outputs for signal integrity
  • Locking 2-pin power connector
  • Low power consumption
  • Compatible with standard single-mode fiber systems
  • Ideal for professional broadcast and AV applications
  • Video Formats: 12G/6G/3G/1.5G/270 Mbps SDI
  • Inputs: 2x LC fiber optic (single-mode)
  • Outputs: 2x 12G-SDI BNC (independent channels)
  • Reclocking: Yes, on SDI outputs
  • Max Resolution: Up to 4K/UltraHD 60p
  • Fiber Type: Single-mode
  • Wavelength: 1310 nm
  • Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
  • Power: +5 to +20 VDC, 4 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.5 lb (0.23 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
