Single-channel 3G-SDI to fiber optic transmitter and receiver with LC connectors for bidirectional HD video signal conversion.

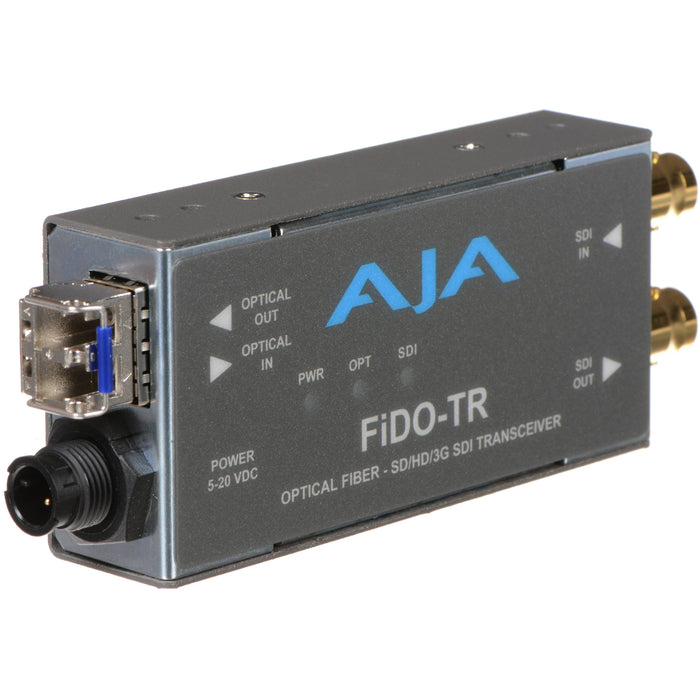

AJA FiDO Single-Channel 3G-SDI / LC Fiber Transceiver

by AJA
Availability:
In stock 3-5 days
$815.00 - $815.00
$815.00
$815.00 - $815.00
$815.00

MODEL: FIDO-TR

SKU: FIDO-TR


  • Overview
  • Features
  • Specifications

The AJA FiDO-TR is a compact, single-channel 3G-SDI to fiber optic transceiver, offering both transmission and reception over a single LC fiber link. Designed for bidirectional HD video signal conversion, it’s ideal for professional broadcast, AV, and live production environments requiring reliable, space-efficient signal transport.

  • Single-channel bidirectional 3G-SDI to fiber optic transceiver
  • 1x 3G-SDI input and 1x 3G-SDI output
  • 1x LC fiber optic input and 1x LC fiber optic output (single-mode)
  • Supports SDI formats: 3G/HD/SD
  • Enables simultaneous send and receive over separate fibers
  • Compact and rugged design for professional use
  • Reclocked SDI output for clean signal transmission
  • Plug-and-play operation
  • Compatible with standard single-mode fiber systems
  • Locking 2-pin power connector
  • Low power consumption
  • Ideal for broadcast, AV, and live event workflows
  • Video Formats: 3G/HD/SD-SDI
  • SDI Input: 1x 3G-SDI BNC
  • SDI Output: 1x 3G-SDI BNC
  • Fiber Input: 1x LC fiber optic (single-mode)
  • Fiber Output: 1x LC fiber optic (single-mode)
  • Reclocking: Yes, on SDI output
  • Max Resolution: Up to 1080p 60
  • Fiber Type: Single-mode
  • Wavelength: 1310 nm
  • Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
  • Power: +5 to +20 VDC, 3 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.4 lb (0.18 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
