Decimator MD-QUAD 3G/HD/SD-SDI Quad Split Multi-Viewer [Rental]
Original price
$50.00
-
Original price
$50.00
Original price
$50.00
$50.00
-
$50.00
Current price
$50.00
| /

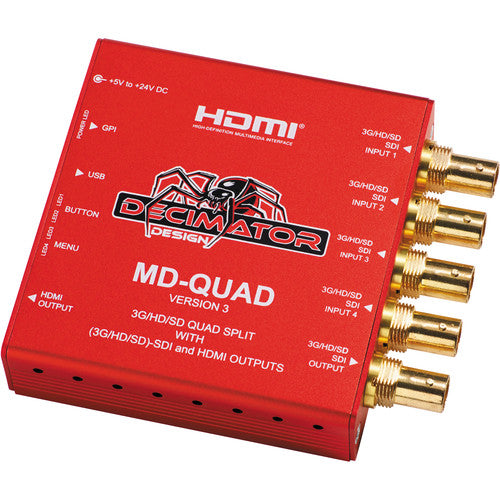

The Decimator MD Quad is a professional-grade multi-viewer that allows users to display up to four independent SDI sources on a single screen. Ideal for broadcast, live production, and post-production environments, the MD Quad delivers unmatched flexibility, supporting both quad-split and customizable viewing layouts. Featuring SDI-to-HDMI conversion, it enables seamless integration with a wide range of professional and consumer monitors. With robust build quality and versatile signal support, the MD Quad is a reliable solution for efficient monitoring in demanding video workflows.
The Key Features of the Decimator MD Quad:
- Supports up to 4 independent 3G/HD/SD-SDI inputs
- Multiple viewing layouts including quad-split and customizable options
- SDI to HDMI conversion for versatile monitoring
- Auto-detection of input signals with format support up to 1080p60
- Compact and portable design for field or studio use
- Low latency processing for real-time monitoring
- User-friendly setup via USB and software control
The Detailed Specifications for the Decimator MD Quad:
- Inputs: 4x 3G/HD/SD-SDI (auto-detecting)
- Outputs: 1x HDMI, 4x 3G/HD/SD-SDI loop-through
- Supported Formats: SD (525i/625i), HD (720p, 1080i, 1080p), 3G up to 1080p60
- Aspect Ratio: Selectable per channel (16:9 or 4:3)
- Power: +5V DC via locking power connector
- Control: USB port for configuration with PC software
- Dimensions: Approx. 123mm x 84mm x 25mm
- Weight: Approx. 0.5 lbs (220g)
- Warranty: 3-year manufacturer warranty
