Lectrosonics - DBSM Single-Battery Digital Wireless Bodypack Transmitter/Recorder (A1-B1: 470-608 MHz)
Original price
$2,842.00
-
Original price
$2,842.00
Original price
$2,842.00
$2,842.00
-
$2,842.00
Current price
$2,842.00
| /

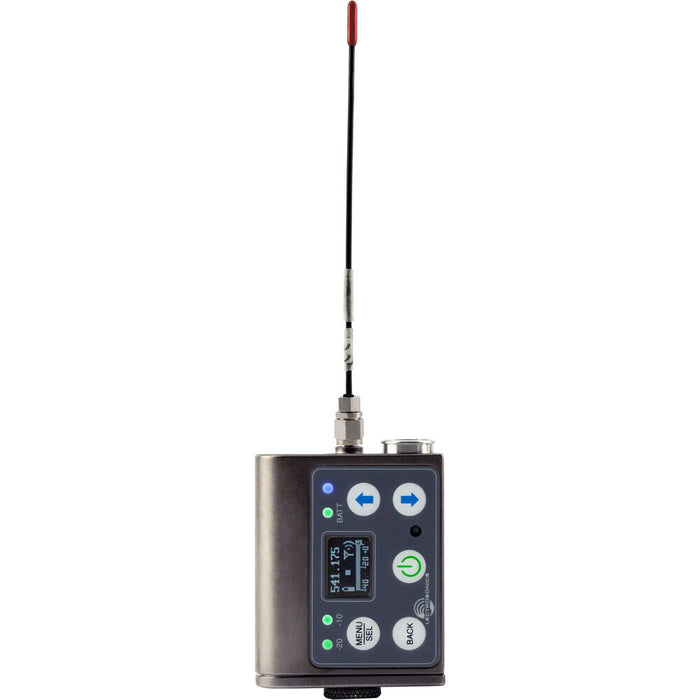

The Lectrosonics DBSM Single-Battery Digital Wireless Bodypack Transmitter/Recorder is a compact, high-performance audio transmitter designed for demanding production environments. With dual-band A1B1 tuning (470–614 MHz), integrated 32-bit float internal recording, and AES256 encryption, it’s built for reliability, security, and sonic excellence. Engineered to perform flawlessly in ENG, film, TV, and theater applications, the DBSM delivers pristine digital audio with minimal latency and full compatibility with Lectrosonics’ DSQD digital receivers. Its robust metal housing, intuitive interface, and timecode jam sync capabilities make it the go-to solution for professionals who demand the best.
The Key Features of the Lectrosonics DBSM Single-Battery Digital Wireless Bodypack Transmitter/Recorder:
- Dual-band A1B1 tuning range (470.100 – 607.950 MHz)
- 32-bit float internal microSD card recording
- Secure AES256-CTR encryption for protected transmissions
- Timecode jam sync via 2.5mm jack for seamless post-production
- Selectable transmission modes: Standard, Dante, and Hybrid
- OLED display with intuitive navigation
- IR sync and USB configuration via Lectrosonics Wireless Designer software
- Rugged machined aluminum housing with waterproof sealing
- Up to 12 hours runtime with rechargeable LB-50 battery
- Compatible with Lectrosonics lavalier and headset microphones
The Detailed Specifications for the Lectrosonics DBSM Single-Battery Digital Wireless Bodypack Transmitter/Recorder:
- Frequency Range: A1B1 band, 470.100 – 607.950 MHz
- RF Output Power: Selectable – 10 mW, 25 mW, 50 mW
- Audio Bandwidth: 20 Hz to 20 kHz ±1 dB
- Signal-to-Noise Ratio: 110 dB (A-weighted)
- MicroSD Recording Format: 32-bit float WAV, 48 kHz sample rate
- Encryption: AES256-CTR
- Latency: 1.6 ms end-to-end
- Battery Type: Lectrosonics LB-50 Li-ion rechargeable pack
- Battery Life: Up to 12 hours (mode dependent)
- Timecode Sync: Supported, 2.5mm input/output
- Dimensions: 3.14 x 2.38 x 0.66 inches (79.8 x 60.5 x 16.8 mm)
- Weight: 3.7 oz (105 g) with battery
- Construction: Machined aluminum, weather-resistant design
- Display: High-contrast OLED, menu-driven interface
- Connector: TA5M mic input, 2.5mm timecode, USB-C for updates
