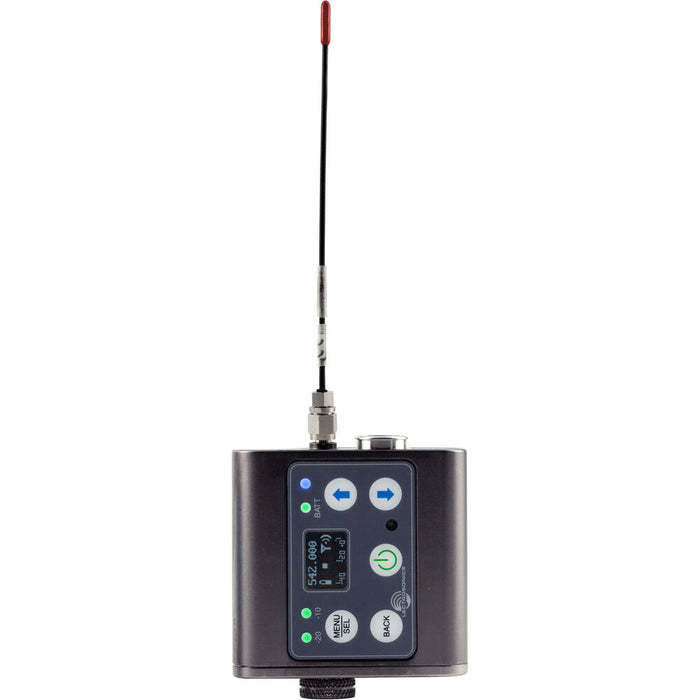

Lectrosonics - DBSM Dual-Battery Digital Wireless Bodypack Transmitter/Recorder (A1-B1: 470-608 MHz)
Original price
$2,944.00
-
Original price
$2,944.00
Original price
$2,944.00
$2,944.00
-
$2,944.00
Current price
$2,944.00
| /
The Lectrosonics DBSM Dual-Battery Digital Wireless Bodypack Transmitter/Recorder (DBSMD-A1B1) is a professional-grade digital wireless bodypack transmitter and recorder, engineered for mission-critical audio capture in film, television, and live production. Designed with a dual AA battery configuration, this advanced transmitter offers extended runtime, improved thermal performance, and an internal microSD recorder for redundant backup.
Operating in the A1B1 frequency range (470.100 to 607.950 MHz), the DBSM delivers rock-solid wireless transmission with 24-bit/48 kHz digital audio quality and encrypted signal security. Its rugged metal chassis, intuitive menu navigation, and compatibility with Lectrosonics' DSQD, DCR822, and M2R receivers make it a top-tier choice for professionals demanding uncompromising performance in the field.
The Key Features of the Lectrosonics DBSM Dual-Battery Digital Wireless Bodypack Transmitter/Recorder (DBSMD-A1B1):
- Dual AA battery design for extended operation and efficient heat dissipation
- 24-bit/48 kHz digital audio with selectable encryption for secure transmission
- Internal microSD recorder with timecode jam sync support for backup recording
- Wide 470.100 to 607.950 MHz tuning range (A1B1 block)
- IR sync and USB configuration via Lectrosonics Wireless Designer software
- Compact, rugged aluminum housing built for professional production environments
- Selectable RF power output: 10, 25, or 50 mW
- Compatibility with Lectrosonics digital and hybrid receivers
The Detailed Specifications for the Lectrosonics DBSM Dual-Battery Digital Wireless Bodypack Transmitter/Recorder (DBSMD-A1B1):
- Model: DBSMD-A1B1
- Frequency Range: 470.100 – 607.950 MHz (A1B1)
- RF Output Power: Selectable 10, 25, or 50 mW
- Audio Frequency Response: 20 Hz – 20 kHz
- Dynamic Range: 110 dB (A-weighted)
- Audio Input Connector: TA5M
- Battery Type: Dual AA lithium, NiMH, or alkaline
- Battery Life: Up to 8 hours (depending on battery type and settings)
- Recording Format: 24-bit / 48 kHz WAV, BWF
- Recording Media: microSD/microSDHC card
- Timecode Support: Jam sync via 5-pin input
- Dimensions: 2.4 x 3.2 x 0.75 inches (W x H x D)
- Weight: 4.4 oz (124 g) without batteries
- Enclosure: Machined aluminum with laser-engraved markings
