Lectrosonics - DBu-LEMO Digital Bodypack Wireless Transmitter (470-608 MHz)
Original price
$2,796.00
-
Original price
$2,796.00
Original price
$2,796.00
$2,796.00
-
$2,796.00
Current price
$2,796.00
| /
The Lectrosonics DBu-LEMO Digital Bodypack Wireless Transmitter combines cutting-edge digital wireless technology with a robust, compact form factor designed for professional broadcast, film, and live performance applications. Featuring a secure LEMO input, this transmitter supports 100% digital audio transmission with 256-bit AES encryption for uncompromised signal integrity and security. The DBu-LEMO offers a wide 470–608 MHz tuning range, ultra-low latency, and compatibility with Lectrosonics' DSQD digital receivers. Built for durability and high performance, it’s ideal for demanding production environments that require flawless wireless audio.
The Key Features of the Lectrosonics DBu-LEMO Digital Bodypack Wireless Transmitter:
- Digital transmission with 24-bit/48 kHz audio quality
- Secure 3-pin LEMO microphone input
- 256-bit AES encryption for secure communications
- Wide tuning range: 470.100 to 607.950 MHz
- Selectable RF power settings: 25 and 50 mW
- Ultra-low audio latency: 1.4 ms
- Compact and lightweight aluminum housing
- Compatible with Lectrosonics DSQD receivers

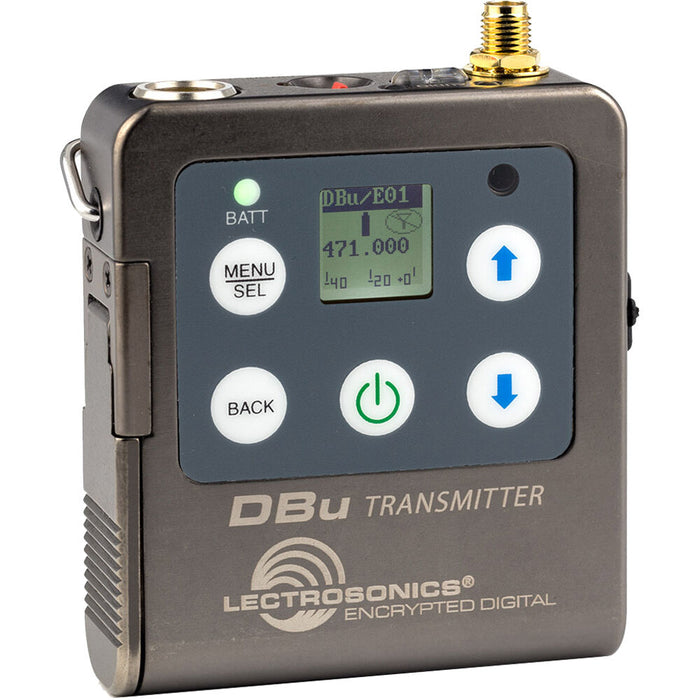

- OLED screen with intuitive menu navigation
- Rechargeable Li-ion battery (LB-50) with USB-C charging
The Detailed Specifications for the Lectrosonics DBu-LEMO Digital Bodypack Wireless Transmitter:
- Transmission Type: Digital 100% duty cycle RF
- Frequency Range: 470.100 to 607.950 MHz (band dependent)
- RF Power Output: Selectable 25 mW or 50 mW
- Audio Bandwidth: 20 Hz to 20 kHz (+0.5/-1.5 dB)
- Audio Latency: 1.4 milliseconds

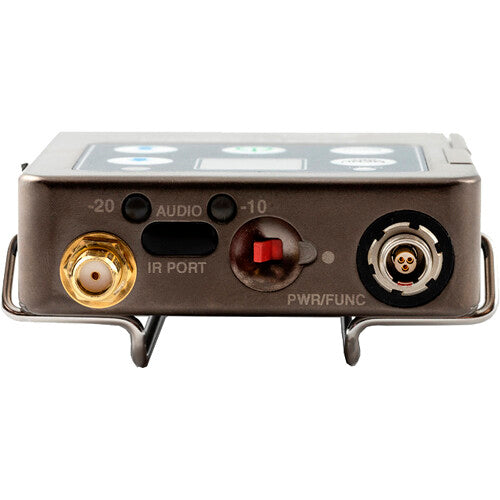

- Microphone Input: 3-pin LEMO connector
- Encryption: AES 256-bit CTR mode
- Display: OLED for status and menu navigation
- Battery Type: LB-50 rechargeable Li-ion
- Battery Life: Up to 7 hours at 25 mW RF power
- Housing: Machined aluminum, black anodized finish
- Dimensions: 2.52 x 2.03 x 0.66 inches (64.1 x 51.6 x 16.8 mm)
- Weight: 2.9 oz (82 g) with battery
