Lectrosonics - DCR822 Compact Dual-Channel Digital Wireless Receiver (A1/B1: 470-614 MHz)
Original price
$5,922.00
-
Original price
$5,922.00
Original price
$5,922.00
$5,922.00
-
$5,922.00
Current price
$5,922.00
| /

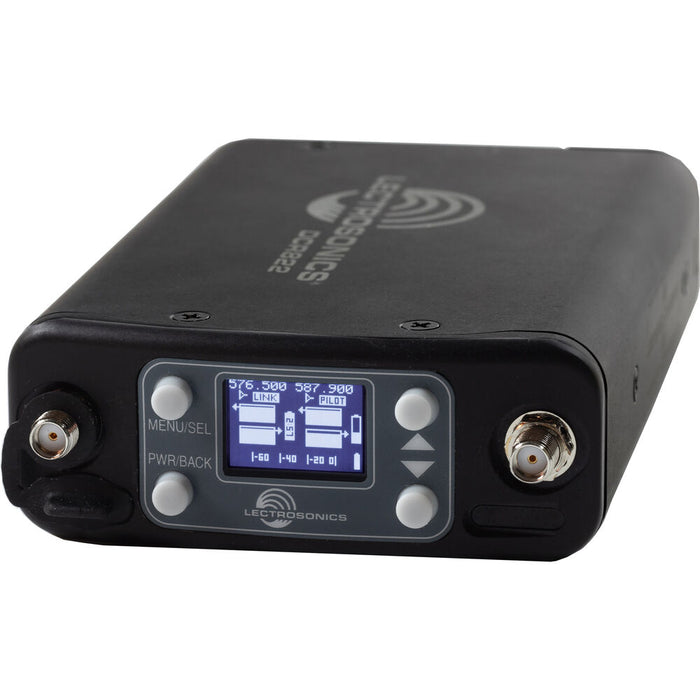

The Lectrosonics DCR822-A1B1 Compact Dual-Channel Digital Wireless Receiver is a professional-grade, compact dual-channel digital wireless receiver designed for high-end film, TV, and location sound applications. Offering robust RF performance and compatibility with both digital and analog transmitters, the DCR822 operates in the A1B1 frequency band (470.100 to 614.375 MHz), providing wideband tuning and exceptional audio quality. With AES256-CTR encryption, Dante digital audio output, SmartNR noise reduction, and an intuitive user interface, the DCR822 delivers industry-leading performance in a rugged, portable form factor. Built for production environments, it fits perfectly in portable bags and on-camera setups.
The Key Features of the Lectrosonics DCR822-A1B1 Compact Dual-Channel Digital Wireless Receiver:
- Dual-channel digital receiver with wideband tuning (470.100–614.375 MHz)
- Compatibility with Lectrosonics digital and analog transmitters
- Smart Tuning for optimal frequency selection and interference avoidance
- AES256-CTR encryption for secure transmissions
- Dante digital audio networking via optional adapter
- SmartNR noise reduction for cleaner audio in demanding environments
- Flexible output options including analog, AES3, and Dante
- Compact, rugged housing ideal for ENG, film, and location recording
- High-resolution LCD with intuitive menu navigation
- USB and microSD support for firmware updates and data logging
The Detailed Specifications for the Lectrosonics DCR822-A1B1 Compact Dual-Channel Digital Wireless Receiver:
- Frequency Range: A1B1 band (470.100 – 614.375 MHz)
- Tuning Steps: 25 or 100 kHz selectable
- Receiver Type: True diversity, digital hybrid and digital compatibility
- Audio Output: Analog balanced (TA5), AES3, Dante (via DBu-AES3D2 adapter)
- Dynamic Range: 110 dB A-weighted
- THD+N: 0.03% or less (1 kHz, +10 dBu output)
- Latency: 1 ms in digital mode
- Encryption: AES256-CTR for secure transmissions
- Display: High-resolution LCD with backlight
- Power Requirements: 6–18 VDC, 2.5 W typical
- Firmware Update: Via USB port
- Card Slot: microSD for data logging
- Dimensions: 3.05 × 4.88 × 1.44 inches (77.5 × 124 × 36.6 mm)
- Weight: 14.4 oz (408 g) with antennas
