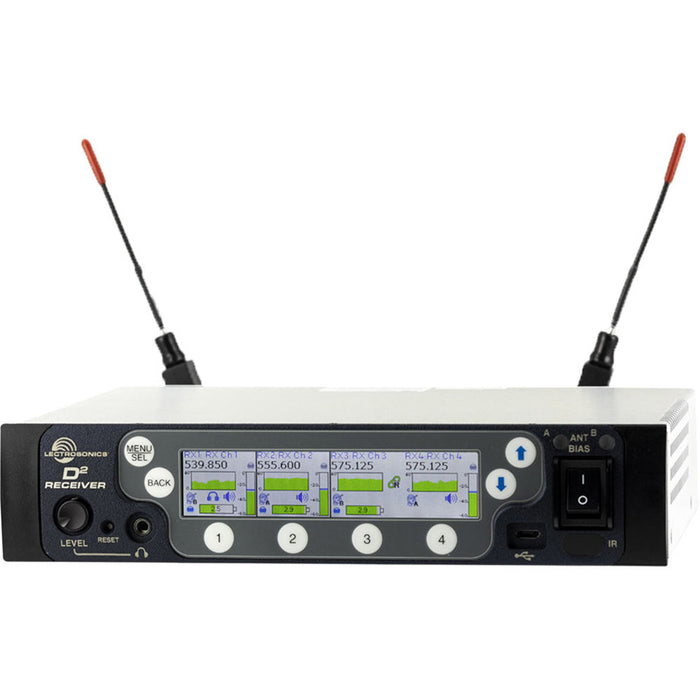

Lectrosonics - DSQD 4-Channel Digital Wireless Receiver with Dante (470-608 MHz)
Original price
$8,701.00
-
Original price
$8,701.00
Original price
$8,701.00
$8,701.00
-
$8,701.00
Current price
$8,701.00
| /
The Lectrosonics DSQD is a professional-grade 4-channel digital wireless receiver designed for high-demand production environments including broadcast, live sound, and location recording. Featuring Dante digital audio networking, analog, and AES3 outputs, the DSQD provides unmatched versatility and audio quality. The receiver operates across a wide tuning range and supports multiple digital and legacy transmission modes for maximum compatibility. Housed in a compact 1RU chassis, the DSQD integrates seamlessly into modern workflows, delivering pristine audio, advanced RF performance, and remote control via Ethernet.
The Key Features of the Lectrosonics DSQD:
- 4-channel digital wireless receiver in a 1RU rack-mount chassis
- Dante digital audio networking with redundant ports
- Analog and AES3 digital audio outputs
- Wide tuning range with tracking front-end filters
- Compatible with Lectrosonics digital and Digital Hybrid Wireless® transmitters
- Ethernet control and monitoring with integration capabilities
- High-resolution OLED display with intuitive navigation
- Independent RF and audio outputs per channel
- Encryption-compatible for secure transmissions
The Detailed Specifications for the Lectrosonics DSQD:
- Channels: 4 independent digital wireless receiver channels
- RF Tuning Range: 470 – 614 MHz (region dependent)

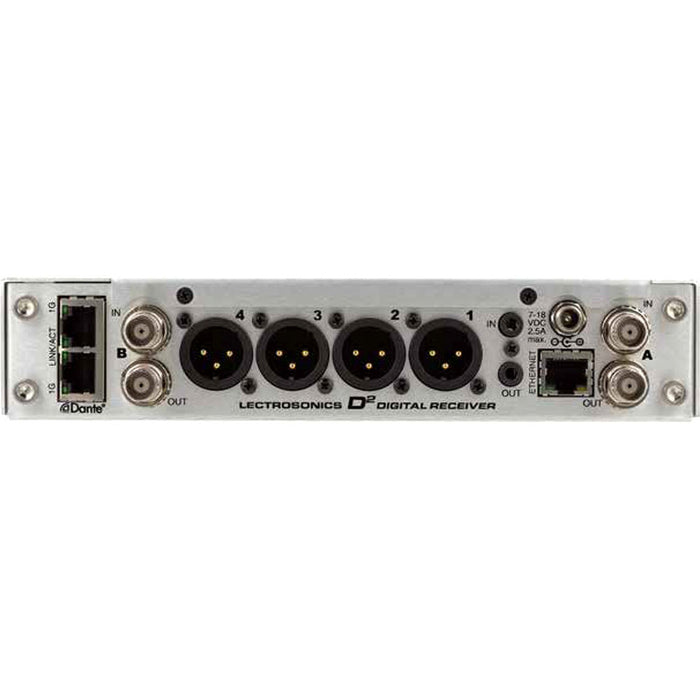

- Output Types: Dante, AES3 (XLR), analog (XLR)
- Front-End Filtering: Tracking filters for superior selectivity
- Network Interface: Dual Dante ports with primary/redundant mode
- Encryption: AES 256-bit compatible (with digital transmitters)
- Display: High-contrast OLED for clear visibility
- Compatibility: Digital Hybrid Wireless®, Duet, D2 series transmitters
- Power Requirements: 100-240 VAC, 50/60 Hz, universal internal supply
- Chassis: 1RU rack-mountable steel enclosure
- Dimensions: 1.75 x 19 x 10.5 in (H x W x D)
- Weight: Approx. 6.2 lbs (2.8 kg)
