Lectrosonics - DSSM-A1B1 Water-Resistant Micro Digital Wireless Transmitter (470-607 MHz)
Original price
$3,576.00
-
Original price
$3,576.00
Original price
$3,576.00
$3,576.00
-
$3,576.00
Current price
$3,576.00
| /
The Lectrosonics DSSM-A1B1 Water-Resistant Digital Wireless Transmitter is a compact, water-resistant micro digital wireless transmitter designed for demanding professional audio applications. Operating in the A1B1 frequency band (470.100–607.950 MHz), it delivers pristine audio quality, low latency performance, and reliable RF transmission in a rugged, discreet housing. Ideal for film, TV, theater, and live production, the DSSM supports encryption for secure transmission and is compatible with Lectrosonics D-squared and DCR digital receivers. Its ultra-compact design makes it perfect for concealed placement, and its water-resistant housing ensures reliability in tough environments.
The Key Features of the Lectrosonics DSSM-A1B1 Water-Resistant Digital Wireless Transmitter:

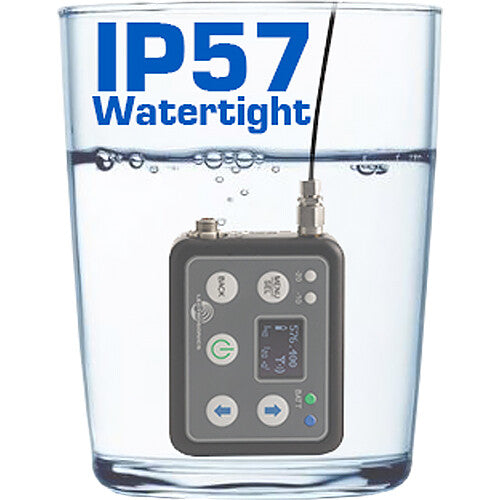

- Water-resistant housing for reliable outdoor or high-humidity use

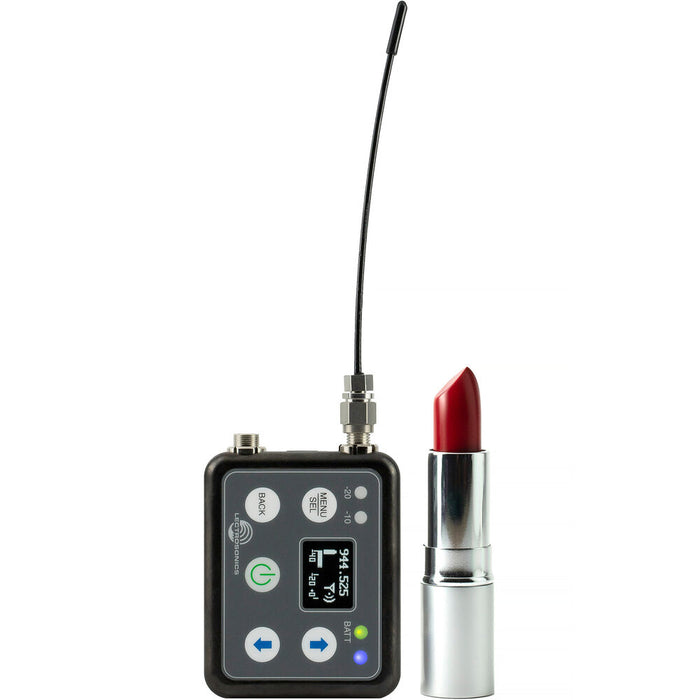

- Compact and lightweight design for discreet body-worn applications
- Operates in the A1B1 frequency range: 470.100–607.950 MHz
- Fully digital transmission with 24-bit audio for superior sound quality
- Ultra-low latency ideal for live and broadcast applications
- 256-bit AES encryption for secure audio transmission
- Compatible with Lectrosonics D-squared and DCR digital receivers
- Wide input gain range with selectable mic/line level input
- USB and infrared interfaces for firmware updates and quick setup
- Internal rechargeable battery with USB-C charging port
The Detailed Specifications for the Lectrosonics DSSM-A1B1 Water-Resistant Digital Wireless Transmitter:
- Frequency Range: A1B1 (470.100–607.950 MHz)
- Modulation: 100% digital, 24-bit/48kHz audio conversion
- Latency: < 1 millisecond
- Encryption: 256-bit AES for secure communication
- Input Connector: TA5M for mic/line inputs
- Audio Input Level: Adjustable for mic or line level sources
- Output Power: Selectable (10, 25, 50 mW)
- Battery Type: Internal lithium-ion rechargeable
- Battery Life: Up to 6 hours depending on RF power setting
- Charging Interface: USB-C port
- Weight: Approx. 2.4 oz (68 g) with battery
- Dimensions: 2.4 x 1.5 x 0.6 in (61 x 38 x 15 mm)
- Housing: Water-resistant, machined aluminum casing
- Compatible Receivers: Lectrosonics DSQD, DCR822, M2R, and others in the D² system
