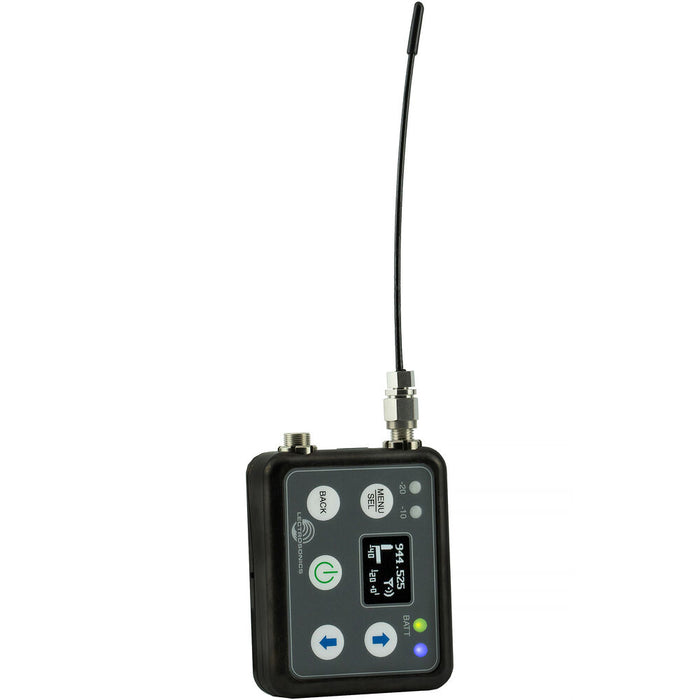

The Lectrosonics DSSM/E07-941 is a compact, water-resistant digital wireless transmitter engineered for professional audio applications where reliability, audio quality, and discretion are paramount. Ideal for film, broadcast, and theater use, the DSSM offers pristine audio performance with 24-bit/48 kHz digital transmission, advanced encryption for secure communication, and a rugged yet ultra-miniature form factor designed for talent concealment. Operating in the 941 MHz band (E07 block), the DSSM/E07-941 is built to perform in challenging RF environments while withstanding moisture, sweat, and environmental conditions.
The Key Features of the Lectrosonics DSSM/E07-941:

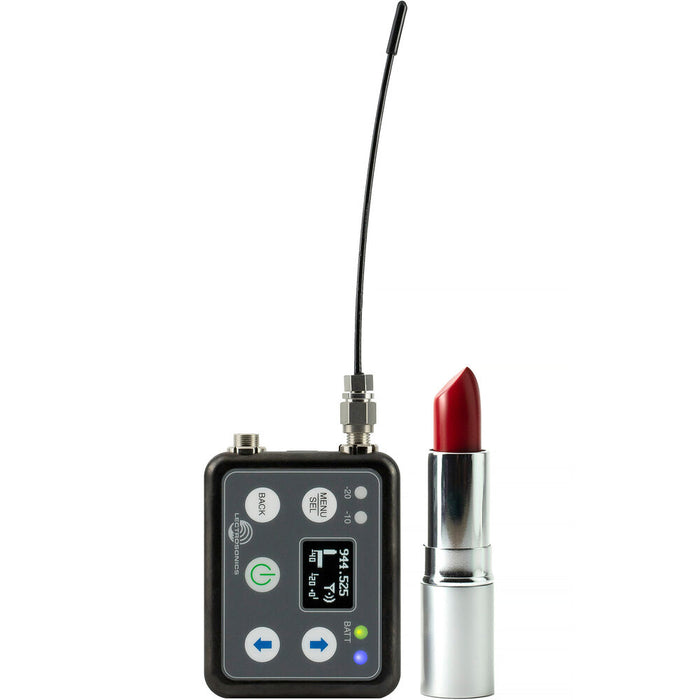

- Ultra-compact design for discreet placement and concealment

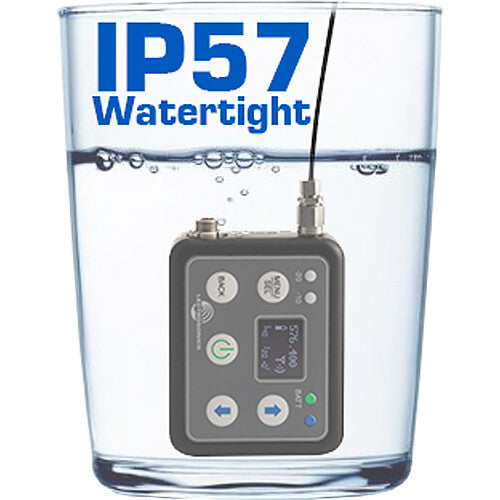

- Water-resistant housing ideal for active and high-humidity environments
- 24-bit digital audio transmission for pristine sound quality
- Operates in the 941 MHz (E07) band with wide tuning range
- Selectable output power levels: 10, 25, and 50 mW
- 256-bit AES encryption for secure audio transmission
- Wide input gain adjustment for various microphone types
- IR sync for fast, hassle-free pairing with receivers
- High-efficiency power circuitry for extended battery life
- Compatible with Lectrosonics DSQD and DCR822 receivers
The Detailed Specifications for the Lectrosonics DSSM/E07-941:
- Frequency Range: 941.525 – 959.825 MHz (E07 Block)
- Transmission Type: Digital 24-bit, 48 kHz sampling
- Encryption: AES 256-bit
- Output Power: Selectable 10 mW, 25 mW, 50 mW
- Input Connector: Micro LEMO 3-pin
- Input Gain Range: Adjustable in 1 dB steps over 44 dB
- Power Source: 1 x AAA lithium battery
- Battery Life: Up to 6 hours with lithium battery
- Dimensions: 2.36 x 1.25 x 0.63 inches (60 x 32 x 16 mm)
- Weight: 1.5 oz (42 g) with battery
- Operating Temperature: -20°C to +50°C
- Compatible Receivers: DSQD, DCR822, and other Lectrosonics Digital Hybrid systems
