Lectrosonics - HHa-A1 Handheld Wireless Transmitter (A1: 470-537 MHz)
Original price
$2,306.00
-
Original price
$2,306.00
Original price
$2,306.00
$2,306.00
-
$2,306.00
Current price
$2,306.00
| /
SKU: HHA-A1
(No Capsule Included)

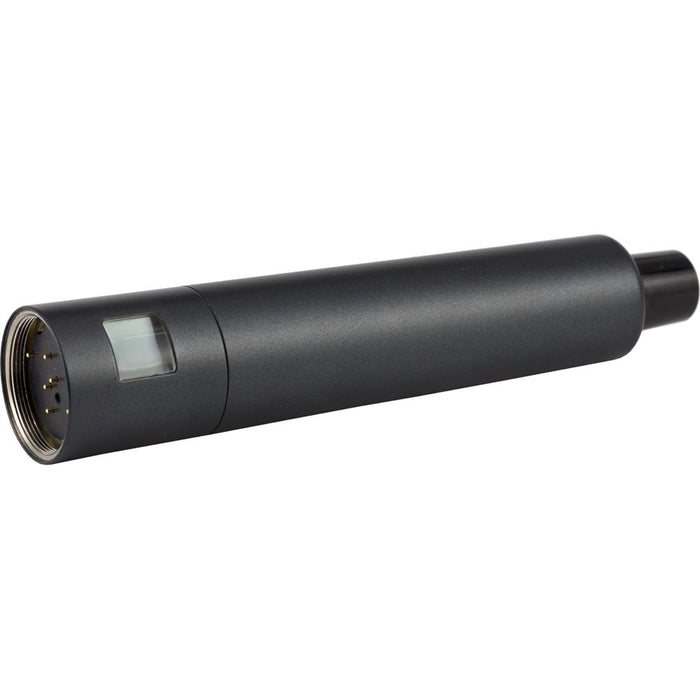

The Lectrosonics HHa-A1 Handheld Wireless Transmitter (No Capusule) is a professional-grade handheld wireless transmitter designed for live sound, broadcast, and studio applications. Built for flexibility and performance, it features a modular capsule mount compatible with standard thread-on capsules, allowing users to select the best mic head for their needs. Operating in the A1 frequency band (470.100–537.575 MHz), the HHa-A1 delivers pristine audio with 24-bit digital hybrid transmission and robust RF reliability. Its intuitive interface, rugged aluminum construction, and wide tuning range make it a trusted tool for high-demand audio environments.
The Key Features of the Lectrosonics HHa-A1 Handheld Wireless Transmitter (No Capusule):
- 470.100 to 537.575 MHz tuning range (A1 band)
- Modular capsule design – compatible with standard thread-on capsules (Shure, Electro-Voice, etc.)
- Digital Hybrid Wireless® technology for superior audio clarity
- Selectable RF output power: 25, 50, or 100 mW
- Rugged machined aluminum housing with powder-coated finish
- Backlit LCD screen for easy navigation and setup
- Integrated membrane switch interface with lockout option
- Wide 25.5 MHz tuning bandwidth in 100 kHz steps
- IR sync for fast frequency pairing with receivers
- Powered by 2 AA batteries (alkaline, lithium, or NiMH)
The Detailed Specifications for the Lectrosonics HHa-A1 Handheld Wireless Transmitter (No Capsule):
- Frequency Range: A1 Band (470.100–537.575 MHz)
- RF Output Power: 25, 50, or 100 mW (selectable)
- Transmission Mode: Digital Hybrid Wireless®
- Audio Frequency Response: 35 Hz to 20 kHz (+/-1 dB)
- Dynamic Range: 110 dB (A-weighted)
- Input Configuration: Modular head mount (no capsule included)
- Controls: Membrane switches with menu navigation and LCD display
- Display: Backlit LCD with power-saving mode
- Battery Type: 2 x AA (alkaline, lithium, or NiMH)
- Battery Life: Up to 5.5 hours (depending on battery type and RF power)
- Dimensions: 9.5 x 1.9 inches (241 x 48 mm)
- Weight: 12 oz (340 grams) with batteries
- Housing Material: Machined aluminum with powder-coated finish
- IR Sync: Yes – for quick pairing with compatible receivers
