Lectrosonics - L-Series LMb Bodypack Wireless Transmitter (B1: 537 to 614 MHz) (LMB-B1)
Original price
$1,563.00
-
Original price
$1,563.00
Original price
$1,563.00
$1,563.00
-
$1,563.00
Current price
$1,563.00
| /

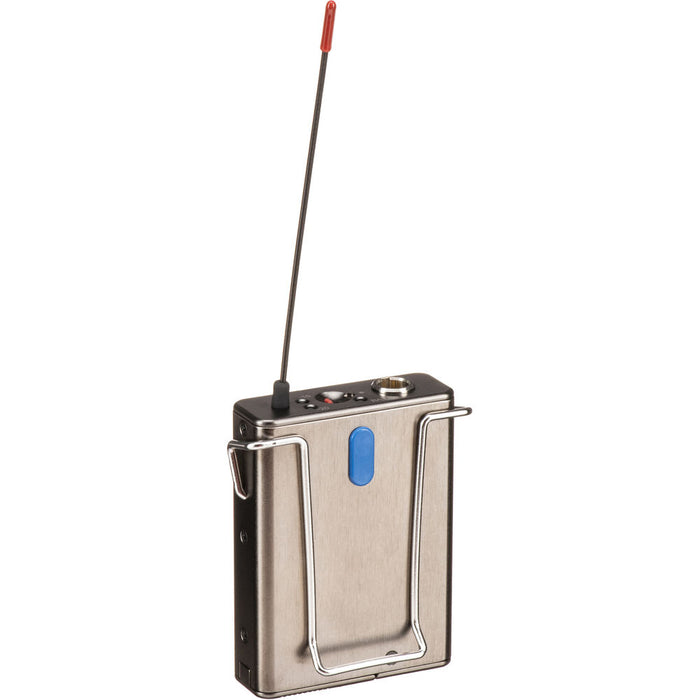

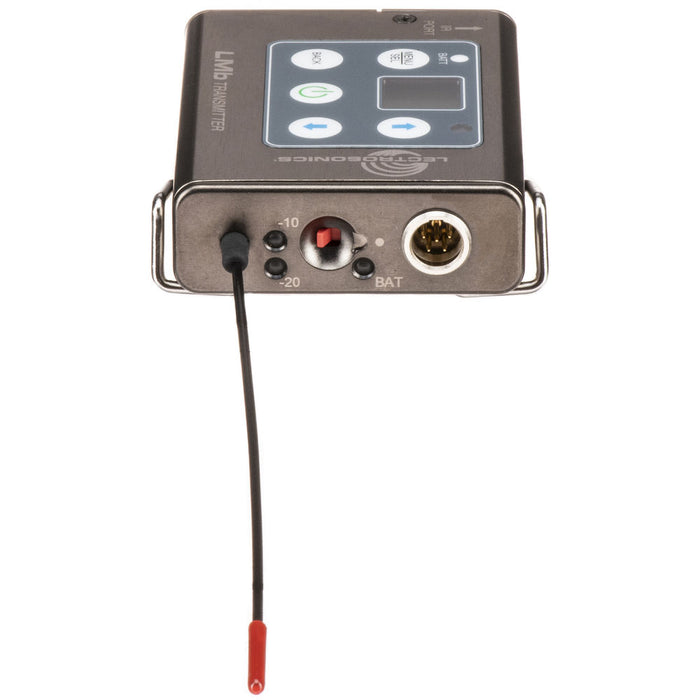

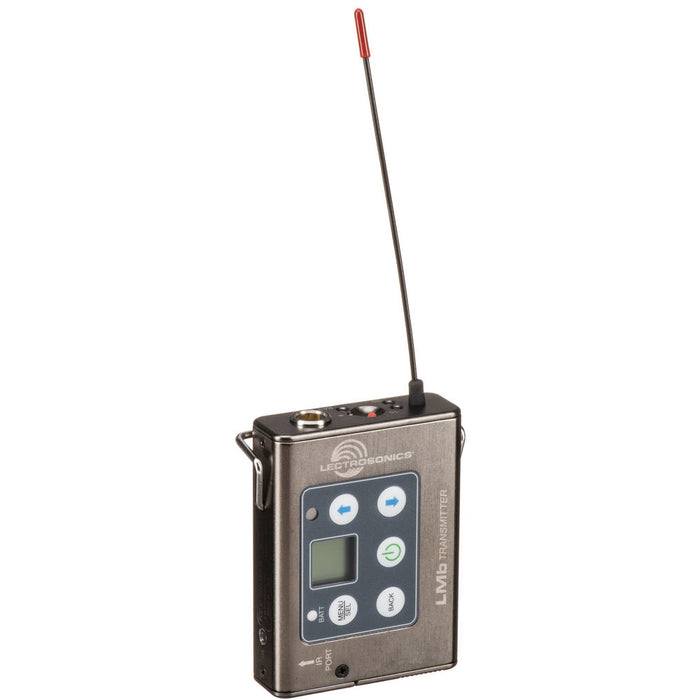

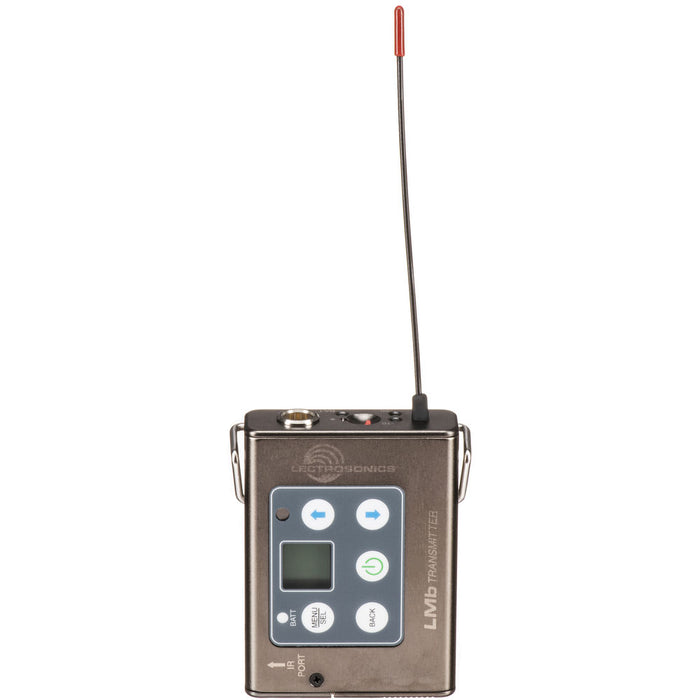

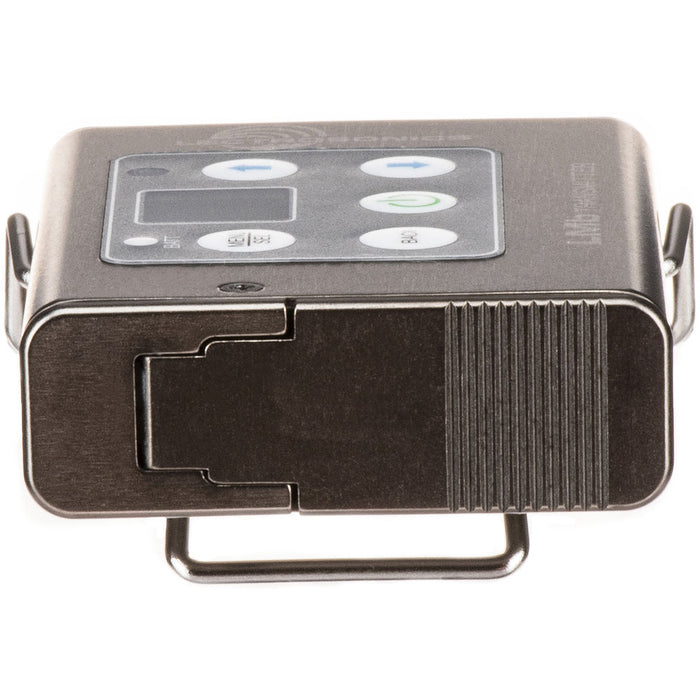

The Lectrosonics L-Series LMb Bodypack Wireless Transmitter (LMB-B1) offers outstanding audio performance and flexible operation in a compact, rugged form factor. Designed for field production, broadcast, and location sound, the LMb-B1 operates in the B1 frequency band (537-614 MHz) and delivers a generous 75 MHz tuning range. With 100 mW RF power output, digital hybrid wireless technology, and compatibility with Lectrosonics receivers, it ensures reliable, crystal-clear audio. The transmitter features an easy-to-read LCD, intuitive menu navigation, and durable metal housing built to withstand the rigors of professional use.
The Key Features of the Lectrosonics L-Series LMb Bodypack Wireless Transmitter (LMB-B1):
- Operates in B1 frequency band (537–614 MHz)
- 75 MHz tuning range with 3072 selectable frequencies
- Digital Hybrid Wireless® technology for superior audio quality
- 100 mW RF power output for extended transmission range
- Rugged, lightweight aluminum housing for durability
- Multi-function LCD interface for setup and monitoring
- Servo bias input for compatibility with a wide range of lavalier mics
- IR sync for quick pairing with receivers
- Compact design ideal for talent wearability
- Powered by two AA batteries with extended run time
The Detailed Specifications for the Lectrosonics L-Series LMb Bodypack Wireless Transmitter (LMB-B1):
- Frequency Range: B1 (537.600 – 614.375 MHz)
- Tuning Range: 75 MHz
- Number of Frequencies: 3072 (in 25 kHz steps)
- RF Power Output: 100 mW
- Modulation Type: Digital Hybrid Wireless
- Input: TA5M connector with servo bias mic input
- Controls: Membrane switches with LCD interface
- Display: LCD with backlight
- Audio Frequency Response: 32 Hz – 20 kHz ±1 dB
- Battery Type: Two AA (alkaline, lithium, or NiMH)
- Battery Life: Up to 6 hours (alkaline), 8+ hours (lithium)
- Dimensions: 2.5 × 3.4 × 0.75 in (63.5 × 86.4 × 19 mm)
- Weight: 5.5 oz (156 g) with batteries
- Housing: Machined aluminum with anodized finish
