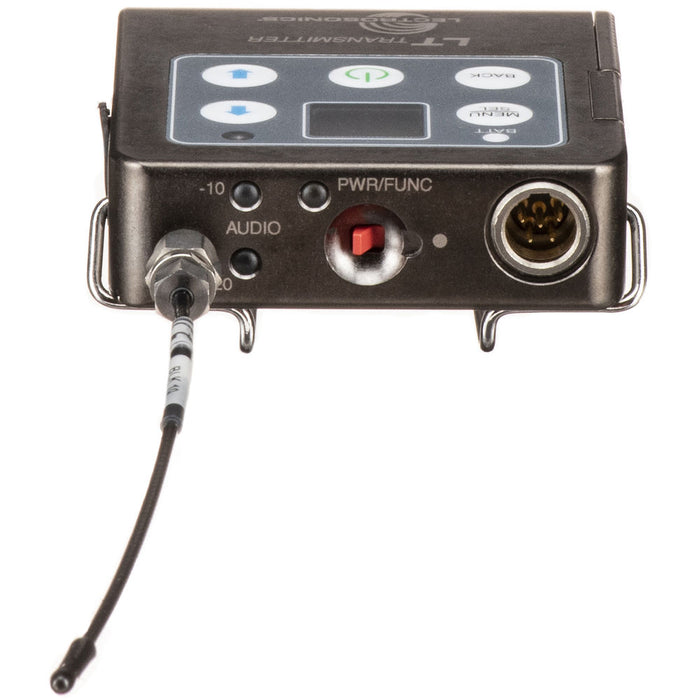

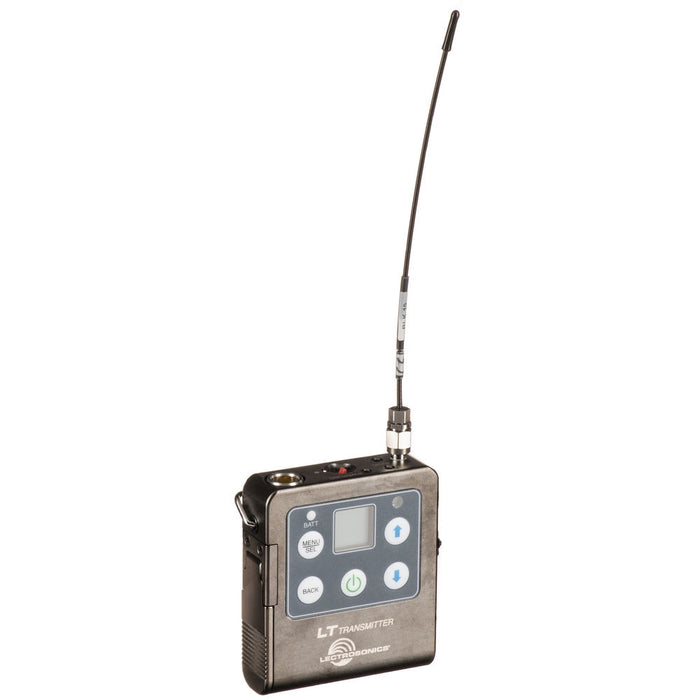

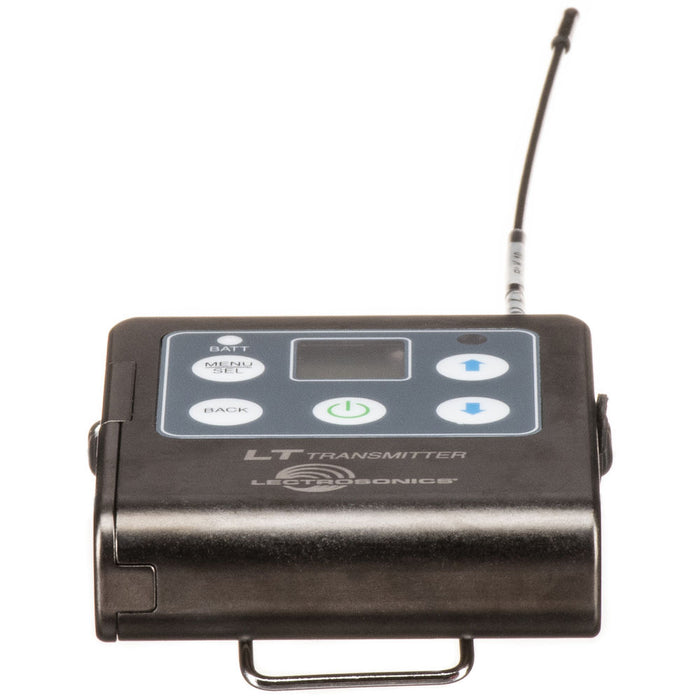

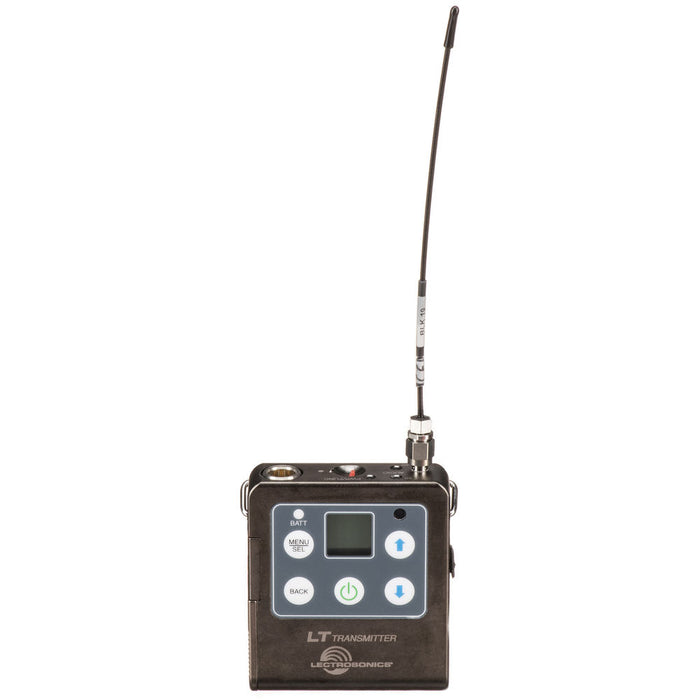

Lectrosonics LT-B1 Bodypack Wireless Transmitter (537–607 MHz)

Lectrosonics - L-Series LT Bodypack Wireless Transmitter (B1: 537 to 607 MHz) (LT-B1)

by Lectrosonics
Availability:
Low stock
$2,202.00 - $2,202.00
$2,202.00
$2,202.00 - $2,202.00
$2,202.00

SKU: LT-B1

  • Overview
  • Features
  • Specifications

The Lectrosonics L-Series LT Bodypack Wireless Transmitter (B1: 537-607 MHz) is a compact, high-performance transmitter engineered for demanding professional audio environments. Designed with Lectrosonics’ renowned Digital Hybrid Wireless® technology, the LT-B1 ensures crystal-clear audio quality and robust RF performance across a 75 MHz tuning range. Its rugged, machined aluminum housing is built for reliability in field and stage conditions, while IR sync and USB port offer flexible setup and firmware updates. Compatible with a wide range of microphones via the TA5M input, the LT-B1 is ideal for film, broadcast, theater, and live sound applications requiring secure, interference-free wireless operation.

The Key Features of the Lectrosonics L-Series LT Bodypack Wireless Transmitter (B1: 537-607 MHz):

  • Digital Hybrid Wireless® technology for pristine audio transmission
  • 75 MHz tuning bandwidth for enhanced frequency agility
  • TA5M input compatible with lavaliers, headworn mics, and instrument cables
  • IR sync for fast, error-free pairing with receivers
  • Selectable output power: 50, 100 mW for RF range optimization
  • Solid machined aluminum housing for maximum durability
  • USB port for firmware updates and advanced configuration
  • LCD interface for intuitive setup and status monitoring

The Detailed Specifications for the Lectrosonics L-Series LT Bodypack Wireless Transmitter (B1: 537-607 MHz):

  • Frequency Range: B1 Block (537 – 607 MHz)
  • RF Power Output: Selectable 50 or 100 mW
  • Audio Input Connector: TA5M
  • Input Impedance: 1k Ohm
  • Audio Gain Range: 44 dB, adjustable in 1 dB steps
  • Battery Type: Two AA lithium, NiMH, or alkaline
  • Battery Life: Up to 7.5 hours (lithium, 50 mW)
  • Display: Backlit LCD with menu navigation
  • Sync Method: Infrared (IR) sync with compatible receivers
  • Housing: Machined aluminum, powder-coated finish
  • Dimensions: 3.45 x 2.4 x 0.9 inches (88 x 61 x 23 mm)
  • Weight: 5.1 oz (145 g) with batteries

Detailed info on the operation of these two Lectrosonics transmitters: the LMb and LT. Each offers a 3-block tuning range of 75 MHz, Digital Hybrid Wireless® performance, IR sync and a host of other features.
