Lectrosonics - ZS-DSSM-A1B1-CH Water-Resistant Micro Digital Wireless Transmitter with Charger (470-607 MHz)
Original price
$3,832.00
-
Original price
$3,832.00
Original price
$3,832.00
$3,832.00
-
$3,832.00
Current price
$3,832.00
| /

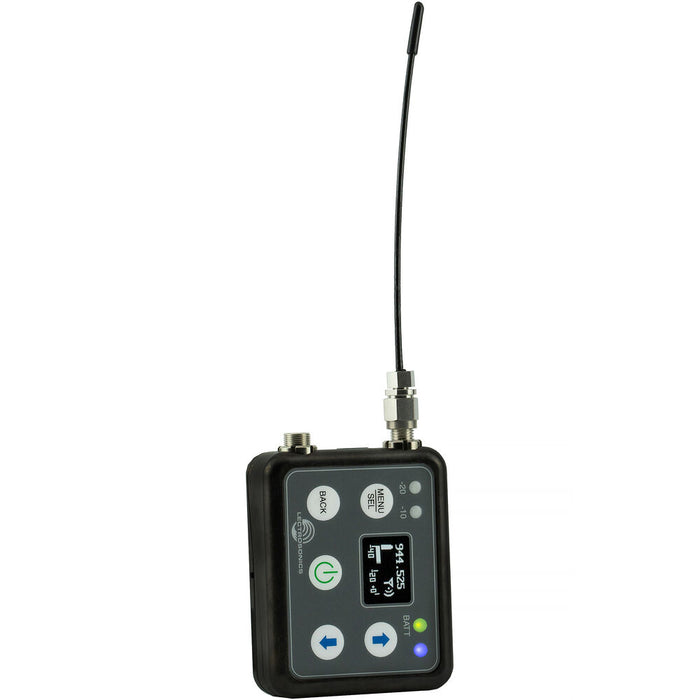

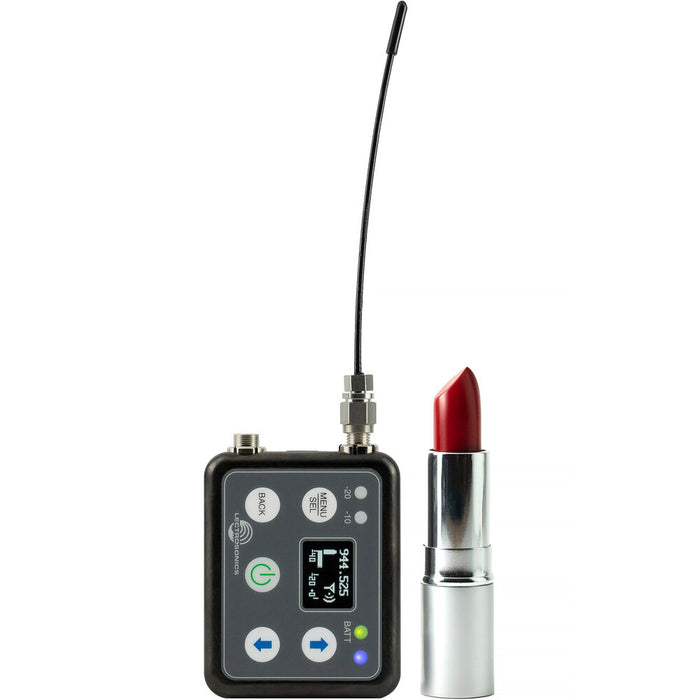

The Lectrosonics ZS-DSSM-A1B1-CH is a state-of-the-art water-resistant micro digital wireless transmitter system, ideal for professional broadcast, film, and theater applications. Compact and rugged, the DSSM transmitter features fully digital audio for pristine signal quality, operates across the A1 and B1 frequency blocks, and includes an advanced charging dock for uninterrupted workflow. Its ultra-miniature design allows for discreet placement, while IP67-rated sealing ensures reliable performance in harsh environments. Whether for high-end productions or demanding field use, this wireless system delivers uncompromised performance and durability.
The Key Features of the Lectrosonics ZS-DSSM-A1B1-CH:
- Ultra-compact digital wireless transmitter with integrated battery
- Water-resistant IP67-rated housing for rugged environmental use
- Operates in A1 and B1 frequency blocks (470.100 to 614.375 MHz)
- Fully digital transmission ensures crystal-clear, low-latency audio
- Includes charging dock for rapid battery recharging and storage
- Selectable output power: 10, 25, or 50 mW for flexible range
- Wide compatibility with Lectrosonics digital receiver systems
- OLED screen for easy setup and real-time monitoring
The Detailed Specifications for the Lectrosonics ZS-DSSM-A1B1-CH:
- Model: ZS-DSSM-A1B1-CH
- Frequency Range: A1 (470.100–537.575 MHz), B1 (537.600–614.375 MHz)
- Modulation: Digital (24-bit audio, 48 kHz sampling)
- Audio Input: Micro 3-pin connector, mic/line level selectable
- Output Power: 10 mW, 25 mW, 50 mW selectable
- Battery: Rechargeable lithium-ion (integrated)
- Water Resistance: IP67-rated (dustproof and water-resistant)
- Display: OLED with menu navigation
- Dimensions: 2.3 x 1.5 x 0.63 inches (58.4 x 38.1 x 16 mm)
- Weight: Approx. 2.2 oz (62 g) including battery
- Included Accessories: Charging cradle, USB-C cable, user guide
