Shure BLX14R B98 H10 rackmount wireless cardioid instrument microphone system with clip-on condenser mic and BLX4R receiver

Shure BLX14R/B98 Rackmount Wireless Cardioid Instrument Microphone System (H10: 542 to 572 MHz)

by Shure
Availability:
Low stock
Do you have questions about pricing?
📞 416-690-1690
✉️ info@videolink.ca
Trusted by broadcasters, venues, and production teams across Canada.

SKU: BLX14R-B98-H10

  • Overview
  • Features
  • Specifications

The Shure BLX14R/B98 Rackmount Wireless Cardioid Instrument Microphone System (H10) is a professional wireless solution designed for musicians who require accurate, hands-free instrument capture with the convenience of rackmount integration. Operating in the H10 frequency band (542–572 MHz), this system provides stable UHF performance with reduced interference, making it ideal for live performance, touring setups, and installed AV systems.

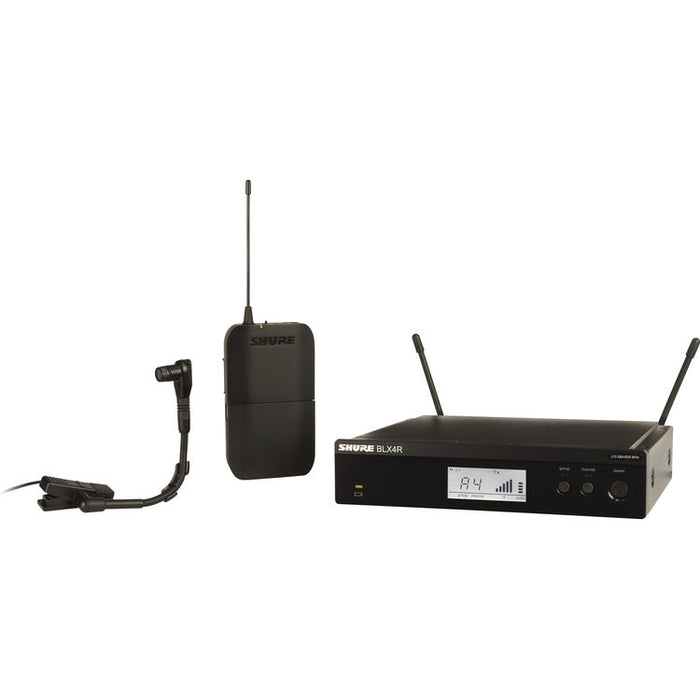

This system includes the BLX4R rackmount receiver, BLX1 bodypack transmitter, and the B98 cardioid condenser clip-on microphone. The B98 features a flexible gooseneck and integrated mounting clip, allowing for precise positioning on brass, woodwind, and percussion instruments to capture detailed, natural sound. Its cardioid polar pattern helps isolate the instrument while minimizing background noise and feedback.

The BLX4R receiver is engineered for rack integration, featuring removable antennas, included rack hardware, and enhanced RF signal monitoring for consistent operation in multi-system environments. Shure’s QuickScan frequency selection automatically identifies the best available channel, simplifying setup and ensuring reliable performance. Designed for durability and ease of use, the BLX14R/B98 system delivers dependable wireless audio for demanding professional applications.

The Key Features of Shure BLX14R/B98 Rackmount Wireless Cardioid Instrument Microphone System (H10):

  • System Type: Rackmount wireless instrument microphone system, includes receiver, bodypack transmitter, and clip-on microphone
  • Frequency Band: H10, 542–572 MHz, UHF operation, reliable RF performance, reduced interference
  • Microphone Included: B98 cardioid condenser, clip-on design, flexible gooseneck, precise instrument positioning
  • Polar Pattern: Cardioid pickup, focused sound capture, reduced background noise and feedback
  • Receiver Included: BLX4R rackmount receiver, removable antennas, rack hardware included, enhanced RF monitoring

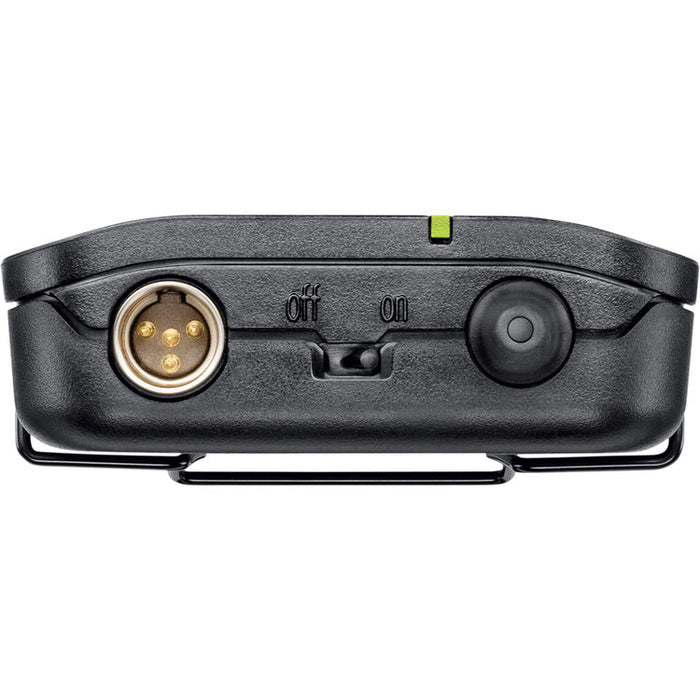

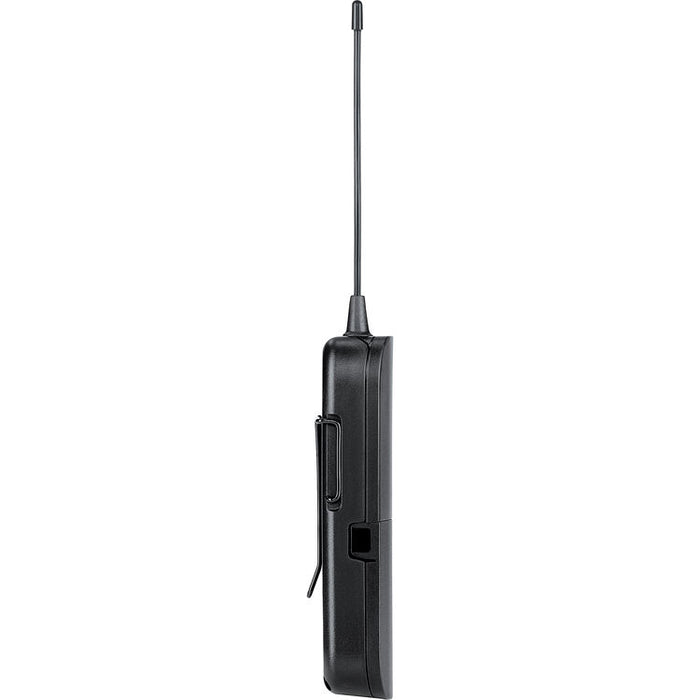

  • Transmitter Included: BLX1 bodypack transmitter, lightweight design, secure belt clip, durable construction
  • QuickScan Technology: Automatic frequency selection, finds best open channel, simplifies setup process
  • User Interface: LED indicators for RF and audio status, intuitive controls, easy system monitoring
  • Operating Range: Up to 300 feet (91 meters), reliable wireless performance for stage and installed systems
  • Application Use: Ideal for brass, woodwinds, percussion, and acoustic instruments

The Detailed Specifications for the Shure BLX14R/B98 Rackmount Wireless Cardioid Instrument Microphone System (H10):

  • System Components: BLX4R rackmount receiver, BLX1 bodypack transmitter, B98 clip-on microphone, rack hardware, power supply
  • Frequency Range: H10 band, 542–572 MHz, UHF spectrum, region-specific operation
  • Microphone Type: Condenser, cardioid, clip-on with flexible gooseneck, integrated instrument mount
  • Audio Response: 20 Hz to 20 kHz, wide frequency range, detailed and natural sound reproduction
  • Operating Range: Up to 300 ft (91 m), line-of-sight conditions, stable RF performance
  • Transmitter Type: BLX1 bodypack, compact design, adjustable gain control, TA4F connector
  • Receiver Type: BLX4R rackmount receiver, single-channel, removable antennas, enhanced RF monitoring
  • Frequency Selection: QuickScan automatic frequency selection, manual channel selection available
  • Output Connections: XLR and 1/4" outputs, balanced and unbalanced options, flexible system integration

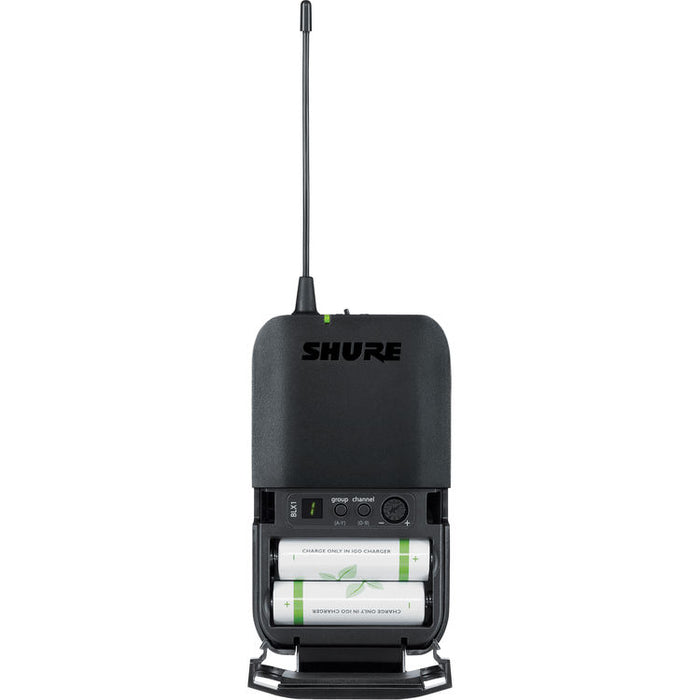

  • Power Requirements: Receiver external power supply, transmitter uses 2x AA batteries
  • Battery Life: Up to 14 hours, AA alkaline batteries, extended performance for live use
  • Indicators: LED status indicators, RF signal presence, audio signal, power status
  • Construction: Durable metal receiver chassis, rugged bodypack transmitter design, suitable for touring and installation
  • Mounting: Rackmount hardware included, standard rack compatibility, clean installation setup
  • Operating Temperature: Suitable for typical indoor and stage environments, consistent performance
  • Dimensions: Standard rackmount receiver size, compact bodypack transmitter and flexible microphone form factor
  • Weight: Lightweight system components, easy integration into rack-based setups
