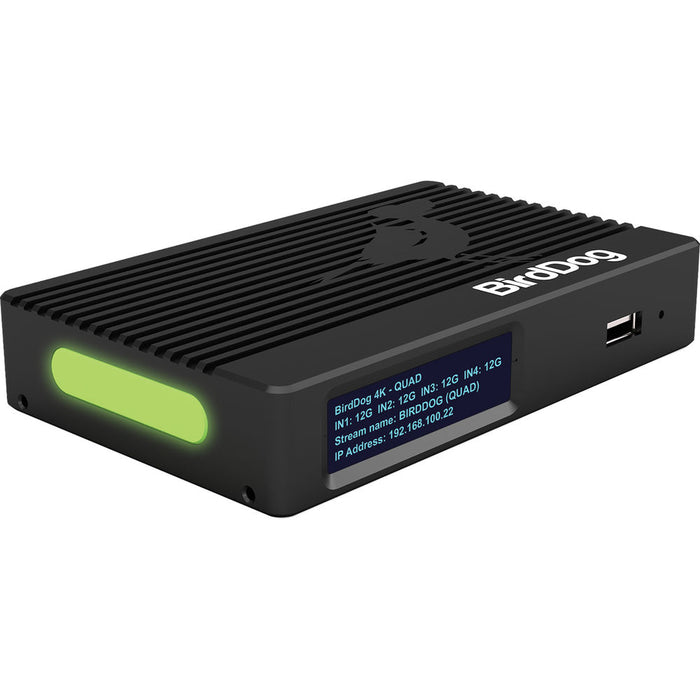

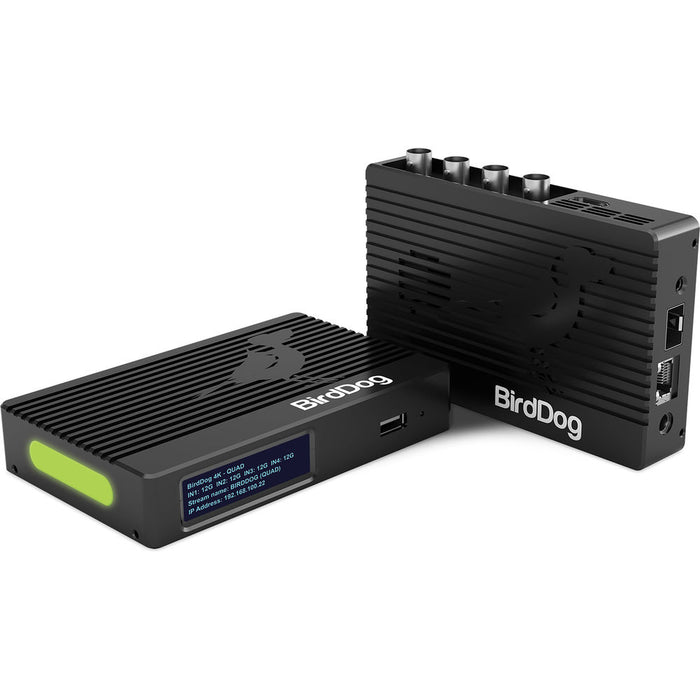

The BirdDog BD4KQUAD is a cutting-edge 4-channel 12G-SDI to 4Kp60 NDI encoder/decoder designed for professional video workflows. Built around BirdDog's custom NDI silicon chip and housed in a robust aircraft-grade aluminum case, it offers unparalleled performance and versatility. With support for up to UHD 4K/60 video input, full-bandwidth I-frame compression, and a host of advanced features, the BD4KQUAD is the ultimate solution for high-quality video distribution over NDI networks.

In Canada, Aries Pro Solutions - VideoLink is a premier reseller of all BirdDog products, offering unmatched expertise in BirdDog, NDI, and NDI|HX solutions. Our specialized knowledge ensures seamless integration and optimal performance for your production needs.

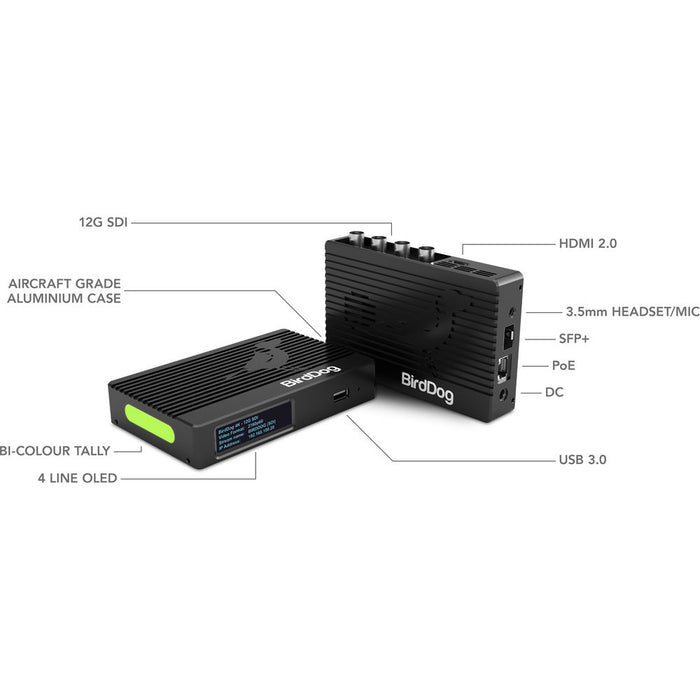

The Key Features of the BirdDog BD4KQUAD:

• Up to UHD 4K/60 Input: Supports ultra-high-definition video inputs at various frame rates, ensuring exceptional clarity and detail.
• Full-Bandwidth I-Frame Compression: Delivers superior image quality with minimal latency, ideal for live productions.
• Four 12G-SDI Selectable Inputs/Outputs: Provides flexible connectivity options for professional broadcast equipment.
• HDMI 2.0 Output: Enables seamless integration with modern displays and monitoring systems.
• SFP+ Expansion Slot: Supports SFP+ modules for fiber connectivity and Ethernet protocols from 1-10GbE, facilitating high-speed data transfer.
• Built-in Cross Converter: Allows SDI inputs to be looped out via the HDMI output, enhancing workflow flexibility.
• PoE+ Support: Simplifies installation by providing power and data over a single Ethernet cable.
• Bi-Color Tally Light: Indicates live status to on-air talent, improving communication during productions.
• 3.5mm Audio Input/Output: Offers additional audio connectivity options for various setups.
• 4-Line OLED Display: Provides real-time status updates and easy device management.
• Aircraft-Grade Aluminum Housing: Ensures durability and reliability in demanding environments.

The Detailed Specifications for the BirdDog BD4KQUAD:

Supported Video Formats:

• UHD 3840x2160: 23.98, 24.00, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 fps
• HD 1920x1080p: 23.98, 24.00, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 fps
• HD 1920x1080i: 50.00i, 59.94i fps
• HD 1280x720p: 50.00p, 59.94p, 60.00p fps

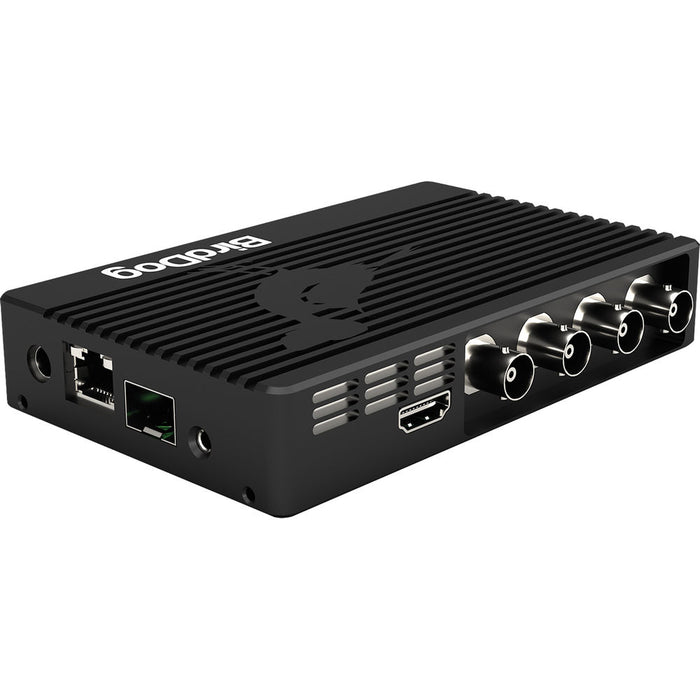

Video I/O Connectivity:

• 12G-SDI Selectable Inputs/Outputs: 4 x BNC connectors
• HDMI 2.0 Output: 1 x HDMI connector

Audio Input:

• 3.5mm Stereo Microphone Input: 1 x 3.5mm TRS connector
• Embedded Audio: 2-channel, 48kHz

Audio Output:

• 3.5mm Stereo Headphone Output: 1 x 3.5mm TRS connector
• Embedded Audio: 2-channel, 48kHz

Network Connectivity:

• Ethernet: RJ45 1000Base-T with integrated PoE+ (802.3at)
• SFP+ Expansion Slot: Supports 10GbE SFP+ modules (sold separately)

Power:

• DC Input: 12V DC, 16W
• PoE+: 802.3at compliant

Dimensions and Weight:

• Size: 135 x 85 x 25 mm
• Weight: 320 g

Included Software:

• BirdDog Comms Lite: Audio intercom software for Windows, supporting up to four BirdDog devices. Upgradeable to Comms Pro for advanced features.

For Canadian buyers, Aries Pro Solutions - VideoLink provides comprehensive support as a premier BirdDog reseller, ensuring the best solutions for your BirdDog and NDI|HX needs.
