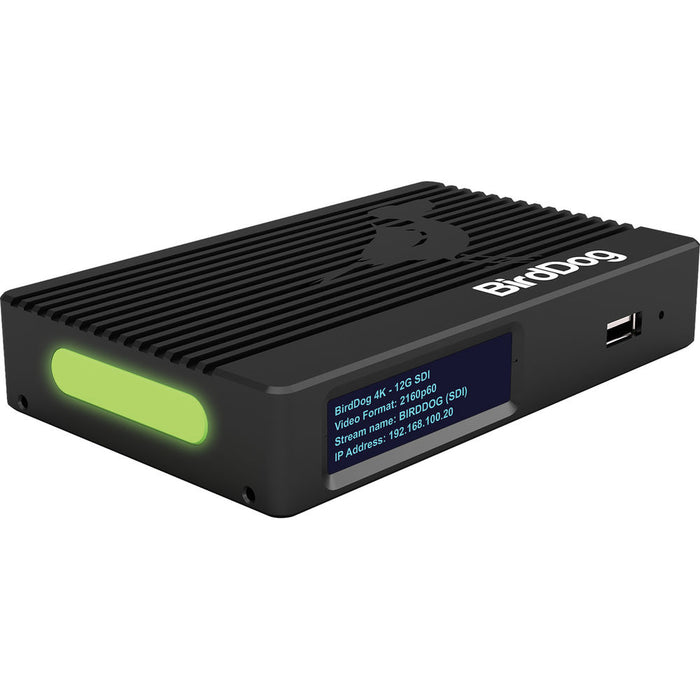

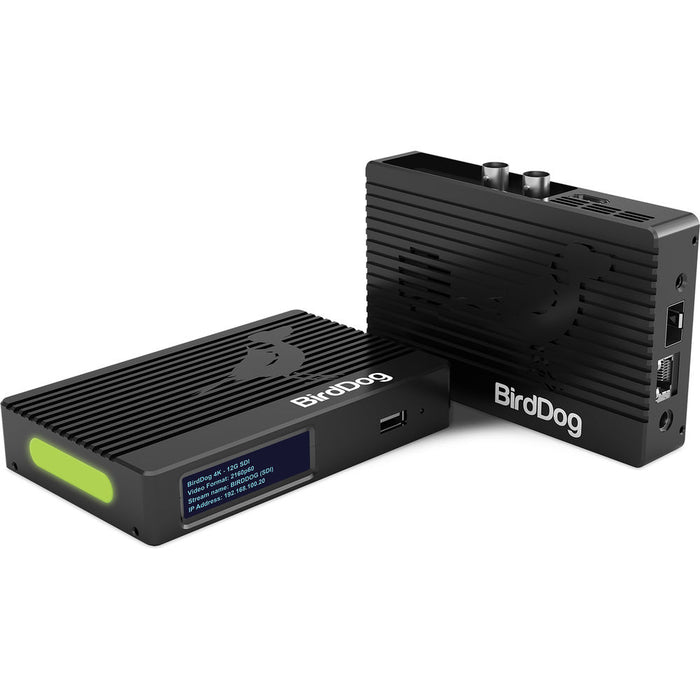

The BirdDog BD4KSDI is a cutting-edge 4K 12G-SDI NDI Encoder/Decoder designed to meet the demands of modern video production environments. Built around BirdDog's custom NDI® silicon chip and encased in a durable aircraft-grade aluminum chassis, this device ensures reliable performance and seamless integration into your workflow. With support for up to UHD 4K/60p video input and full-bandwidth I-frame compression, the BD4KSDI delivers exceptional video quality over NDI networks. Its versatile connectivity options, including 12G-SDI and HDMI 2.0 inputs and outputs, along with a built-in cross converter, make it an indispensable tool for professionals seeking flexibility and efficiency in their video production setups.

In Canada, Aries Pro Solutions - VideoLink is a premier reseller of all BirdDog products, offering unmatched expertise in BirdDog, NDI, and NDI|HX solutions. Our specialized knowledge ensures seamless integration and optimal performance for your production needs.

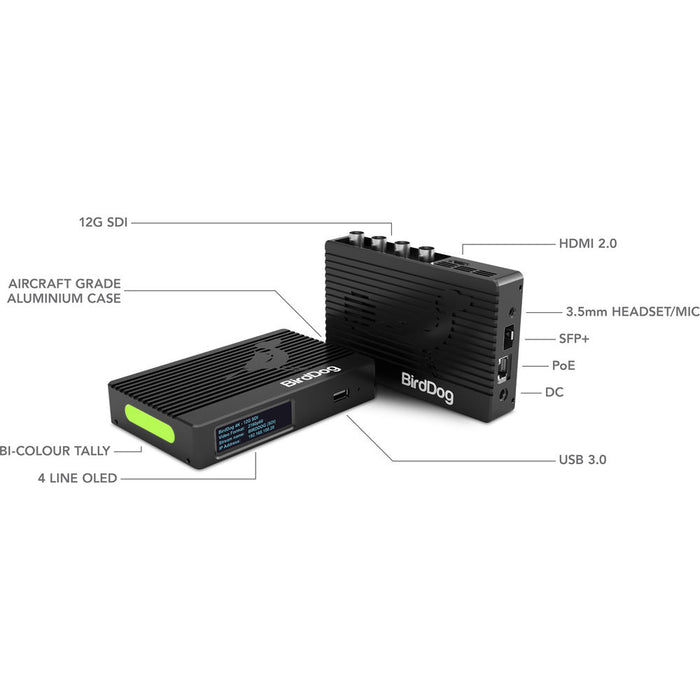

The Key Features of the BirdDog BD4KSDI:

• Up to UHD 4K/60p Input: Supports high-resolution video inputs, ensuring superior image quality for your productions.
• Full-Bandwidth I-Frame Compression: Delivers pristine video quality over NDI networks with minimal latency.
• 12G-SDI and HDMI 2.0 I/O: Offers versatile connectivity options for seamless integration with various professional video equipment.
• Built-In Cross Converter: Enables simultaneous output of SDI and HDMI signals, enhancing workflow flexibility.
• SFP+ Expansion Slot: Supports 10GbE connectivity for high-speed data transfer over fiber networks.
• PoE+ Support: Simplifies installation by providing power and data over a single Ethernet cable.
• Integrated Tally Light: Features a large bicolor tally light for clear on-air status indication.
• Comms Lite Intercom Software: Includes Windows-compatible intercom software, upgradeable to Comms Pro for advanced features.
• Aircraft-Grade Aluminum Housing: Ensures durability and reliability in demanding production environments.

The Detailed Specifications for the BirdDog BD4KSDI:

Supported Video Formats:

• UHD 3840x2160: 23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 fps
• HD 1920x1080p: 23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 fps
• HD 1920x1080i: 50.00i, 59.94i fps
• HD 1280x720p: 50.00p, 59.94p, 60.00p fps

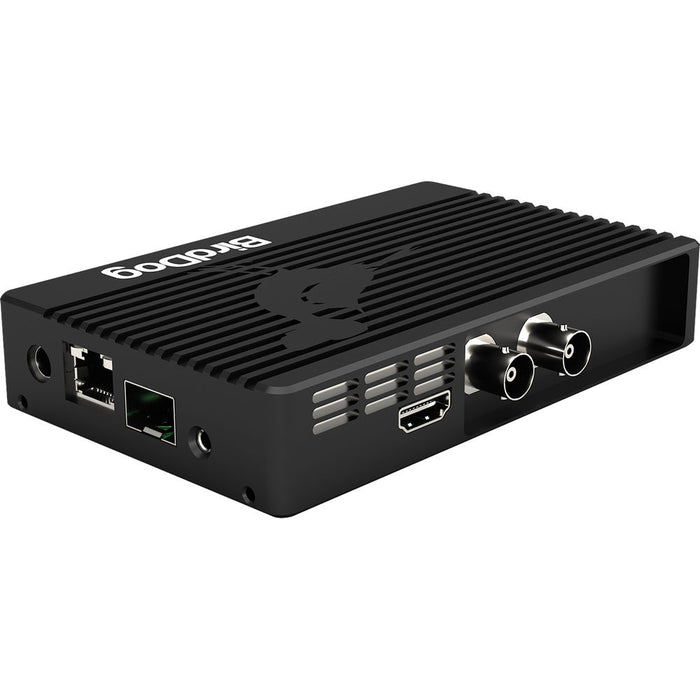

Video Input:

• 1x 12G-SDI

Video Outputs:

• 1x 12G-SDI
• 1x HDMI 2.0

Audio Input:

• 3.5mm stereo jack: Microphone/line input
• SDI embedded audio: 2 channels, 48kHz

Audio Output:

• 3.5mm stereo jack: Headphone/line output
• HDMI embedded audio: 2 channels, 48kHz
• SDI embedded audio: 2 channels, 48kHz

Network Connectivity:

• Ethernet: RJ45 1000baseT with integrated PoE+ (802.3at)
• SFP+ Cage: Supports 10GbE modules (modules sold separately)

Control and Configuration:

• Embedded web configuration panel
• 4-line OLED status display

External Interface Support (requires optional cables):

• USB to RJ45 for additional network device support
• USB to RJ45 for VISCA over IP PTZ control
• USB to Serial PTZ control (RS-232)
• USB ISO recording

Power:

• DC Input: 12V / 16W
• PoE+: 802.3at compliant

Dimensions and Weight:

• Size: 135 x 85 x 25 mm
• Weight: 260g

Included Software:

• BirdDog Comms Lite (Windows 10 and above compatible) - Supports 1 group with up to 4 BirdDog devices - Features live video windows, director push-to-talk, and more
• Upgradeable to Comms Pro for advanced intercom capabilities

For Canadian buyers, Aries Pro Solutions - VideoLink provides comprehensive support as a premier BirdDog reseller, ensuring the best solutions for your BirdDog and NDI|HX needs.
