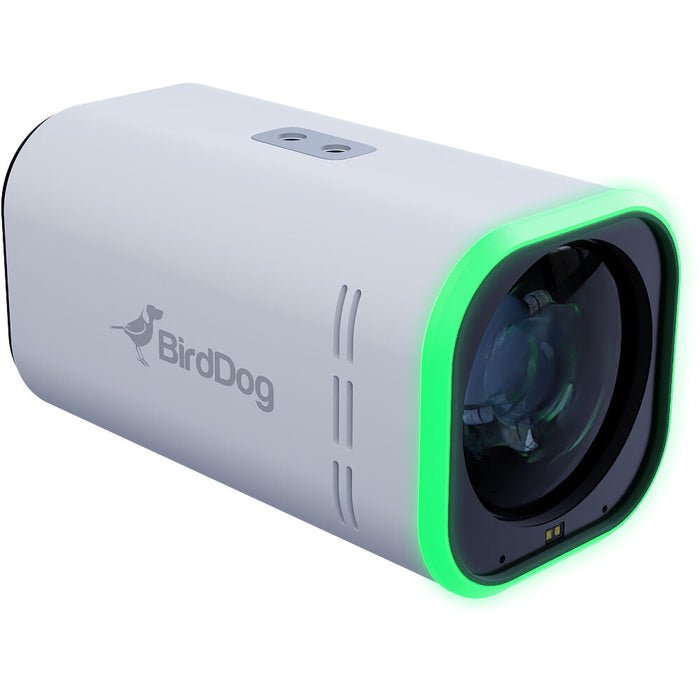

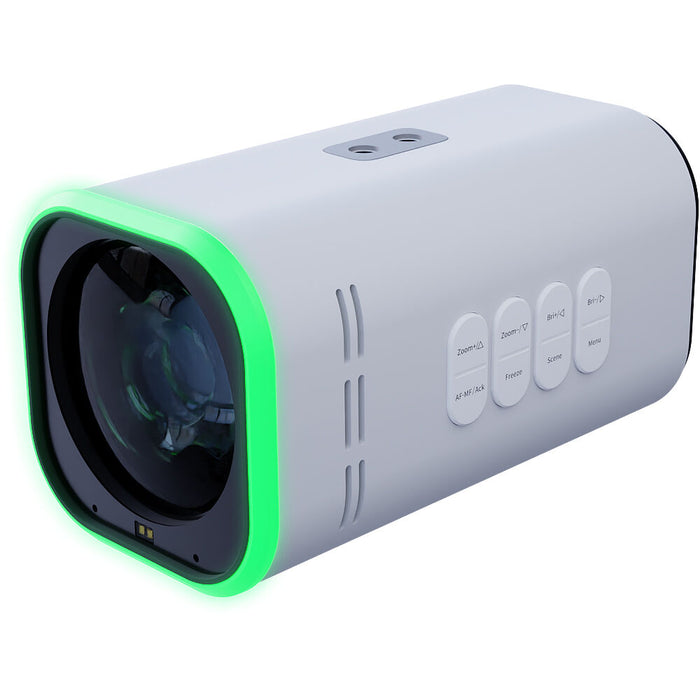

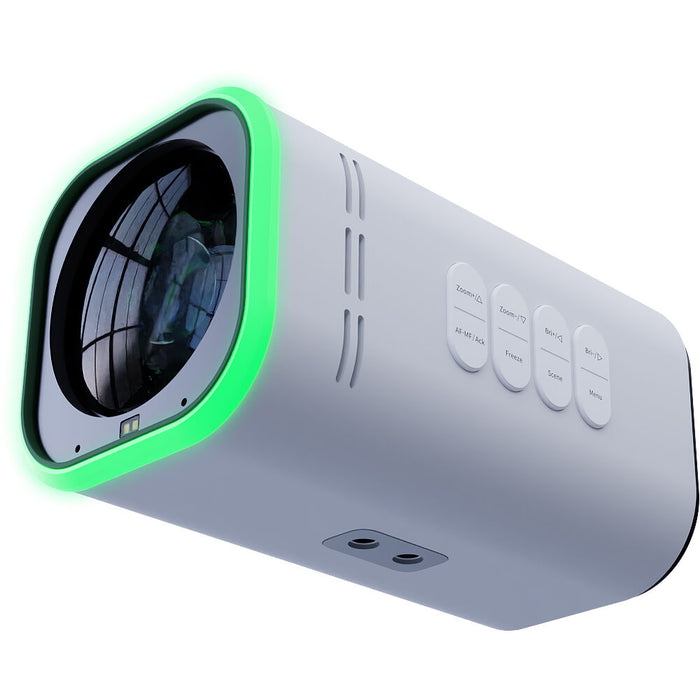

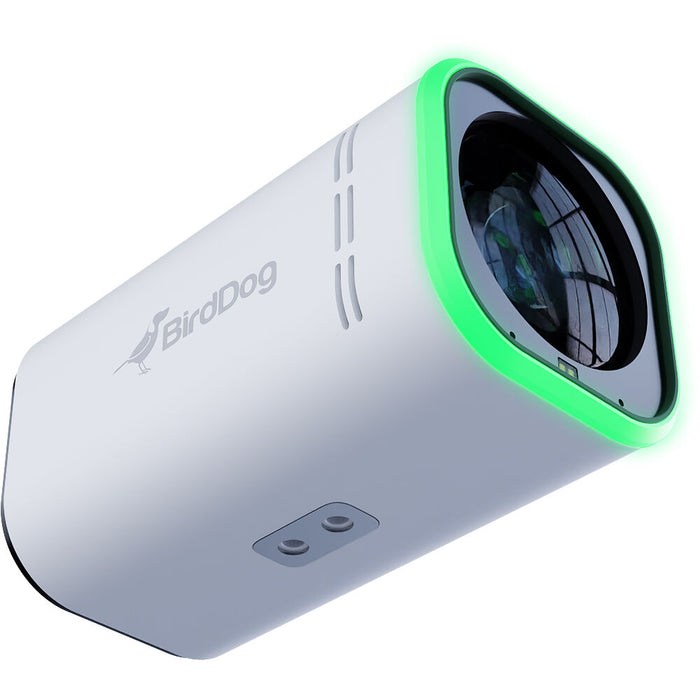

Introducing the BirdDog MAKI Ultra 4K Box Camera with 12x Zoom in a sleek white finish—a compact yet powerful solution for capturing high-quality video in various professional settings. Equipped with a 1/2.8" CMOS sensor, this camera delivers stunning UHD 4K resolution at up to 60 frames per second, ensuring every detail is captured with exceptional clarity. Its 12x optical zoom lens provides a versatile field of view, ranging from a wide 72.8° to a narrow 6.8°, making it ideal for diverse shooting scenarios.

In Canada, Aries Pro Solutions - VideoLink is a premier reseller of all BirdDog products, offering unmatched expertise in BirdDog, NDI, and NDI|HX solutions. Our specialized knowledge ensures seamless integration and optimal performance for your production needs.

The Key Features of the BirdDog MAKI Ultra 4K Box Camera with 12x Zoom:

The Detailed Specifications for the BirdDog MAKI Ultra 4K Box Camera with 12x Zoom:

Image Sensor: 1/2.8" CMOS sensor

Effective Pixels: 8.4 Megapixels

Video Resolutions:

• 2160p (4K) at 60/59.94/50/30/29.97/25 fps
• 1080p at 60/59.94/50/30/29.97/25 fps
• 720p at 60/50/30/25 fps

Lens:

• Optical Zoom: 12x
• Aperture: f/1.8 to f/2.68
• Horizontal Angle of View: 72.8° (Wide) to 6.8° (Tele)
• Vertical Angle of View: 44.1° (Wide) to 3.8° (Tele)

Focus Modes: Time-of-Flight (ToF), Auto, Manual

Exposure Modes: Auto, Shutter Priority, Iris Priority, Manual

Backlight Compensation: Yes

Digital Noise Reduction: Yes

Signal-to-Noise Ratio: >55 dB

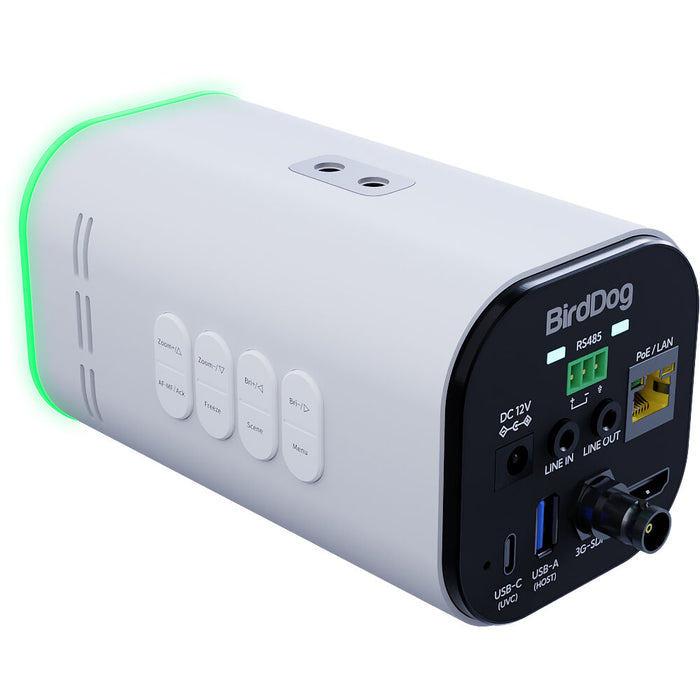

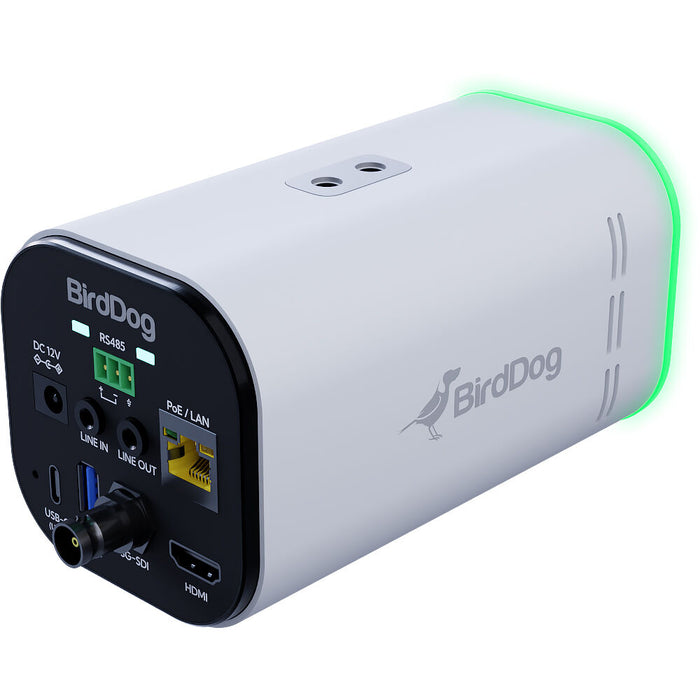

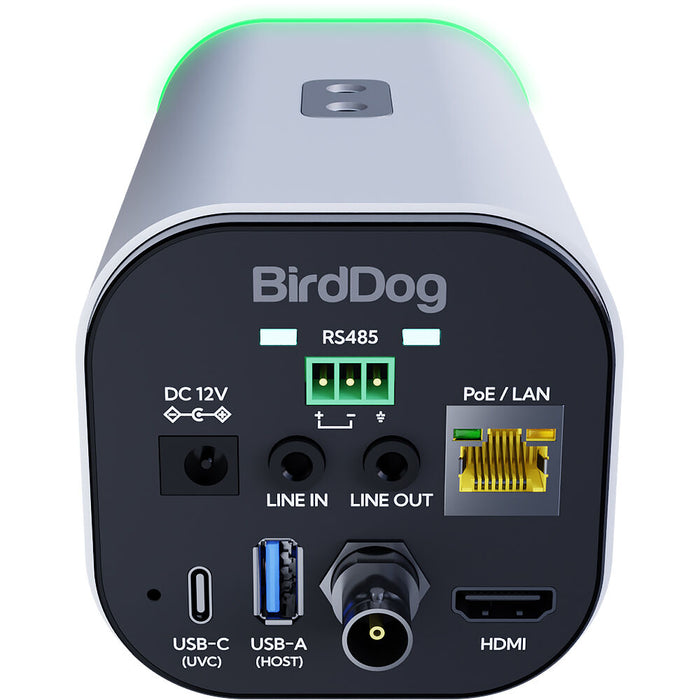

Video Interfaces:

• 1 x HDMI 2.0
• 1 x 3G-SDI
• 1 x USB-C (UVC 1.1)

Video Compression Formats: H.264, H.265

Network Connectivity: 100M/1000M adaptive Ethernet with PoE (802.3af) support

Control Protocols: VISCA, VISCA-IP, NDI Control

Control Interfaces:

• RS485 (2-pin phoenix port)
• USB-C (UVC 1.1)

Audio Inputs/Outputs:

• 1 x Line In (3.5mm jack)
• 1 x Line Out (3.5mm jack)
• Built-in Microphone

Power Input: DC 12V (DC005-2.0mm type) or PoE (802.3af)

Power Consumption: 12W (Max)

Dimensions (W x H x D): 145 x 79 x 80 mm (excluding SDI connector)

Weight: 0.8 kg

For Canadian buyers, Aries Pro Solutions - VideoLink provides comprehensive support as a premier BirdDog reseller, ensuring the best solutions for your BirdDog and NDI|HX needs.
