The BirdDog MAKI Ultra BDMKU20XW 4K 20x Zoom Box Camera in white delivers exceptional video quality with its 4K60 resolution and 20x optical zoom. Designed for versatility, it supports NDI|HX2 and NDI|HX3 protocols, ensuring seamless integration into various production environments. Its compact design, combined with advanced features like super-fast autofocus and exceptional low-light performance, makes it an ideal choice for professional videographers seeking both performance and flexibility.

In Canada, Aries Pro Solutions - VideoLink is a premier reseller of all BirdDog products, offering unmatched expertise in BirdDog, NDI, and NDI|HX solutions. Our specialized knowledge ensures seamless integration and optimal performance for your production needs.

The Key Features of the BirdDog MAKI Ultra BDMKU20XW:

• 4K60 Resolution: Capture ultra-high-definition video at 60 frames per second for stunning clarity.
• 20x Optical Zoom: Powerful zoom capabilities allow for detailed close-ups without compromising image quality.
• NDI|HX2 & NDI|HX3 Support: Ensures efficient video streaming and integration into IP-based workflows.
• Super-Fast Autofocus: Equipped with advanced focusing algorithms for rapid and accurate focus.
• Exceptional Low-Light Performance: Delivers clear and detailed images even in challenging lighting conditions.
• Multiple Output Interfaces: Offers HDMI 2.0, 3G-SDI, and USB-C outputs for versatile connectivity options.
• Built-In HALO Tally: Features a visible tally light system to indicate active camera status.
• Compact Design: Small footprint allows for flexible placement and easy integration into various setups.

The Detailed Specifications for the BirdDog MAKI Ultra BDMKU20XW:

Image Sensor: 1/2.8-inch CMOS sensor

Effective Pixels: 8.4 Megapixels

Aperture Range: f/1.6 to f/3.6

Horizontal Angle of View: 61.2° to 3.38°

Vertical Angle of View: 35.3° to 1.9°

Focus Modes: Time-of-Flight (TOF), Auto, Manual

Exposure Modes: Auto, Shutter Priority, Iris Priority, Manual

Backlight Compensation: Yes

Digital Noise Reduction: Yes

Signal-to-Noise Ratio (SNR): >55dB

Video Formats Supported:

• 2160p at 60/59.94/50/30/29.97/25 fps
• 1080p at 60/59.94/50/30/29.97/25 fps
• 720p at 60/50/30/25 fps

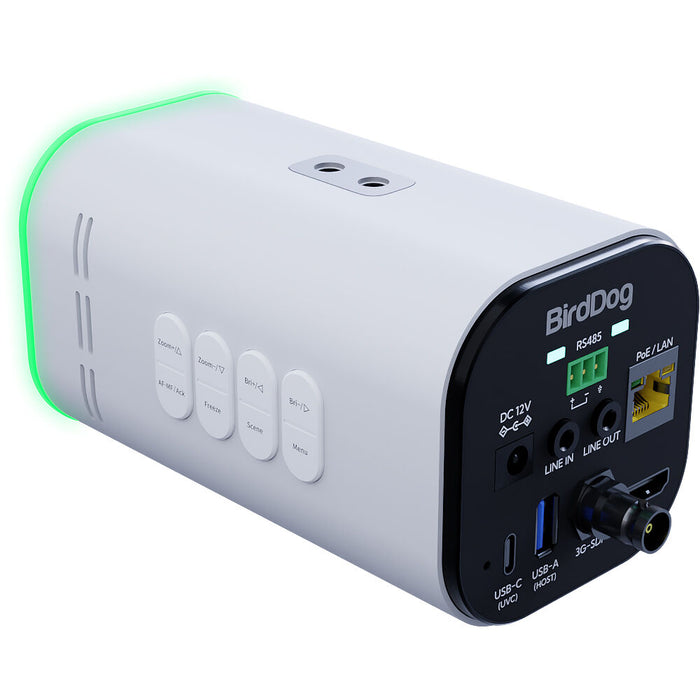

Video Interfaces:

• 1 x HDMI 2.0
• 1 x 3G-SDI
• 1 x USB-C (UVC 1.1)

Video Compression Formats: H.264, H.265

Audio Inputs/Outputs:

• 1 x Line In (3.5mm jack)
• 1 x Line Out (3.5mm jack)
• Built-in Microphone

Control Interfaces:

• RS485 (2-pin phoenix port)
• USB Type-C (UVC 1.1)

Network Protocols: NDI|HX2, NDI|HX3

Control Protocols: VISCA, VISCA-IP, NDI Control

Power Input: DC 12V or PoE (802.3af)

Power Consumption: 12W (Max)

Dimensions (W x H x D): 145 x 79 x 80 mm (excluding SDI connector)

Weight: 0.8 kg

For Canadian buyers, Aries Pro Solutions - VideoLink provides comprehensive support as a premier BirdDog reseller, ensuring the best solutions for your BirdDog and NDI|HX needs.
