The BirdDog BDWPOUT Dual Output NDI Wallplate is designed to provide a sleek and efficient solution for permanent NDI installations. Ideal for modern boardrooms, conference rooms, and educational facilities, this wallplate enables seamless content distribution to multiple displays. With dual independent HDMI outputs, Power over Ethernet (PoE) functionality, and customizable features, it ensures a streamlined and professional AV setup.

In Canada, Aries Pro Solutions - VideoLink is a premier reseller of all BirdDog products, offering unmatched expertise in BirdDog, NDI, and NDI|HX solutions. Our specialized knowledge ensures seamless integration and optimal performance for your production needs.

The Key Features of the BirdDog BDWPOUT Dual Output NDI Wallplate:

• Dual Independent HDMI Outputs: Simultaneously drive content to two separate screens, enhancing meeting engagement by displaying different sources on each screen.
• Power over Ethernet (PoE): Simplify installation with PoE support, allowing a single Ethernet cable to provide both power and data, reducing cable clutter.
• Customizable Design: Interchangeable faceplates and soft glow status indicators offer aesthetic flexibility, ensuring the wallplate complements any room decor.
• RESTful API Integration: Fully automate and control the wallplate through the programmable RESTful API, enabling seamless integration into existing AV systems.
• Web Management Console: Access an intuitive web-based interface for easy configuration and firmware updates, streamlining device management.

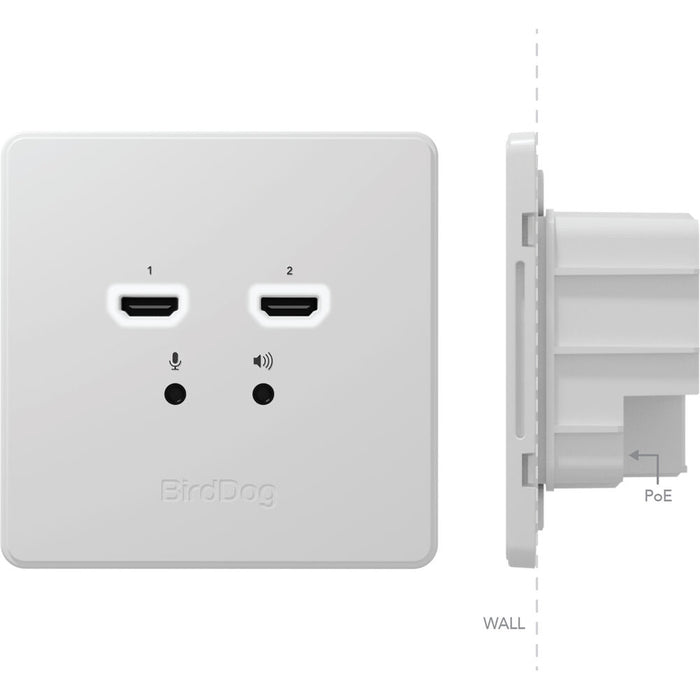

• Flush Mount Installation: Designed for flush mounting on walls, tables, or lecterns, providing a clean and unobtrusive installation.

The Detailed Specifications for the BirdDog BDWPOUT Dual Output NDI Wallplate:

Video Formats Supported:

• 1080p at 23.98, 25, 29.97, 50, 59.94 fps
• 1080i at 50, 59.94 fps
• 720p at 50, 59.94 fps

Video Outputs:

• 2 x HDMI Standard Type A connectors
• HDMI v1.4a, supporting RGB or YCbCr color spaces

Audio Outputs:

• Digital: 2-channel, 24-bit HDMI embedded audio at 48 kHz sample rate
• Analog: 3.5mm stereo output for external speakers

Audio Inputs:

• 3.5mm microphone input for direct audio capture

Video Codec Support:

• Real-time, ultra-low latency, full-bitrate NDI (i-frame)

Status Indicators:

• User-definable soft glow indicators to display active or inactive connections

Network Interface:

• 10/100/1000 Ethernet (RJ-45) with PoE (802.3af/at) support

Power Supply:

• Powered via PoE, eliminating the need for separate power adapters

Dimensions:

• 5 x 2 x 6 inches (W x D x H)

Weight:

• 14.9 ounces

For Canadian buyers, Aries Pro Solutions - VideoLink provides comprehensive support as a premier BirdDog reseller, ensuring the best solutions for your BirdDog and NDI|HX needs.
