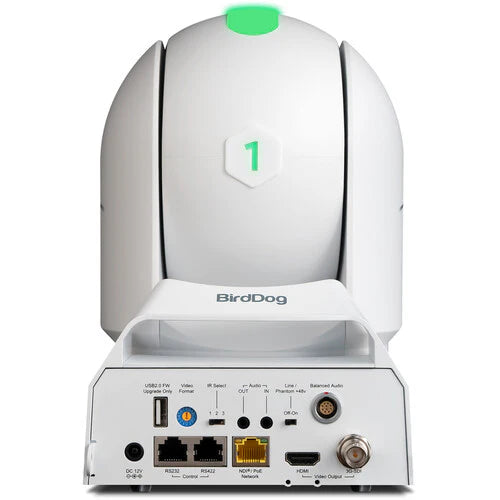

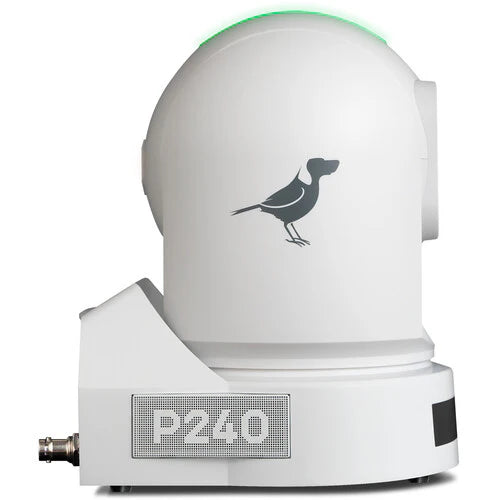

Introducing the BirdDog P240W, a state-of-the-art PTZ (Pan-Tilt-Zoom) camera designed to meet the demands of modern video production. Equipped with an upgraded Sony Exmor R broadcast sensor, the P240W delivers exceptional image quality and enhanced light sensitivity, ensuring superior performance in various lighting conditions. With versatile output options including Full NDI®, SDI, and HDMI, this camera offers unparalleled flexibility for professional broadcasting, live streaming, and video conferencing applications.

In Canada, Aries Pro Solutions - VideoLink is a premier reseller of all BirdDog products, offering unmatched expertise in BirdDog, NDI, and NDI|HX solutions. Our specialized knowledge ensures seamless integration and optimal performance for your production needs.

The Key Features of the BirdDog P240W:

• Advanced Sony Exmor R Sensor: The P240W features an updated Sony Exmor R 1/2.5" CMOS sensor, providing increased light sensitivity and capturing sharp, vivid images in resolutions up to 1080p60.
• Multiple Output Options: Enjoy ultimate video flexibility with simultaneous outputs in Full NDI®, SDI, and HDMI formats, catering to diverse production needs.
• Professional Audio Integration: The camera includes balanced XLR audio inputs via an optional breakout cable, allowing for high-quality audio connections suitable for professional environments.
• Extensive Control Interfaces: Control the P240W seamlessly through NDI® Control (auto-configuring), VISCA IP, or serial control protocols (VISCA / PELCO D) via RS232/RS422 connectors, ensuring compatibility with various control systems.
• Enhanced Image Processing Features: Benefit from advanced features such as visibility enhancer, image stabilizer, color gain and hue adjustments, gamma settings, and noise reduction to achieve optimal image quality in any scenario.

The Detailed Specifications for the BirdDog P240W:

Camera Specifications:

• Resolution: Up to 1080p60, 1080i60
• Zoom: 40x Optical Zoom
• Image Stabilizer: Yes
• True WDR: 130dB
• ND Filter: Yes

Video Output:

• Formats: NDI®, HDMI, 3G-SDI
• HD Video Formats: 1080p 59.94, 50, 29.97, 25, 23.97; 1080i 59.94, 50; 720p 59.94, 50
• HDMI Color Space: YCbCr, 4:2:2 12-bit
• SDI Color Space: YCbCr, 4:2:2 10-bit

Audio Input/Output:

• Input: Balanced XLR (via breakout cable) with 48V Phantom power; Unbalanced 3.5mm TRS (stereo)
• Output: Balanced XLR (via breakout cable); Unbalanced 3.5mm TRS (stereo)
• Embedded Audio: 24-bit with main HDMI, SDI, and NDI® outputs

Control Interfaces:

• IP PTZ Control: NDI® Control (auto-configuring), VISCA IP
• Serial PTZ Control: 2x RJ45: RS232 / RS422 Connectors
• Serial Control Protocol: VISCA / PELCO D

Mechanical Specifications:

• Pan Movement: Horizontal: ±175º (Zoom Adaptive Speed Range: 0.05°〜100°/s)
• Tilt Movement: Vertical: +90º to -30º (Zoom Adaptive Speed Range: 0.05°〜50°/s)
• Preset Positions: 128 (Speed adjustable: Up to 150°/s)

Environmental Specifications:

• Usage: Indoor
• Operating Temperature: -10 – +40 (°C)
• Operating Humidity: ≤80%

Power and Dimensions:

• Power Input: 12V DC, PoE+ (IEEE 802.3at)
• Power Consumption: 22.5W (PTZ move simultaneously)
• Dimensions: 163 x 199 x 231 mm
• Weight: 2.395 kg

Network Specifications:

• Video Compression: Full NDI® – i-frame high-quality low-latency NDI® for production; h.264 long-GOP (Limited resolution support)
• Network Protocols: NDI® – Discovery, configuration, and control; NDI®|HX2; SRT; Cloud Connect*; RTSP; RTMP
• Web Control Interface: Full control via Web/Mobile UI including Scene presets

*Note: Some features may require future firmware updates.

For Canadian buyers, Aries Pro Solutions - VideoLink provides comprehensive support as a premier BirdDog reseller, ensuring the best solutions for your BirdDog and NDI|HX needs.
