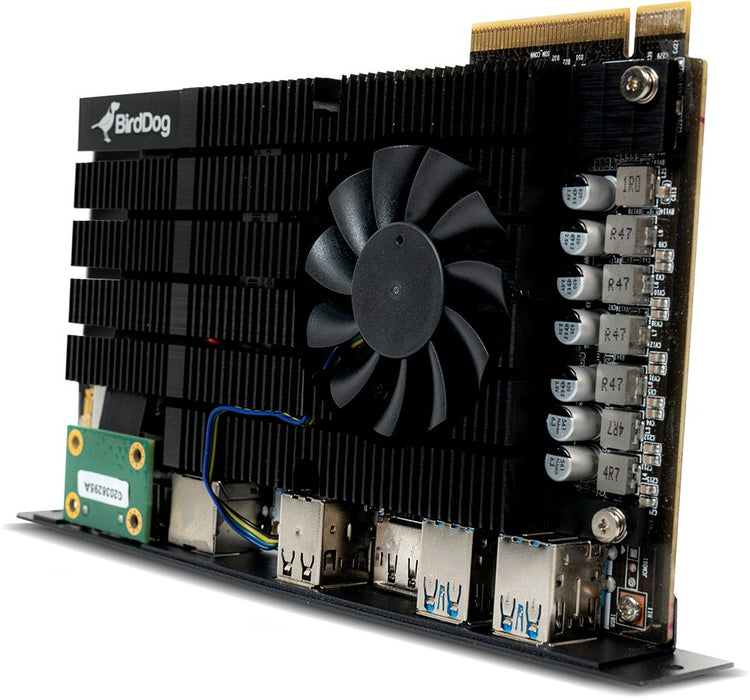

The BirdDog BDSDM1-DP SDM-L Bi-Directional NDI Converter revolutionizes content distribution by integrating directly into SDM-compatible flat panel displays. Built upon the Intel® SDM-L platform, this module eliminates the need for external wall boxes or patch panels, offering a streamlined AV distribution solution. With support for resolutions up to UHD60p and both digital and analog audio, the BDSDM1-DP ensures high-quality, low-latency video and audio transmission. Its bi-directional functionality allows it to operate as either an encoder or decoder, providing flexibility for various installation requirements.

In Canada, Aries Pro Solutions - VideoLink is a premier reseller of all BirdDog products, offering unmatched expertise in BirdDog, NDI, and NDI|HX solutions. Our specialized knowledge ensures seamless integration and optimal performance for your production needs.

The Key Features of the BirdDog BDSDM1-DP SDM-L Bi-Directional NDI Converter:

• Intel® SDM-L Platform Integration: Seamlessly integrates into SDM-compatible displays, removing the need for external AV hardware.
• Bi-Directional NDI Functionality: Configurable as either an NDI encoder or decoder, adapting to diverse AV distribution needs.
• High-Resolution Support: Supports video formats up to UHD 4K at 60 frames per second, ensuring crystal-clear image quality.
• Versatile Audio Support: Offers 2-channel, 24-bit embedded digital audio at a 48 kHz sample rate, along with a 3.5mm analog microphone/headset input/output.
• Comprehensive Video Codec Support: Compatible with high-bandwidth, low-latency NDI and NDI|HX2 (H.264/HEVC) formats.
• Robust Network Connectivity: Equipped with an Ethernet RJ45 1000baseT port for reliable network performance.
• Compact and Lightweight Design: Measuring 195 x 112 x 25 mm and weighing approximately 200 grams, it ensures easy installation without adding significant weight to displays.

The Detailed Specifications for the BirdDog BDSDM1-DP SDM-L Bi-Directional NDI Converter:

Video Formats Supported:

• 4K: 2160p at 25, 29.97, 30, 50, 59.94, 60 Hz
• HD: 1080p at 25, 29.97, 30, 50, 59.94, 60 Hz
• HD: 1080i at 50, 59.94, 60 Hz
• HD: 720p at 50, 59.94, 60 Hz

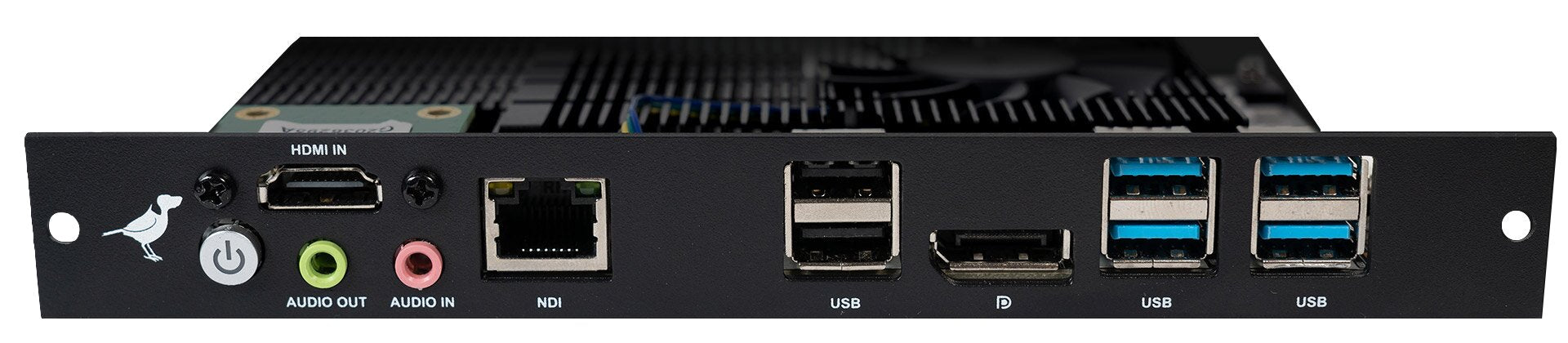

Video Input:

• 1 x HDMI Standard Type A connector, HDMI v2.0, supporting RGB or YCbCr color spaces.

Video Output:

• SDM-L interface with DisplayPort output, supporting up to UHD 4K at 60 Hz.

Audio Digital:

• 2-channel, 24-bit embedded audio with a 48 kHz sample rate.

Audio Analog:

• 3.5mm microphone/headset input/output for external audio devices.

Video Codec Support:

• NDI – High Bandwidth i-frame, low latency
• NDI|HX2 – H.264/HEVC long-GOP

Network Connectivity:

• Ethernet RJ45 1000baseT port for high-speed network connections.

Dimensions (WxLxH):

• 195 x 112 x 25 mm

Weight:

• Approximately 200 grams

For Canadian buyers, Aries Pro Solutions - VideoLink provides comprehensive support as a premier BirdDog reseller, ensuring the best solutions for your BirdDog and NDI|HX needs.
