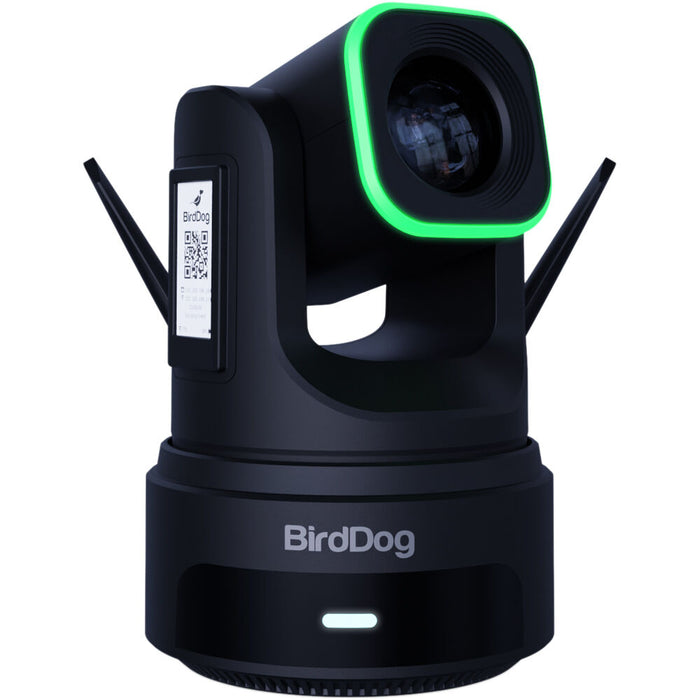

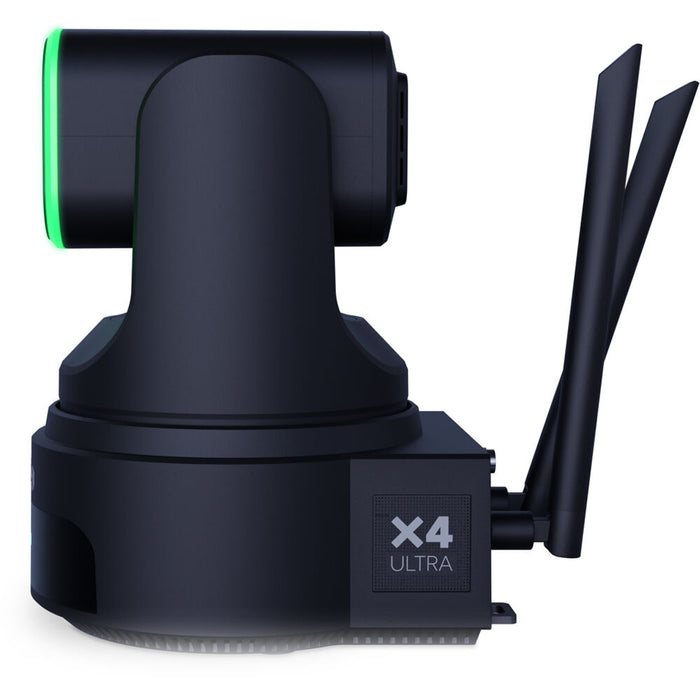

Introducing the BirdDog X4 Ultra, a state-of-the-art 4K PTZ camera designed for modern broadcasters and content creators. With its advanced AI tracking, NDI®|HX3 support, Wi-Fi 6 connectivity, and a built-in battery, the X4 Ultra offers unparalleled flexibility and performance for both studio and field productions.

In Canada, Aries Pro Solutions - VideoLink is a premier reseller of all BirdDog products, offering unmatched expertise in BirdDog, NDI, and NDI|HX solutions. Our specialized knowledge ensures seamless integration and optimal performance for your production needs.

The Key Features of the BirdDog X4 Ultra:

• Stunning 4K60 Resolution: Equipped with a Sony 1/1.8" UHD CMOS sensor, the X4 Ultra captures ultra-high-definition video at up to 60 frames per second, ensuring exceptional image clarity and smoothness.
• Advanced AI Tracking: The integrated AI system provides intelligent automation, allowing for precise subject tracking and auto-framing, enhancing production efficiency and professionalism.
• NDI®|HX3 Support: Experience high-quality, low-latency video streaming with NDI®|HX3 technology, making the X4 Ultra ideal for live productions and seamless integration into various broadcasting workflows.

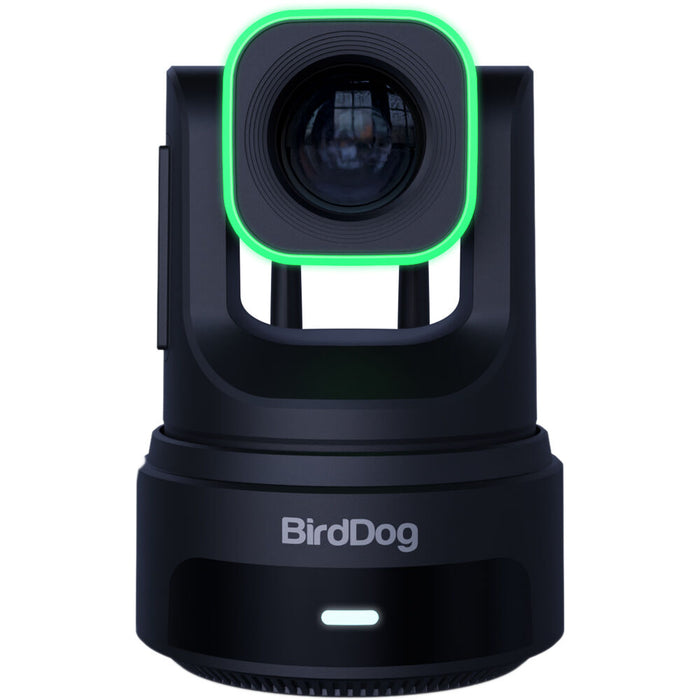

• HALO Tally System: Featuring a prominent, daylight-visible tally light surrounding the lens, the HALO Tally System ensures on-camera talent can easily identify active cameras, improving on-set communication.
• Wi-Fi 6 Connectivity and Built-In Battery: With Wi-Fi 6 support and an internal battery lasting up to 4 hours, the X4 Ultra offers the freedom to operate wirelessly, perfect for capturing shots in challenging or remote locations.

The Detailed Specifications for the BirdDog X4 Ultra:

Image Sensor: Sony 1/1.8" CMOS – ULTRA HD

Lens: f= 6.25 - 125mm

Optical Zoom: 20x

Video Formats Supported:

• 2160p at 60/59.94/50/30/29.97/25 fps
• 1080p at 60/59.94/50/30/29.97/25 fps
• 1080i at 59.94/50 fps
• 720p at 60/59.94 fps

Field of View:

• Horizontal: 60° (W) ~ 3.5° (T)
• Vertical: 35° (W) ~ 2.0° (T)
• Diagonal: 66.6° (W) ~ 4.0° (T)

Aperture: F1.58 (W) ~ 3.95 (T)

Focus Modes: Auto, Manual

Exposure Modes: Auto, Shutter Priority, Iris Priority, Manual

Shutter Speed: 1/1 - 1/10000s

Backlight Compensation: Yes

Digital Noise Reduction: 3D Noise Reduction

Signal-to-Noise Ratio (SNR): ≥45dB

Effective Pixels: 8.42 MP

AI Tracking Modes: Presenter Tracking, Zone

Pan/Tilt Rotation:

• Pan: ±170°
• Tilt: -30° ~ +90°

Control Speed:

• Pan: 1.7-80°/sec
• Tilt: 1.7-60°/sec

Presets: 255

Integrated Tally Light: HALO tally and rear number tally system

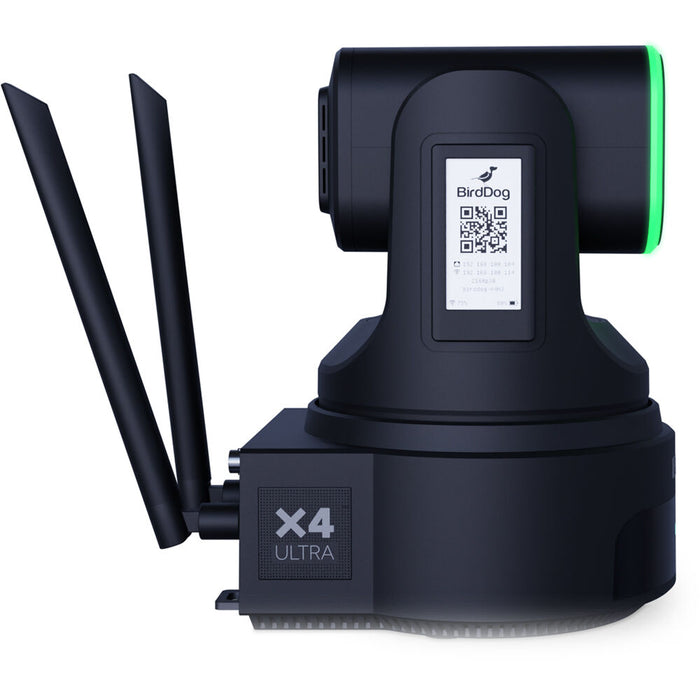

Display: e-Ink 2.13” with customizable logo

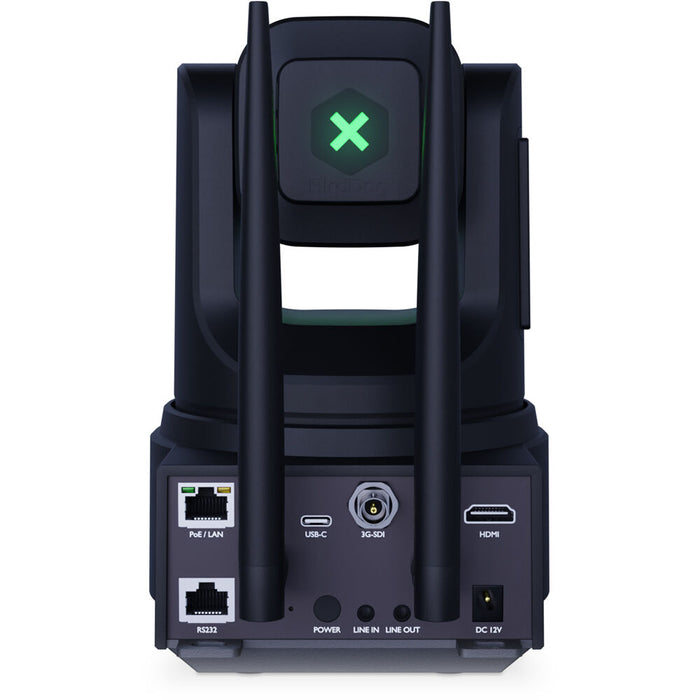

Video Output Interfaces: 3G-SDI, HDMI, USB-C UVC, Network

Video Compression Formats: H.264, H.265

Network Interfaces:

• 1Gbps adaptive Ethernet port
• PoE IEEE 802.3at
• Wi-Fi 6 2x2 MIMO (Optional Base station)

Encoder Network Protocols: NDI|HX2, NDI|HX3, RTSP, RTMP, SRT

Control Interfaces: 1Gbps Ethernet, USB-C, RS-232

Control Protocols: VISCA, VISCA-IP, NDI, ONVIF

Analog Audio: 3.5mm TRS Line input/Mic Input

Input Voltage: DC 12V, PoE IEEE 802.3at

Input Current: 5.0A (Max)

Battery Capacity: 9450mAh

Battery Operating Time: Up to 6 hours (usage dependent)

Operating Temperature: 0°C ~ +40°C

For Canadian buyers, Aries Pro Solutions - VideoLink provides comprehensive support as a premier BirdDog reseller, ensuring the best solutions for your BirdDog and NDI|HX needs.
