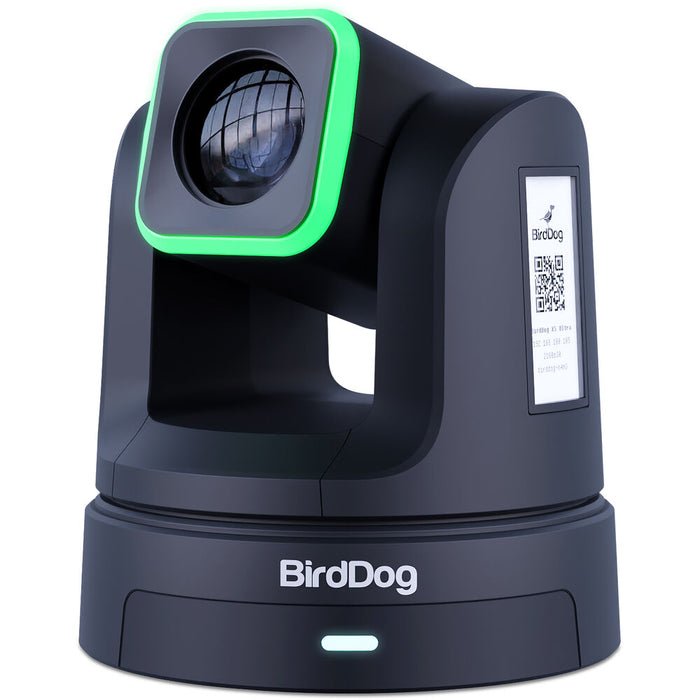

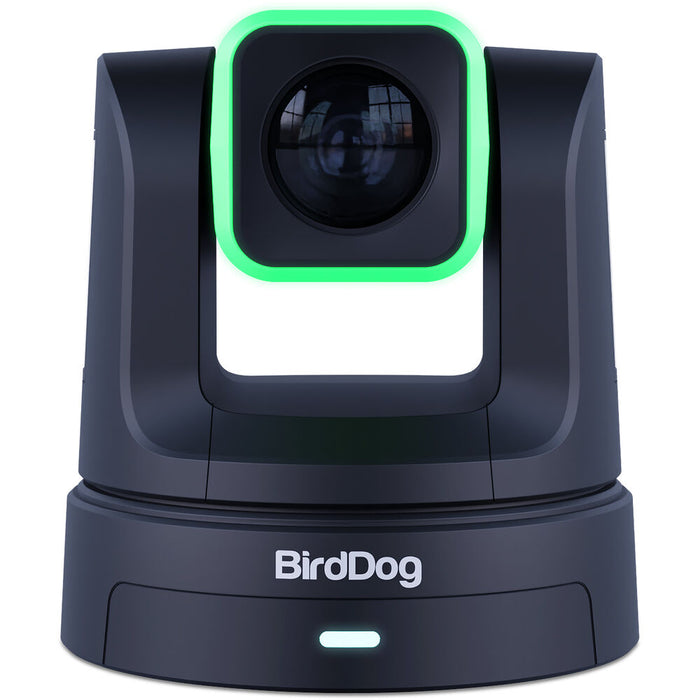

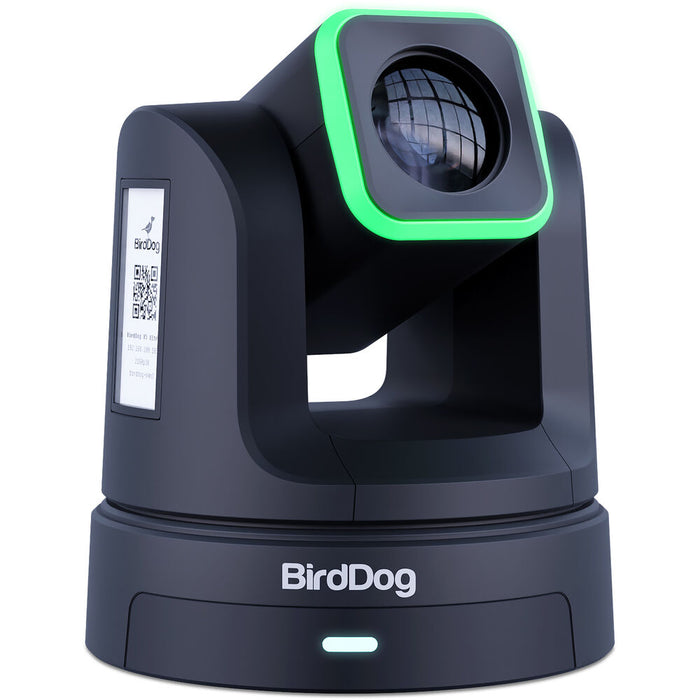

Elevate your production quality with the BirdDog X5 Ultra PTZ Camera, designed to meet the demands of modern broadcasting and live streaming. Featuring a powerful 20x optical zoom and the ability to capture video in stunning 4K resolution at 60 frames per second, this camera ensures exceptional image clarity and detail. Its advanced AI auto-tracking and framing capabilities keep your subjects perfectly in frame, allowing you to focus on delivering compelling content. With support for NDI®|HX3, 12G-SDI, HDMI 2.0, and USB-C outputs, the X5 Ultra offers versatile connectivity options to seamlessly integrate into your existing workflow. The integrated NDI®|HX decoder simplifies setup by enabling confidence monitoring, return feeds, or teleprompter usage with a single cable connection. Whether you're broadcasting live events, conducting virtual meetings, or creating engaging video content, the BirdDog X5 Ultra PTZ Camera delivers unparalleled performance and flexibility.

In Canada, Aries Pro Solutions - VideoLink is a premier reseller of all BirdDog products, offering unmatched expertise in BirdDog, NDI, and NDI|HX solutions. Our specialized knowledge ensures seamless integration and optimal performance for your production needs.

The Key Features of the BirdDog X5 Ultra PTZ Camera:

• 4K Ultra HD Resolution: Capture video in up to 2160p at 60 frames per second, delivering stunning clarity and detail for professional-grade productions.
• 20x Optical Zoom: Equipped with a lens ranging from 5.4mm to 104mm, the X5 Ultra provides a 20x optical zoom, allowing you to capture both wide-angle shots and close-ups with ease.
• Advanced AI Auto-Tracking and Framing: The built-in AI technology automatically tracks and frames subjects, ensuring they remain in focus and centered throughout the recording.
• Multiple Video Output Interfaces: Offers versatile connectivity with 12G-SDI, HDMI 2.0, HDMI 1.4, USB-C UVC 1.1, and 1Gb Ethernet ports, providing flexibility for various production setups.
• NDI®|HX3 Support: Integrates seamlessly into IP-based workflows with support for NDI®|HX2 and NDI®|HX3 protocols, enabling high-quality, low-latency video transmission over standard networks.
• Integrated NDI®|HX Decoder: Features the first simultaneous NDI®|HX decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage, simplifying your setup with a single cable connection.

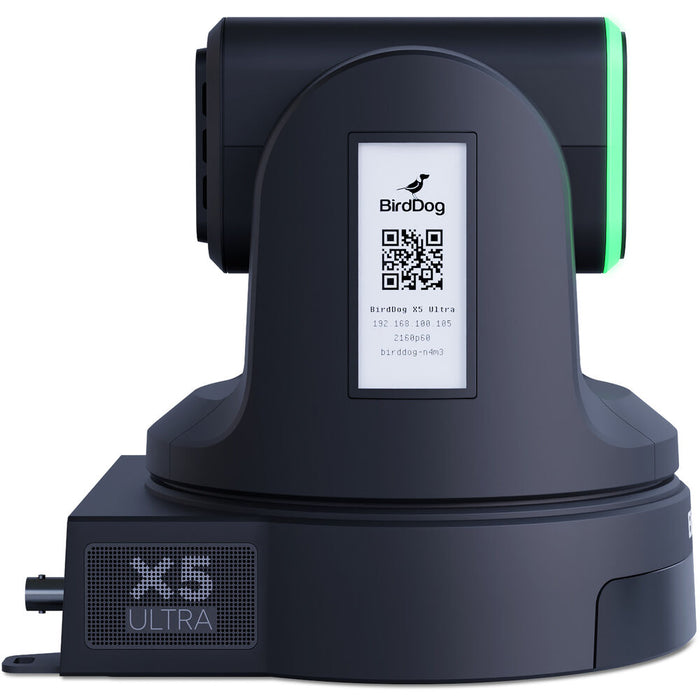

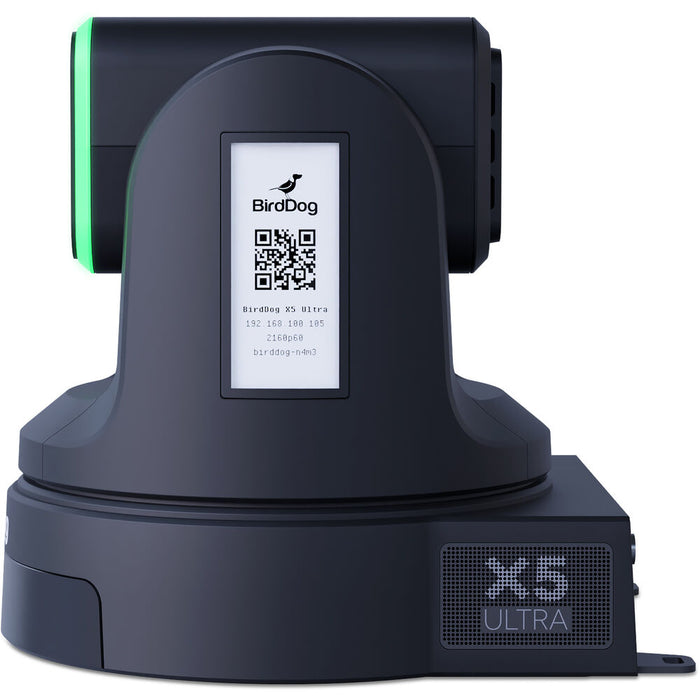

• Dual E-Ink Displays: Includes two integrated 2.93" E-Ink displays for customizable branding or information display, enhancing the professional appearance of your setup.
• Halo Tally Light: The built-in halo-style RGB tally light provides a clear visual indicator of the camera's status, ensuring smooth communication during live productions.
• Power over Ethernet Plus (PoE+) Support: Simplifies installation by allowing the camera to receive power and data over a single Ethernet cable, reducing clutter and setup time.
• High-Quality Low-Light Performance: The Sony 1/2.8" CMOS sensor delivers excellent image quality even in low-light conditions, ensuring clear and vibrant footage in various lighting environments.

The Detailed Specifications for the BirdDog X5 Ultra PTZ Camera:

Image Sensor

• Type: Sony 1/2.8" CMOS
• Resolution: 8.46 Megapixels

Lens

• Focal Length: 5.4mm – 104mm
• Optical Zoom: 20x
• Aperture: F1.6 (Wide) – F3.6 (Tele)
• Filter Ring Diameter: 49mm

Video Formats

• 2160p (4K Ultra HD): 60, 59.94, 50, 30, 29.97, 25 fps
• 1080p (Full HD): 60, 59.94, 50, 30, 29.97, 25 fps
• 720p (HD): 60, 59.94, 50 fps

Field of View

• Horizontal: 56.6° (Wide) – 3° (Tele)
• Vertical: 32.5° (Wide) – 1.7° (Tele)
• Diagonal: 64.7° (Wide) – 3.5° (Tele)

Focus

• Auto
• Manual

Exposure Modes

• Auto
• Shutter Priority
• Iris Priority
• Manual
• Backlight Compensation (BLC)
• Wide Dynamic Range (WDR)

Shutter Speed

• 1/1 to 1/10,000 seconds

Digital Noise Reduction

• 3D Noise Reduction

Signal-to-Noise Ratio (SNR)

• 50dB

AI Tracking

• Presenter Mode

Pan/Tilt Mechanism

• Pan Rotation: ±170°
• Tilt Rotation: -30° to +90°
• Pan Speed: 0.1° – 200°/sec
• Tilt Speed: 0.1° – 200°/sec
• Presets: 128, with adjustable speeds

Integrated Tally Light

• Halo-style RGB indicator

Drive System

• Ultra-fine motor drive

Noise Level

• Maximum 28dB at full pan speed

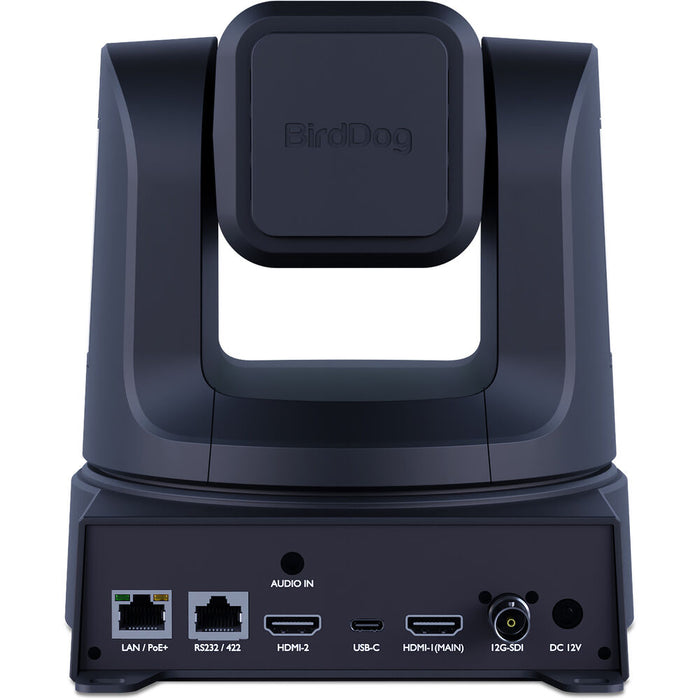

Video Output Interfaces

• 12G-SDI
• HDMI 2.0
• HDMI 1.4
• USB-C (UVC 1.1)
• 1Gb Ethernet

Video Compression Formats

• H.264
• H.265

Network Interfaces

• 1GbE adaptive Ethernet port
• PoE+ (IEEE 802.3at) support

Encoder Network Protocols

• NDI®|HX2
• NDI®|HX3
• SRT
• RTSP
• RTMP

Decoder Network Protocols

• NDI®|HX2
• NDI®|HX3

Decoder Supported Resolutions

• 1080p: 60, 59.94, 50, 30, 29.97, 25 fps
• 720p: 60, 59.94, 50 fps

Control Interfaces

• 1GbE Ethernet
• RS232 (input & output)
• RS422
• USB-C (UVC 1.1)

Control Protocols

• VISCA
• VISCA-IP
• NDI®

Baud Rates

• 38400
• 9600
• 4800
• 2400

Audio Inputs

• Analog: 3.5mm Mic/Line IN (Stereo)
• Digital: Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)

Power

• Input Voltage: DC 12V
• Power over Ethernet: PoE+ (IEEE 802.3at)
• Power Consumption: 18W (Max)

Environmental Conditions

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 20% to 80%

For Canadian buyers, Aries Pro Solutions - VideoLink provides comprehensive support as a premier BirdDog reseller, ensuring the best solutions for your BirdDog and NDI|HX needs.
