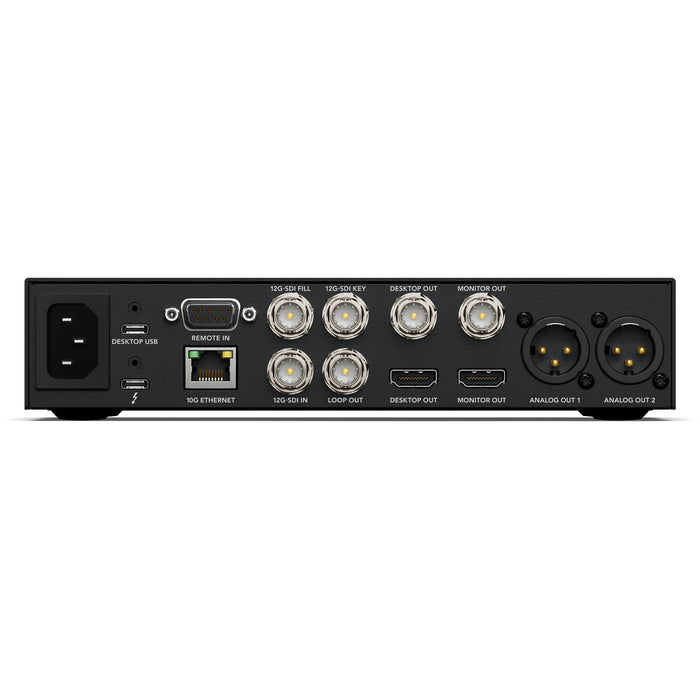

Dual 12G-SDI Outputs for fill and key outputs in graphics and compositing

12G-SDI Capture Input for high-quality video capture

10G Ethernet Connectivity for fast network storage access and power over Ethernet (PoE)

Independent Thunderbolt Connection for easy laptop integration and mobility

Full DeckLink API Support for compatibility with various video software

High-Resolution Video Support up to 2160p60 (Ultra HD) for advanced production needs

Dual 12G-SDI Outputs for fill and key outputs in graphics and compositing

12G-SDI Capture Input for high-quality video capture

10G Ethernet Connectivity for fast network storage access and power over Ethernet (PoE)

Independent Thunderbolt Connection for easy laptop integration and mobility

Full DeckLink API Support for compatibility with various video software

High-Resolution Video Support up to 2160p60 (Ultra HD) for advanced production needs

Specifications:

Video Resolutions Supported:

• 4096 x 2160 up to 60 fps
• 3840 x 2160 up to 60 fps
• 2048 x 1080p up to 60 fps
• 1920 x 1080p up to 60 fps
• 1920 x 1080i up to 60 fps
• 1280 x 720 up to 60 fps
• 720 x 576i at 50 fps
• 720 x 480i at 59.94 fps

Audio Output:

• Analog: 48 kHz / 24-Bit
• Embedded Audio: HDMI, LAN (RJ45), SDI, USB

Standards:

• HDCP Support: No
• HDR Support: Yes, Hybrid Log Gamma

Hardware Compatibility:

• OS Compatibility: Windows 10 to 11, macOS 13 or Later, Linux

Power Supply:

• Power Input: IEC C14 (100 to 240 VAC)

Physical Dimensions:

• Dimensions: 8.98 x 8.28 x 1.74 inches (22.81 x 21.03 x 4.42 cm)
• Weight: 2.87 lb (1.3 kg)

Environmental Conditions:

• Operating Temperature: 41 to 104°F (5 to 40°C) up to 90% Humidity
• Storage Temperature: -4 to 113°F (-20 to 45°C) up to 90% Humidity
