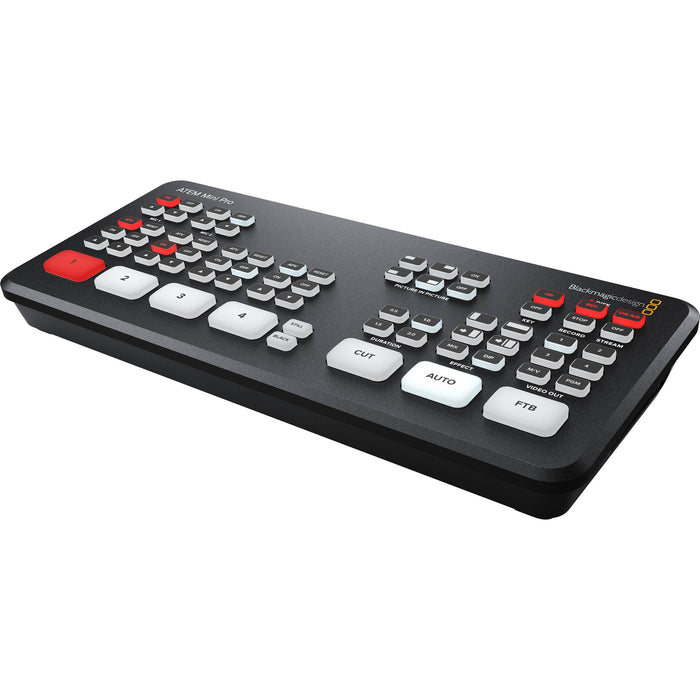

The Blackmagic Design ATEM Mini Pro (model SWATEMMINIBPR) is a compact and versatile live production switcher tailored for multi-camera streaming and professional presentations. Building upon the features of the original ATEM Mini, the Pro version introduces enhanced functionalities to meet the demands of live broadcasters and content creators.

Key Features:

• Four HDMI Inputs: Connect up to four high-definition video sources, such as cameras, computers, or gaming consoles, with support for various video formats and automatic standards conversion.
• Integrated Hardware Streaming Engine: Stream directly to platforms like YouTube, Facebook Live, and Twitch without needing additional software, thanks to the built-in hardware encoder.
• USB-C Connectivity: Utilize the USB-C port to record your live production directly to external drives in H.264 format or connect to a computer, where the switcher is recognized as a webcam for seamless integration with video conferencing applications.
• Multiview Monitoring: Monitor all four inputs, as well as program and preview outputs, on a single screen through the HDMI output, ensuring comprehensive oversight of your production.
• Advanced Audio Features: Incorporates a Fairlight audio mixer with EQ and dynamics, allowing for precise audio control across multiple channels.
• Professional Transitions and Effects: Access a variety of broadcast-quality transitions, including dissolves, wipes, and DVE effects, along with picture-in-picture capabilities and chroma keying for green screen applications.
• Remote Camera Control: When paired with Blackmagic Pocket Cinema Camera 6K or 4K models, the ATEM Mini Pro enables remote control of camera settings, including focus, iris, and color correction, directly from the switcher.

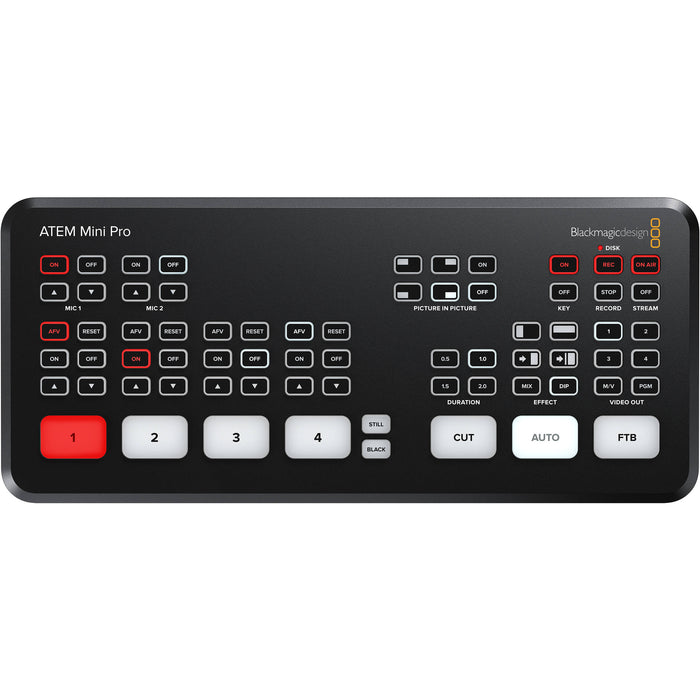

The ATEM Mini Pro is designed for ease of use, featuring an intuitive control panel with dedicated buttons for source selection, transitions, and settings adjustments. Its compact design makes it suitable for various environments, from small studios to on-location productions.

The Blackmagic Design ATEM Mini Pro (model SWATEMMINIBPR) is a compact and versatile live production switcher tailored for multi-camera streaming and professional presentations. Building upon the features of the original ATEM Mini, the Pro version introduces enhanced functionalities to meet the demands of live broadcasters and content creators.

Key Features:

• Four HDMI Inputs: Connect up to four high-definition video sources, such as cameras, computers, or gaming consoles, with support for various video formats and automatic standards conversion.
• Integrated Hardware Streaming Engine: Stream directly to platforms like YouTube, Facebook Live, and Twitch without needing additional software, thanks to the built-in hardware encoder.
• USB-C Connectivity: Utilize the USB-C port to record your live production directly to external drives in H.264 format or connect to a computer, where the switcher is recognized as a webcam for seamless integration with video conferencing applications.
• Multiview Monitoring: Monitor all four inputs, as well as program and preview outputs, on a single screen through the HDMI output, ensuring comprehensive oversight of your production.
• Advanced Audio Features: Incorporates a Fairlight audio mixer with EQ and dynamics, allowing for precise audio control across multiple channels.
• Professional Transitions and Effects: Access a variety of broadcast-quality transitions, including dissolves, wipes, and DVE effects, along with picture-in-picture capabilities and chroma keying for green screen applications.
• Remote Camera Control: When paired with Blackmagic Pocket Cinema Camera 6K or 4K models, the ATEM Mini Pro enables remote control of camera settings, including focus, iris, and color correction, directly from the switcher.

The ATEM Mini Pro is designed for ease of use, featuring an intuitive control panel with dedicated buttons for source selection, transitions, and settings adjustments. Its compact design makes it suitable for various environments, from small studios to on-location productions.

The Blackmagic Design ATEM Mini Pro (model SWATEMMINIBPR) is a compact live production switcher designed for multi-camera streaming and professional presentations. Below are its detailed specifications:

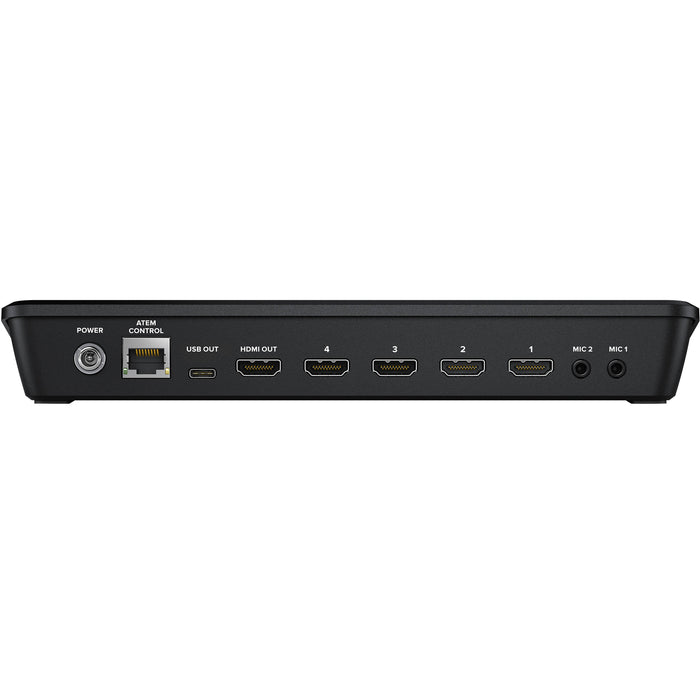

Connections:

• Video Inputs: 4 x HDMI Type A, 10-bit HD switchable, with 2-channel embedded audio.
• Video Outputs: 1 x HDMI program output.
• Audio Inputs: 2 x 3.5mm stereo mini jacks.
• Audio Outputs: Embedded audio only; no separate audio outputs.
• Ethernet: Supports 10/100/1000 BaseT for live streaming, software control, updates, and direct or network panel connection.
• USB Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam output, software control, updates, and panel connection.

Standards:

• HD Video Input Standards: 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080i50, 1080i59.94, 1080i60.
• HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
• Video Sampling: 4:2:2 YUV.
• Color Precision: 10-bit.
• Color Space: Rec 709.

Processing:

• Video Input Re-Synchronization: Available on all 4 HDMI inputs.
• Frame Rate and Format Converters: Available on all 4 HDMI inputs.

Audio Mixer:

• Mixer Configuration: 6-input x 2-channel mixer.
• Features: Selectable On/Off/Audio-Follow-Video per channel, separate gain control per channel, level and peak metering. Includes Fairlight audio enhancements: compressor, gate, limiter, 6 bands of parametric EQ, and master gain control.

Media Player:

• Quantity: 1.
• Channels: Fill and key for each media player.
• Still Image Capacity: 20 with fill and key.
• Supported Formats: PNG, TGA, BMP, GIF, JPEG, and TIFF.

Control:

• Control Panel: Built-in control panel; software control panel with camera control included; supports optional hardware panel.
• Control Panel Connection: Ethernet supports 10/100/1000 BaseT for direct connection between panel and chassis or via network; also supports direct USB-C connection; Ethernet or USB-C used for software updates.

Streaming:

• Direct Streaming: Supports direct live streaming over Ethernet using Real-Time Messaging Protocol (RTMP).

Recording:

• Direct Recording: 1 x USB-C 3.1 Gen 1 expansion port for external media to record a .mp4 H.264 file with AAC audio at the ATEM video standard.
• Media Format: Supports media formatted as ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Multi-View Monitoring:

• Multi-View: 1 x 10 views, including configurable program/preview, 4 HDMI inputs, media player, streaming status, recording status, and audio meters.
• Multi-View Video Standard: HD.

Power Requirements:

• Power Supply: 1 x External 12V power supply.
• Power Usage: 36W.

Physical Specifications:

• Dimensions: 9.35 x 4.07 x 1.38 inches (23.75 x 10.34 x 3.51 cm).
• Weight: 19.4 oz (550 g).

Environmental Specifications:

• Operating Temperature: 5° C to 40° C (41° - 104° F).
• Storage Temperature: -10° to 60° C (14° to 140° F).
• Relative Humidity: 0% to 90% non-condensing.

What's Included:

• ATEM Mini Pro.
• External 12V DC power supply with international socket adapters.
