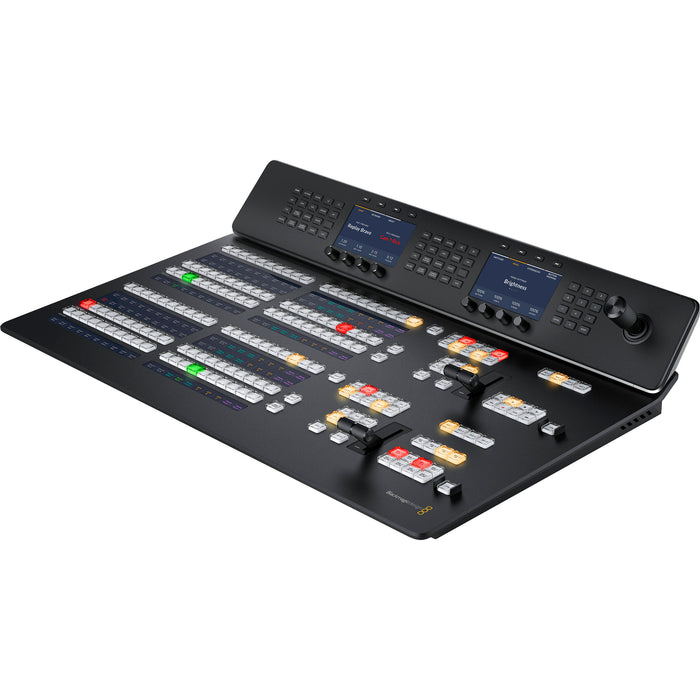

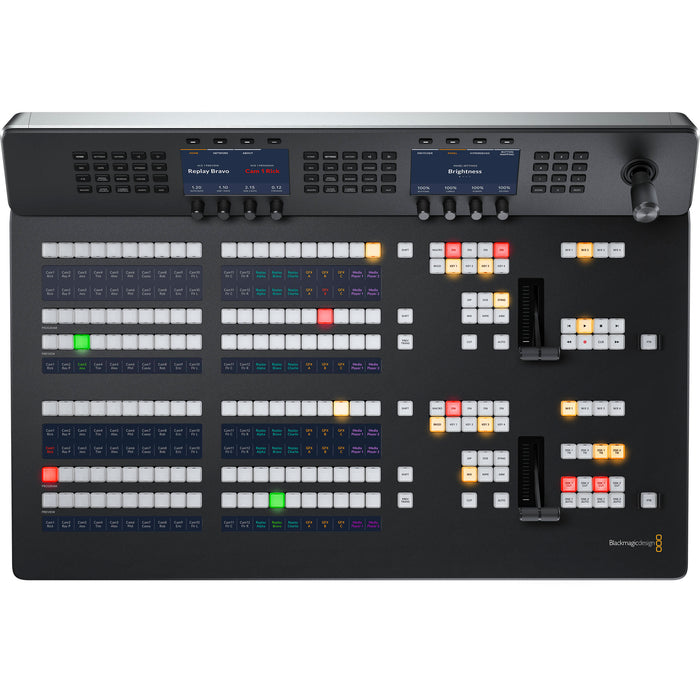

Blackmagic Design ATEM 2 M/E Advanced Panel 20 (SWPANELADV2ME20) is a professional broadcast control panel for live production. It features two M/E rows with 20 programmable input buttons per row, customizable LCD labeling, dedicated keyer controls, a 3-axis joystick for DVE control, and a T-bar fader for transitions. The panel includes multiple Ethernet ports with PoE support, dual power inputs, and a compact, durable design for rack-mounted use.

Blackmagic Design ATEM 2 M/E Advanced Panel 20

by Blackmagic Design
Availability:
In stock 3-5 days
$8,935.00 - $8,935.00
$8,935.00
$8,935.00 - $8,935.00
$8,935.00

SKU: SWPANELADV2ME20

Dual M/E Rows: Two rows of M/E with 20 input buttons per row, allowing for efficient management of multiple video sources.

System Control LCDs: Two independent system control LCDs, one for each row, providing intuitive access to switcher settings.

Custom Labeling: Independent LCDs for custom labeling of every row and button, enhancing workflow efficiency.

Dynamic Controls: Includes two fader bars, a 3-axis joystick, and a numeric keypad for comprehensive control over transitions and effects.

On-Air Indicators: Eight on-air indicators to monitor live broadcast status.

Transition Previews: Two transition previews with transition rate display for precise control over transitions.

Connectivity: Four RJ45 Ethernet ports supporting 10/100/1000 BASE-T with loop output for additional control panels or computers, and a USB Type-C port for firmware updates.

Redundant Power: Dual internal power supplies (100 - 240V AC) for enhanced reliability.

Physical Specifications: Dimensions of 28.54 x 19 x 6.53 inches (111 x 72.5 x 16.6 cm) and a weight of 24.25 lb (11 kg).

Dual M/E Rows: Two rows of M/E with 20 input buttons per row, allowing for efficient management of multiple video sources.

System Control LCDs: Two independent system control LCDs, one for each row, providing intuitive access to switcher settings.

Custom Labeling: Independent LCDs for custom labeling of every row and button, enhancing workflow efficiency.

Dynamic Controls: Includes two fader bars, a 3-axis joystick, and a numeric keypad for comprehensive control over transitions and effects.

On-Air Indicators: Eight on-air indicators to monitor live broadcast status.

Transition Previews: Two transition previews with transition rate display for precise control over transitions.

Connectivity: Four RJ45 Ethernet ports supporting 10/100/1000 BASE-T with loop output for additional control panels or computers, and a USB Type-C port for firmware updates.

Redundant Power: Dual internal power supplies (100 - 240V AC) for enhanced reliability.

Physical Specifications: Dimensions of 28.54 x 19 x 6.53 inches (111 x 72.5 x 16.6 cm) and a weight of 24.25 lb (11 kg).

Control Features:

  • Input Buttons: 40 programmable keys (20 per row) with tri-color LED indicators and 24-character LCD scribble strips for customizable labeling.
  • System Control: Two independent system control LCDs, one for each row, with user-customizable colors and labels.
  • Keyer Controls: Dedicated buttons for controlling up to four upstream and four downstream keyers.
  • M/E Rows: Buttons for controlling up to four M/E rows, enhancing flexibility in complex productions.
  • Dynamic Controls: Includes two fader bars, a 3-axis joystick for DVE control, and a numeric keypad.

Connectivity:

  • Ethernet Ports: Four 10/100/1000BASE-T Ethernet ports with loop output for additional control panels or computers.
  • USB-C Port: One USB-C port for firmware updates. bhphotovideo.com
  • Power Inputs: Dual IEC-14 inputs for AC power, providing redundancy for reliable operation.

Physical Specifications:

  • Dimensions: 28.54 x 19 x 6.53 inches (111 x 72.5 x 16.6 cm). bhphotovideo.com
  • Weight: 24.25 lbs (11 kg).

Environmental Conditions:

  • Operating Temperature: 32 to 104°F (0 to 40°C). soundpro.com
  • Storage Temperature: -4 to 140°F (-20 to 60°C). soundpro.com
  • Relative Humidity: Up to 95%.
