4K & HD Video Support: Supports both 4K Ultra HD and HD resolutions, making it perfect for high-quality live production.

Wide Range of Video Inputs: Includes 24 x 12G-SDI inputs, 1 x HDMI input, and 2 x fiber inputs, providing exceptional flexibility for connecting multiple video sources.

Advanced Video Mixing: Features 4 M/E (Mix Effects) buses, enabling complex video mixing and professional production setups.

Multiple Video Outputs: Provides 24 x 12G-SDI outputs and 2 x HDMI outputs, offering versatile options for distributing video feeds across various devices.

Built-in Media Pool: Allows easy storage and access to graphics, clips, and animations for smooth, dynamic live productions.

2D and 3D Transitions: Supports seamless 2D and 3D transition effects to enhance the visual experience during live events.

Multi-View Monitoring: Equipped with multi-screen preview capabilities, allowing you to monitor multiple video feeds simultaneously.

Audio Control: Embedded audio support for SDI and HDMI, and an audio delay feature to ensure synchronization with video signals.

Intuitive Front Panel: Offers a touchscreen interface with front-panel controls, providing an easy-to-use experience for live switching.

Remote Control Capability: Supports advanced remote control via Ethernet, USB, and third-party systems for flexible production workflows.

Tally System Integration: Built-in tally system for active camera indication, improving coordination and communication during live events.

Reliable & Robust Design: Engineered for professional broadcast environments, ensuring reliable performance during high-demand live productions.

4K & HD Video Support: Supports both 4K Ultra HD and HD resolutions, making it perfect for high-quality live production.

Wide Range of Video Inputs: Includes 24 x 12G-SDI inputs, 1 x HDMI input, and 2 x fiber inputs, providing exceptional flexibility for connecting multiple video sources.

Advanced Video Mixing: Features 4 M/E (Mix Effects) buses, enabling complex video mixing and professional production setups.

Multiple Video Outputs: Provides 24 x 12G-SDI outputs and 2 x HDMI outputs, offering versatile options for distributing video feeds across various devices.

Built-in Media Pool: Allows easy storage and access to graphics, clips, and animations for smooth, dynamic live productions.

2D and 3D Transitions: Supports seamless 2D and 3D transition effects to enhance the visual experience during live events.

Multi-View Monitoring: Equipped with multi-screen preview capabilities, allowing you to monitor multiple video feeds simultaneously.

Audio Control: Embedded audio support for SDI and HDMI, and an audio delay feature to ensure synchronization with video signals.

Intuitive Front Panel: Offers a touchscreen interface with front-panel controls, providing an easy-to-use experience for live switching.

Remote Control Capability: Supports advanced remote control via Ethernet, USB, and third-party systems for flexible production workflows.

Tally System Integration: Built-in tally system for active camera indication, improving coordination and communication during live events.

Reliable & Robust Design: Engineered for professional broadcast environments, ensuring reliable performance during high-demand live productions.

Model: SWATEMSCN22ME24K

Type: Live Production Switcher

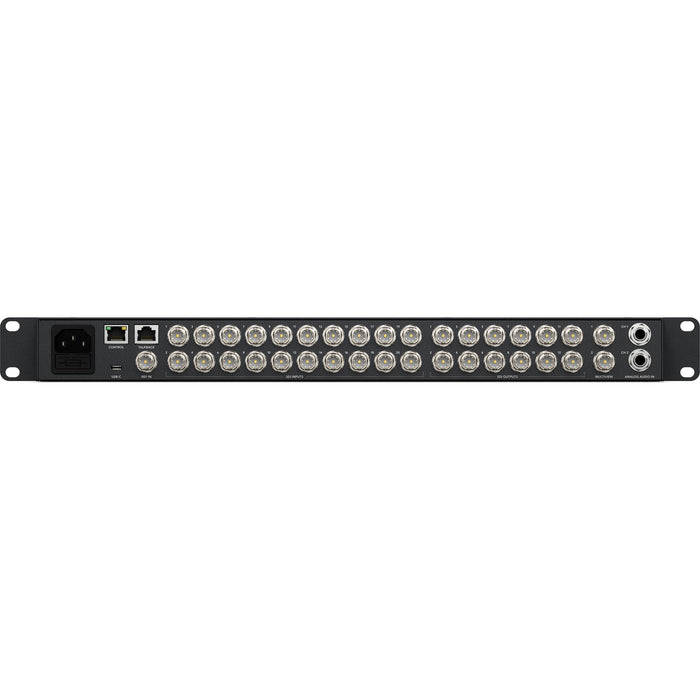

Video Inputs:
24 x 12G-SDI Inputs (supports up to 4K resolution)
1 x HDMI Input (supports 1080p and 4K)
2 x Fiber Inputs (for long-distance transmission)
1 x 3G-SDI Input (for lower resolutions)

Video Outputs:
24 x 12G-SDI Outputs
2 x HDMI Outputs
1 x Multi-view Output (via HDMI)
1 x Program Output (via SDI and HDMI)
1 x Clean Program Output (via SDI)

Resolution Support:
Up to 4K (Ultra HD) Resolution
1080p (HD) and 720p supported

Audio:
Supports Embedded Audio via SDI and HDMI
1 x 3.5mm Audio Input
1 x 3.5mm Audio Output
Audio Delay for synchronization

Switching Features:
4 M/E (Mix Effects) buses for advanced video mixing
Support for 2D and 3D transition effects
Built-in media pool for graphics, clips, and animations
Multi-screen preview with flexible layout options

Control Interface:

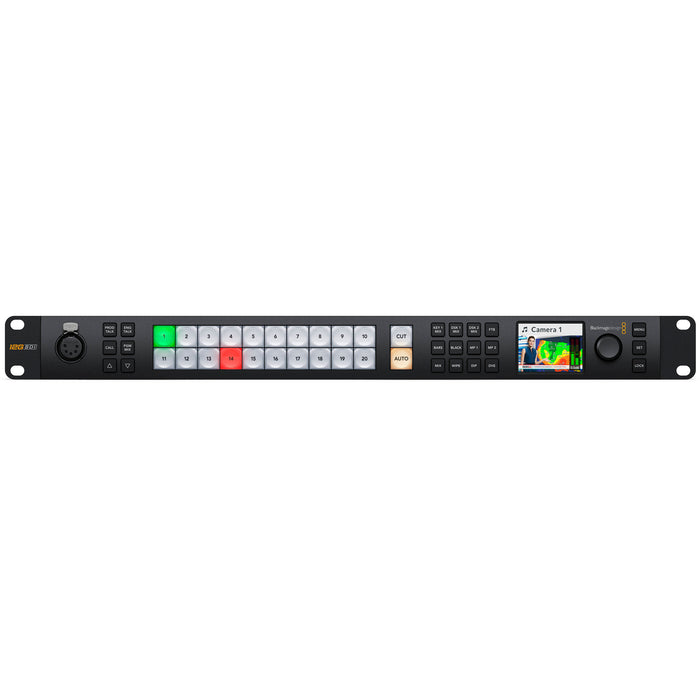

Intuitive front-panel controls with a touchscreen interface
Advanced remote control via Ethernet, USB, and third-party control systems

Power Supply:
100-240V AC input (Automatic Voltage Switching)
Power consumption: 150W

Dimensions:
Width: 19 inches (Rackmountable)
Depth: 15 inches
Height: 3.5 inches
Weight: 8 kg (17.6 lbs)

Networking:
1 x Ethernet Port for remote control and monitoring
2 x USB Ports for software updates and file transfers

Other Features:
Multi-channel audio monitoring and support
High-quality real-time video effects and transitions
Enhanced control for professional broadcasting workflows
Tally system and integration with other broadcast equipment

Warranty: 1-year manufacturer warranty
